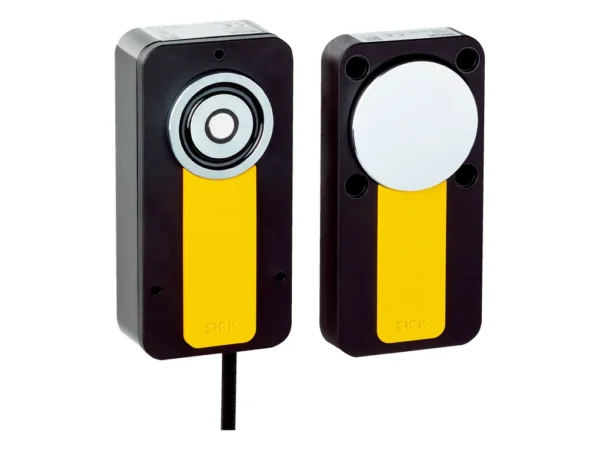

Home Emniyet Switchleri MLP1-SMUC0AC – 1117390 🔍 MLP1-SMUC0AC – 1117390 ✉ Teklif Al Teklif Al Stok kodu: 1117390 Kategoriler: Emniyet Switchleri Marka: SICK Açıklama Tecnichal data Features Sensor principle RFID Locking principle Power to lock Coding Uniquely coded Locking force Fmax 550 N (GS-ET-19) Locking force FZh 500 N (GS-ET-19) Retaining force 25 N Offset tolerance ≤ 5 mm Safe switch off distance Sar 35 mm For process protection only ✔ Safety-related parameters Safety integrity level SIL 3 (IEC 61508) Category Category 4 (EN ISO 13849) Performance level PL e (EN ISO 13849) PFHD (mean probability of a dangerous failure per hour) 15 * 10-9 TM (mission time) 20 years (EN ISO 13849) Type Type 4 (EN ISO 14119) Actuator coding level High coding level (EN ISO 14119) Safe state in the event of a fault At least one safety-related semiconductor output (OSSD) is in the OFF state. Functions Switching behavior of the OSSDs Actuator monitoring Safe series connection Direct (without diagnostics) Interfaces Connection type Cable with plug M12, 5-pin Cable with female connector, M12, 5-pin Length of cable 150 mm Long connecting cable ≤ 140 m Cable diameter 5.5 mm Conductor cross section 0.12 mm² Bend radius (with fixed installation) > 8 x cable diameter Bend radius (with moving cable) > 12 x cable diameter Cable material PVC Conductor material Copper Coupling nut material Zinc die-cast, nickel-plated Display elements LEDs Status display ✔ Electrical data Protection class III (IEC 61140) Contamination rating 3 (EN 60947-1) Classification according to cULus Class 2 Usage category DC-13 (IEC 60947-5-1) Rated insulation voltage Ui 32 V Rated impulse withstand voltage Uimp 1,500 V Supply voltage UV when an individual safety switch is connected Sensor 24 V DC (19.2 V DC … 28.8 V DC) Magnet 24 V DC (19.2 V DC … 28.8 V DC) Supply voltage UV when a cascade is connected Sensor 24 V DC (22.8 V DC … 28.8 V DC) Magnet 24 V DC (21.6 V DC … 28.8 V DC) Power consumption Locking active 350 mA Locking deactivated 50 mA Switching frequency ≤ 0.5 Hz Type of output Self-monitoring semiconductor outputs (OSSDs) Output current (OSSDs) ≤ 100 mA Diagnostic output ≤ 25 mA, short-circuit protected Cable capacitance 400 nF (for OUT A and OUT B) Response time 50 ms Release time 100 ms Risk time 100 ms Switch-on time 2.5 s Locking principle Power to lock Mechanical data Weight Switches (spare parts) 510 g Actuator 210 g Material Sensor housing Anodized aluminum Actuator housing Fiber-glass-reinforced PVC Anchor plate Nickel-plated steel Dimensions (W x H x D) Switches (spare parts) 120 mm x 60 mm x 38.5 mm Actuator 120 mm x 60 mm x 20.5 mm Offset tolerance Vertical ≤ 5 mm Horizontal ≤ 5 mm Aperture angle ≤ 3° Ambient data Enclosure rating IP67 (EN 60529) Ambient operating temperature –20 °C … +55 °C Storage temperature –25 °C … +70 °C Relative humidity 50 %, at 70 °C (IEC 60947-5-2) Vibration resistance 10 Hz … 55 Hz, 1 mm (IEC 60068-2-6) Shock resistance 30 g, 11 ms (EN 60068-2-27) EMC EN IEC 61326-3-1 EN IEC 60947-5-2 EN IEC 60947-5-3 Classifications ECLASS 5.0 27272603 ECLASS 5.1.4 27272603 ECLASS 6.0 27272603 ECLASS 6.2 27272603 ECLASS 7.0 27272603 ECLASS 8.0 27272603 ECLASS 8.1 27272603 ECLASS 9.0 27272603 ECLASS 10.0 27272603 ECLASS 11.0 27272603 ECLASS 12.0 27272603 ETIM 5.0 EC002593 ETIM 6.0 EC002593 ETIM 7.0 EC002593 ETIM 8.0 EC002593 UNSPSC 16.0901 39122205 İlgili ürünler RE11-SK – 1062121SICKEmniyet Switchleri ₺3.200,00 Ürüne Git RE23-SA05 – 1061726SICKEmniyet Switchleri ₺3.200,00 Ürüne Git STR1-SASM03P5 – 1069562SICKEmniyet Switchleri ₺3.200,00 Ürüne Git RE23-SA84 – 1062541SICKEmniyet Switchleri ₺3.200,00 Ürüne Git
Tecnichal data Features Sensor principle RFID Locking principle Power to lock Coding Uniquely coded Locking force Fmax 550 N (GS-ET-19) Locking force FZh 500 N (GS-ET-19) Retaining force 25 N Offset tolerance ≤ 5 mm Safe switch off distance Sar 35 mm For process protection only ✔ Safety-related parameters Safety integrity level SIL 3 (IEC 61508) Category Category 4 (EN ISO 13849) Performance level PL e (EN ISO 13849) PFHD (mean probability of a dangerous failure per hour) 15 * 10-9 TM (mission time) 20 years (EN ISO 13849) Type Type 4 (EN ISO 14119) Actuator coding level High coding level (EN ISO 14119) Safe state in the event of a fault At least one safety-related semiconductor output (OSSD) is in the OFF state. Functions Switching behavior of the OSSDs Actuator monitoring Safe series connection Direct (without diagnostics) Interfaces Connection type Cable with plug M12, 5-pin Cable with female connector, M12, 5-pin Length of cable 150 mm Long connecting cable ≤ 140 m Cable diameter 5.5 mm Conductor cross section 0.12 mm² Bend radius (with fixed installation) > 8 x cable diameter Bend radius (with moving cable) > 12 x cable diameter Cable material PVC Conductor material Copper Coupling nut material Zinc die-cast, nickel-plated Display elements LEDs Status display ✔ Electrical data Protection class III (IEC 61140) Contamination rating 3 (EN 60947-1) Classification according to cULus Class 2 Usage category DC-13 (IEC 60947-5-1) Rated insulation voltage Ui 32 V Rated impulse withstand voltage Uimp 1,500 V Supply voltage UV when an individual safety switch is connected Sensor 24 V DC (19.2 V DC … 28.8 V DC) Magnet 24 V DC (19.2 V DC … 28.8 V DC) Supply voltage UV when a cascade is connected Sensor 24 V DC (22.8 V DC … 28.8 V DC) Magnet 24 V DC (21.6 V DC … 28.8 V DC) Power consumption Locking active 350 mA Locking deactivated 50 mA Switching frequency ≤ 0.5 Hz Type of output Self-monitoring semiconductor outputs (OSSDs) Output current (OSSDs) ≤ 100 mA Diagnostic output ≤ 25 mA, short-circuit protected Cable capacitance 400 nF (for OUT A and OUT B) Response time 50 ms Release time 100 ms Risk time 100 ms Switch-on time 2.5 s Locking principle Power to lock Mechanical data Weight Switches (spare parts) 510 g Actuator 210 g Material Sensor housing Anodized aluminum Actuator housing Fiber-glass-reinforced PVC Anchor plate Nickel-plated steel Dimensions (W x H x D) Switches (spare parts) 120 mm x 60 mm x 38.5 mm Actuator 120 mm x 60 mm x 20.5 mm Offset tolerance Vertical ≤ 5 mm Horizontal ≤ 5 mm Aperture angle ≤ 3° Ambient data Enclosure rating IP67 (EN 60529) Ambient operating temperature –20 °C … +55 °C Storage temperature –25 °C … +70 °C Relative humidity 50 %, at 70 °C (IEC 60947-5-2) Vibration resistance 10 Hz … 55 Hz, 1 mm (IEC 60068-2-6) Shock resistance 30 g, 11 ms (EN 60068-2-27) EMC EN IEC 61326-3-1 EN IEC 60947-5-2 EN IEC 60947-5-3 Classifications ECLASS 5.0 27272603 ECLASS 5.1.4 27272603 ECLASS 6.0 27272603 ECLASS 6.2 27272603 ECLASS 7.0 27272603 ECLASS 8.0 27272603 ECLASS 8.1 27272603 ECLASS 9.0 27272603 ECLASS 10.0 27272603 ECLASS 11.0 27272603 ECLASS 12.0 27272603 ETIM 5.0 EC002593 ETIM 6.0 EC002593 ETIM 7.0 EC002593 ETIM 8.0 EC002593 UNSPSC 16.0901 39122205
