Name: SICK 1223288 | Işık Perdesi | Royal Endüstriyel
Brand: SICK
SKU: 1223288
Price: 18000.00 TRY
Availability: InStock

Tecnichal data

Features

Device version

Prime – Standard functionality

Sensor principle

Sender/receiver

Minimum detectable object (MDO)

34 mm

Beam separation

30 mm

Type of synchronization

Optical

Number of beams

Detection height

1,170 mm

Software features (default)
Q_A1	Height measurement (first beam)/FBB
Q_A2	Height measurement (last beam)/LBB
Q₁	Presence detection
inverted	—
Teach	Cross beam

Operating mode
Standard	✔

Function
Cross beam	✔
Beam blanking	✔

Applications
Switching output	Object detection Object recognition Height classification
Data interface	Object detection Object height measurement

Included with delivery

1 × sender

1 × receiver

4/6 x QuickFix brackets (6 x QuickFix brackets for monitoring heights above 2 m)

1 × Quick Start Guide

Mechanics/electronics

Light source	LED, Infrared light
Wave length	850 nm
Supply voltage V_s	DC 19.2 V … 28.8 V
Power consumption sender	57 mA
Power consumption receiver	128 mA
Ripple	< 5 V_pp
Output current I_max.	100 mA
Output load, capacitive	100 nF
Output load, Inductive	1 H
Initialization time	< 1 s
Switching output	Push-pull: PNP/NPN
Connection type	Male connector M12, 5-pin, 0.22 m
Housing material	Aluminum
Indication	LED
Enclosure rating	IP65, IP67
Circuit protection	U_V connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression
Protection class	III
Weight	2.649 kg
Front screen	PMMA
Option	None
UL File No.	NRKH.E181493

Performance

Maximum range	12 m
Minimum range	≥ 0.5 m
Operating range	8.5 m
Response time	6.2 ms

Communication interface

IO-Link	✔ , IO-Link V1.1
Data transmission rate	38,4 kbit/s (COM2)
Maximum cable length	20 m
Cycle time	6 ms
VendorID	26
DeviceID HEX	800067
DeviceID DEC	8388711
Process data length	6 Byte (TYPE_2_V)

Analog

✔ , Current

Inputs/outputs

2 x analog + 1 x Q (IO-Link)

Analog output (current)

4 mA … 20 mA

Analog output	Q_A1, Q_A2
Number	2
Type	Current output
Current	4 mA … 20 mA

Digital output	Q₁
Number	1

Ambient data

Shock resistance	Continuous shocks 10 g, 16 ms, 1000 shocks Single shocks 15 g, 11 ms 3 per axle
Vibration resistance	Sinusoidal oscillation 10-150 Hz 5 g
EMC	EN 60947-5-2
Ambient light immunity	Direct: 12,000 lx Indirect: 50,000 lx
Ambient operating temperature	–30 °C … +55 °C
Ambient temperature, storage	–40 °C … +70 °C

Smart Task

Smart Task name

Base logics

Classifications

ECLASS 5.0	27270910
ECLASS 5.1.4	27270910
ECLASS 6.0	27270910
ECLASS 6.2	27270910
ECLASS 7.0	27270910
ECLASS 8.0	27270910
ECLASS 8.1	27270910
ECLASS 9.0	27270910
ECLASS 10.0	27270910
ECLASS 11.0	27270910
ECLASS 12.0	27270910
ETIM 5.0	EC002549
ETIM 6.0	EC002549
ETIM 7.0	EC002549
ETIM 8.0	EC002549
UNSPSC 16.0901	39121528

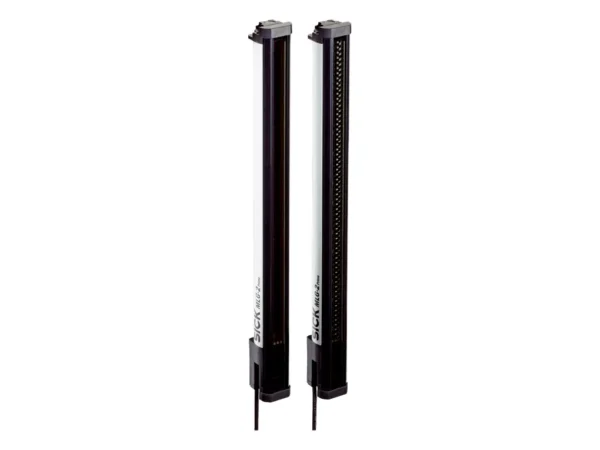

MLG30S-1170A10802 – 1223288
