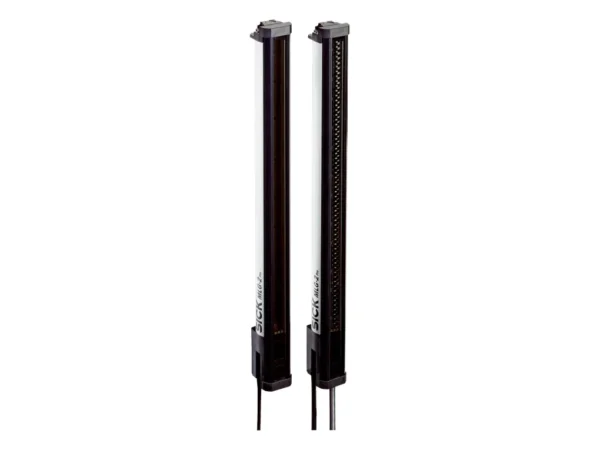

Name: SICK 1213514 | Işık Perdesi | Royal Endüstriyel
Brand: SICK
SKU: 1213514
Price: 18000.00 TRY
Availability: InStock

Tecnichal data

Features

Device version

Pro – Advanced functionality

Sensor principle

Sender/receiver

Minimum detectable object (MDO)

10 mm, 14 mm

Beam separation

10 mm

Type of synchronization

Cable

Number of beams

315

Detection height

3,140 mm

Software features (default)
Interface RS-485	System status, virtual outputs, number of broken beams, height control (last beam)/LBB, height control (first beam)/FBB, oudside dimension, inside dimension
Baud rate RS-485	9.6 kbit/s
Q₁	Presence detection
Q2 / IN	Teach input
Teach	Standard mode

Operating mode
Standard	✔
Transparent	✔
Dust- and sunlight-resistant	✔

Function
Cross beam	✔
Beam blanking	✔
High-speed scan	✔
High measurement accuracy	✔

Applications
Switching output	Object recognition/object width Object recognition Height classification Hole detection/hole size Outside dimension/inside dimension Object position Hole position Zone definition
Data interface	Object detection Hole detection Object height measurement Measurement of external dimension Measurement of inside dimension Measurement of object position Measurement of hole position

Included with delivery

1 × sender

1 × receiver

4/6 x QuickFix brackets (6 x QuickFix brackets for monitoring heights above 2 m)

1 × Quick Start Guide

Mechanics/electronics

Light source	LED, Infrared light
Wave length	850 nm
Supply voltage V_s	DC 19.2 V … 28.8 V
Power consumption sender	70.75 mA
Power consumption receiver	183 mA
Ripple	< 5 V_pp
Output current I_max.	100 mA
Output load, capacitive	100 nF
Output load, Inductive	1 H
Initialization time	< 1 s
Switching output	Push-pull: PNP/NPN
Connection type	Male connector M12, 5-pin, 0.22 m Male connector M12, 8-pin, 0.27 m M12 female connector, 4-pin, D-coded, 0.19 m
Housing material	Aluminum
Indication	LED
Enclosure rating	IP65, IP67
Circuit protection	U_V connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression
Protection class	III
Weight	6.549 kg
Front screen	PMMA
Option	None
UL File No.	NRKH.E181493

Performance

Maximum range	7 m
Minimum range	≥ 0 m
Operating range	5 m
Response time	25.6 ms

Communication interface

IO-Link	✔ , IO-Link V1.1
Data transmission rate	230,4 kbit/s (COM3)
Maximum cable length	20 m
Cycle time	2.3 ms
VendorID	26
DeviceID HEX	800068
DeviceID DEC	8388712
Process data length	32 Byte (TYPE_2_V)

Serial	✔ , RS-485
Data transmission rate	1.2 kbit/s …921.6 kbit/s

Inputs/outputs

RS-485 + 2 x Q (IO-Link)

Digital output	Q₁, Q₂
Number	2

Digital input	In₁
Number	1

Ambient data

Shock resistance	Continuous shocks 10 g, 16 ms, 1000 shocks Single shocks 15 g, 11 ms 3 per axle
Vibration resistance	Sinusoidal oscillation 10-150 Hz 5 g
EMC	EN 60947-5-2
Ambient light immunity	Direct: 150,000 lx Indirect: 200,000 lx
Ambient operating temperature	–30 °C … +55 °C
Ambient temperature, storage	–40 °C … +70 °C

Smart Task

Smart Task name

Base logics

Classifications

ECLASS 5.0	27270910
ECLASS 5.1.4	27270910
ECLASS 6.0	27270910
ECLASS 6.2	27270910
ECLASS 7.0	27270910
ECLASS 8.0	27270910
ECLASS 8.1	27270910
ECLASS 9.0	27270910
ECLASS 10.0	27270910
ECLASS 11.0	27270910
ECLASS 12.0	27270910
ETIM 5.0	EC002549
ETIM 6.0	EC002549
ETIM 7.0	EC002549
ETIM 8.0	EC002549
UNSPSC 16.0901	39121528
