Name: SICK 1115217 | Işık Perdesi | Royal Endüstriyel
Brand: SICK
SKU: 1115217
Price: 18000.00 TRY
Availability: InStock

Tecnichal data

Features

Device version

Web guiding

Sensor principle

Sender/receiver

Minimum object length

4 mm

Beam separation

5 mm

Resolution

0.1 mm

Cycle time

32 µs per beam

Repeatability

6 µm

Accuracy

± 0.3 mm

Type of synchronization

Cable

Number of beams

180

Total measuring field width

1,945 mm

Measuring field width detailed
Measuring field width (connection side)	445 mm
Blind zone (medium range)	1,055 mm
Measuring field width (head side)	445 mm

Software features (default)
Q₁	Alarm, general
Application	Standard mode

Included with delivery

1 × sender

1 × receiver

1 x Fieldbus module

4/6 x QuickFix brackets (6 x QuickFix brackets for monitoring heights above 2 m)

1 × Quick Start Guide

Mechanics/electronics

Light source	LED, Infrared light
Wave length	850 nm
Supply voltage V_s	DC 19.2 V … 28.8 V
Power consumption sender	64 mA
Power consumption receiver	156 mA
Fieldbus module current consumption	115 mA
Ripple	< 5 V_pp
Output current I_max.	100 mA
Output load, capacitive	100 nF
Output load, Inductive	1 H
Initialization time	< 1 s
Switching output	Push-pull: PNP/NPN
Dimensions (W x H x D)	34 mm x 2,029.4 mm x 30.6 mm
Connection type	Male connector M12, 5-pin, 0.22 m Connector M12, 12-pin, 0.27 m
Housing material	Aluminum
Indication	LED
Enclosure rating	IP65, IP67
Circuit protection	U_V connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression
Protection class	III
Weight	4.159 kg
Front screen	PMMA
Option	None
UL File No.	NRKH.E181493

Performance

Maximum range	3.5 m
Minimum range	≥ 0.2 m
Operating range	2.5 m
Response time	36.7 ms

Communication interface

PROFINET

✔

Digital output	Q₁
Number	1

Ambient data

Shock resistance	Continuous shocks 10 g, 16 ms, 1000 shocks Single shocks 15 g, 11 ms 3 per axle
Vibration resistance	Sinusoidal oscillation 10-150 Hz 5 g
Ambient light immunity	100,000 lx
Ambient operating temperature	–30 °C … +55 °C
Ambient temperature, storage	–40 °C … +70 °C

Classifications

ECLASS 5.0	27270910
ECLASS 5.1.4	27270910
ECLASS 6.0	27270910
ECLASS 6.2	27270910
ECLASS 7.0	27270910
ECLASS 8.0	27270910
ECLASS 8.1	27270910
ECLASS 9.0	27270910
ECLASS 10.0	27270910
ECLASS 11.0	27270910
ECLASS 12.0	27270910
ETIM 5.0	EC002549
ETIM 6.0	EC002549
ETIM 7.0	EC002549
ETIM 8.0	EC002549
UNSPSC 16.0901	39121528

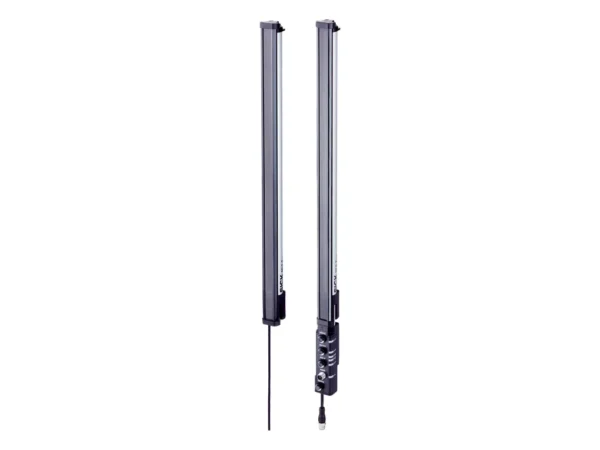

MLG05W-0373N12501 – 1115217
