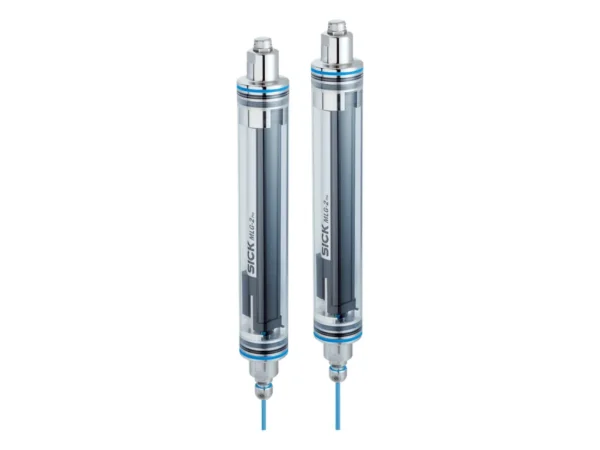

Name: SICK 1116031 | Işık Perdesi | Royal Endüstriyel
Brand: SICK
SKU: 1116031
Price: 18000.00 TRY
Availability: InStock

Tecnichal data

Features

Device version

Pro – Advanced functionality

Sensor principle

Sender/receiver

Minimum detectable object (MDO)

5 mm, 9 mm

Beam separation

5 mm

Type of synchronization

Cable

Number of beams

Detection height

295 mm

Applications
Switching output	Object recognition/object width Object recognition Height classification Hole detection/hole size Outside dimension/inside dimension Object position Hole position Zone definition
Data interface	Object detection Hole detection Object height measurement Measurement of external dimension Measurement of inside dimension Measurement of object position Measurement of hole position

Included with delivery

1 × sender (in IP69K protective pipes)

1 × receiver (in IP69K protective pipes)

1 x IP69K mounting instructions

1 × Quick Start Guide

Mechanics/electronics

Light source	LED, Infrared light
Wave length	850 nm
Supply voltage V_s	DC 19.2 V … 28.8 V
Power consumption sender	58 mA
Power consumption receiver	132 mA
Ripple	< 5 V_pp
Output current I_max.	100 mA
Output load, capacitive	100 nF
Output load, Inductive	1 H
Initialization time	< 1 s
Switching output	Push-pull: PNP/NPN
Connection type	Male connector M12, 5-pin, 0.39 m Male connector M12, 8-pin, 0.39 m
Housing material	Aluminum (light grid) PMMA Plexiglas XT Food Contact DoC (protective pipe) Polypropylene, stainless steel 1.4404 (cable) VA 1.4305 (pressure compensation element) Stainless steel 1.4404 (end caps) Stainless steel V4A 1.4404 DIN EN 1672-2 (cable gland)
Indication	LED
Enclosure rating	IP69K
Circuit protection	U_V connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression
Protection class	III
Weight	1.16 kg
Option	Protective housing IP69K
UL File No.	NRKH.E181493

Performance

Communication interface

Inputs/outputs

4 x Q (IO-Link)

Digital output	Q₁ … Q₄
Number	4

Digital input	In₁, In₂
Number	2

Ambient data

Shock resistance	Continuous shocks 10 g, 16 ms, 1000 shocks Single shocks 15 g, 11 ms 3 per axle
Vibration resistance	Sinusoidal oscillation 10-150 Hz 5 g
EMC	EN 60947-5-2
Ambient light immunity	Direct: 150,000 lx Indirect: 200,000 lx
Ambient operating temperature	–20 °C … +55 °C
Ambient temperature, storage	–40 °C … +70 °C

Smart Task

Smart Task name

Base logics

Classifications

MLG05A-0295R50501 – 1116031
