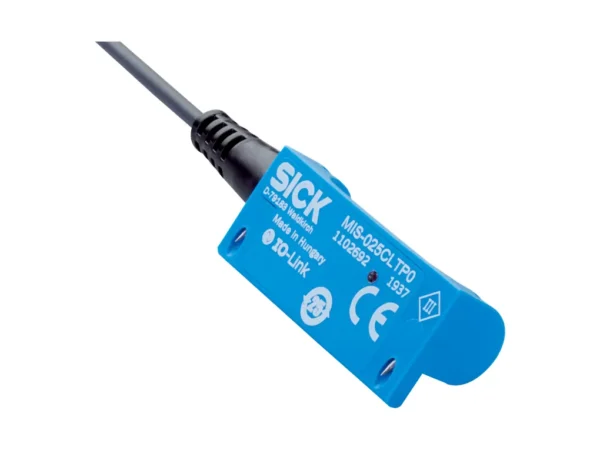

Home Diğer (Montaj / Aksesuar) MIS-025CLTP0 – 1102692 🔍 MIS-025CLTP0 – 1102692 ✉ Teklif Al Teklif Al Stok kodu: 1102692 Kategoriler: Diğer (Montaj / Aksesuar) Marka: SICK Açıklama Tecnichal data Features Product category Device for reading magnetic-coded tags from SICK Measurement principle Magnetic Scanning range 0 mm … 3 mm, Distance between sensor and tag Working range Max. radial displacement between sensor and tag ± 3 mm Max. axial displacement between sensor and tag Typ. 1 mm Max. rotational deviation between sensor and tag ± 10 mm, Equal to 13° Mechanics/electronics Connection type 1 x Cable with M8 male connector, 4-pin, 0.3 m Connection type Detail Deep-freeze property Do not bend below 0 °C Conductor size 0.08 mm² Cable diameter Ø 2.6 mm Bending radius With fixed installation > 5 x cable diameter, for flexible use > 10 x cable diameter Cable outlet Axial Supply voltage 12 V DC … 30 V DC Housing color Light blue (RAL 9002) Enclosure rating IP67 (EN 60529) Protection class III (IEC 61140:2016-1) Weight 61 g Dimensions (L x W x H) 40.6 mm x 12.2 mm x 16.8 mm Safety-related parameters MTTFD 244 years DCavg 0% TM (mission time) 20 years Performance Readable code structures Magnetic-coded tags Overrun speed Radial ≤ 2 m/s Axial ≤ 0.2 m/s Detectable object shape Magnetic-coded tags from SICK Number of different magnetic-coded tags 15 Sampling rate 6 ms Repeatability ≤ 0.5 mm Interfaces IO-Link ✔ Function Parameterization, Tag number output via process datum Analog output Current 4 mA … 20 mA Voltage 0 V DC … 10 V DC Optical indicators 4 LEDs (ON, Tag detected, IO-Link operation, Output function (current/voltage)) Ambient data Electromagnetic compatibility (EMC) EN 60947-5-2 7 Vibration resistance IEC 60068-2-6:2007 Shock resistance IEC 60068-2-27:2008 Ambient operating temperature –20 °C … +70 °C Stray-field immunity of the tag ≤ 85 mT Classifications eCl@ss 5.0 27280301 eCl@ss 5.1.4 27280301 eCl@ss 6.0 27280390 eCl@ss 6.2 27280390 eCl@ss 7.0 27280390 eCl@ss 8.0 27280390 eCl@ss 8.1 27280390 eCl@ss 9.0 27280390 eCl@ss 10.0 27280390 eCl@ss 11.0 27280390 eCl@ss 12.0 27280300 İlgili ürünler IE-SFP/1250-ED MM850-LC – 808-38201AdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git IE-SFP/1250-ED SSLX-SM1550/PLUS-LC – 808-38724AdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git SFP MODULE 1000BASE-SX, MM 550M – SFP-1000SX-M-550M-TAdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git 100Base-T RJ45 SFP Module w/Wide Temp – SFP-FTX-RJ45I-AEAdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git
Tecnichal data Features Product category Device for reading magnetic-coded tags from SICK Measurement principle Magnetic Scanning range 0 mm … 3 mm, Distance between sensor and tag Working range Max. radial displacement between sensor and tag ± 3 mm Max. axial displacement between sensor and tag Typ. 1 mm Max. rotational deviation between sensor and tag ± 10 mm, Equal to 13° Mechanics/electronics Connection type 1 x Cable with M8 male connector, 4-pin, 0.3 m Connection type Detail Deep-freeze property Do not bend below 0 °C Conductor size 0.08 mm² Cable diameter Ø 2.6 mm Bending radius With fixed installation > 5 x cable diameter, for flexible use > 10 x cable diameter Cable outlet Axial Supply voltage 12 V DC … 30 V DC Housing color Light blue (RAL 9002) Enclosure rating IP67 (EN 60529) Protection class III (IEC 61140:2016-1) Weight 61 g Dimensions (L x W x H) 40.6 mm x 12.2 mm x 16.8 mm Safety-related parameters MTTFD 244 years DCavg 0% TM (mission time) 20 years Performance Readable code structures Magnetic-coded tags Overrun speed Radial ≤ 2 m/s Axial ≤ 0.2 m/s Detectable object shape Magnetic-coded tags from SICK Number of different magnetic-coded tags 15 Sampling rate 6 ms Repeatability ≤ 0.5 mm Interfaces IO-Link ✔ Function Parameterization, Tag number output via process datum Analog output Current 4 mA … 20 mA Voltage 0 V DC … 10 V DC Optical indicators 4 LEDs (ON, Tag detected, IO-Link operation, Output function (current/voltage)) Ambient data Electromagnetic compatibility (EMC) EN 60947-5-2 7 Vibration resistance IEC 60068-2-6:2007 Shock resistance IEC 60068-2-27:2008 Ambient operating temperature –20 °C … +70 °C Stray-field immunity of the tag ≤ 85 mT Classifications eCl@ss 5.0 27280301 eCl@ss 5.1.4 27280301 eCl@ss 6.0 27280390 eCl@ss 6.2 27280390 eCl@ss 7.0 27280390 eCl@ss 8.0 27280390 eCl@ss 8.1 27280390 eCl@ss 9.0 27280390 eCl@ss 10.0 27280390 eCl@ss 11.0 27280390 eCl@ss 12.0 27280300
