Name: SICK 1102626 | Lazer Tarayıcılar | Royal Endüstriyel
Brand: SICK
SKU: 1102626
Price: 45000.00 TRY
Availability: InStock

Tecnichal data

Features

Sub product family	microScan3 Pro – EtherNet/IP
Model	Sensor including system plug (pre-mounted at the rear)
Application	Indoor
Protective field range	9 m
Warning field range	64 m
Collision protection field range	19 m (on reference target)
Number of simultaneously monitored fields	≤ 4
Number of fields	128
Number of monitoring cases	128
Scanning angle	275°
Resolution (can be configured)	30 mm 40 mm 50 mm 60 mm 70 mm 150 mm 200 mm
Angular resolution	0.1°
Response time	≥ 115 ms
Protective field supplement	100 mm

Safety-related parameters

Type	Type 3 (IEC 61496)
Safety integrity level	SIL 2 (IEC 61508)
Category	Category 3 (EN ISO 13849)
Performance level	PL d (EN ISO 13849)
PFH_D (mean probability of a dangerous failure per hour)	8.0 x 10^-8
T_M (mission time)	20 years (EN ISO 13849)
Safe state in the event of a fault	The safety outputs via the network are logic 0.

Functions

Restart interlock	✔
Multiple sampling	✔
Monitoring case switching	✔
Simultaneous monitoring	✔
Static protective field switching	✔
Collision protection field	✔
Safe contour detection	✔
Contour as a reference	✔
Integrated configuration memory	✔
Measured data output	Via Ethernet

Interfaces

Connection type
Voltage supply	1 x male connector, M12, 4-pin, A-coded
Fieldbus, industrial network	2 x M12 female connectors, 4-pin, D-coded

Configuration method

PC with Safety Designer (Configuration and Diagnostic Software)

Configuration and diagnostics interface

USB 2.0, Mini-USB, Ethernet

Data interface
Services	EtherNet/IP™ CIP Safety™
	CoLa 2 (configuration and diagnostics using Safety Designer)
	Data output
	DHCP
	SNMP
	SNTP (client and server)

Fieldbus, industrial network	EtherNet/IP™
Supported protocol versions	Common Industrial Protocol: The CIP Networks Library Volume 1, Edition 3.20
	EtherNet/IP™: The CIP Networks Library Volume 2, Edition 1.21
	CIP Safety™: The CIP Networks Library Volume 5, Edition 2.13
Topology support	DLR (Device Level Ring)

Display elements

Graphic color display, LEDs

Electrical data

Mechanical data

Dimensions (W x H x D)	112 mm x 150.7 mm x 111.1 mm (without system plug)
Weight	1.45 kg
Housing material	Aluminum
Housing color	RAL 1021 (yellow), RAL 9005 (black)
Optics cover material	Polycarbonate
Optics cover surface finish	Outside with scratch-resistant coating

Ambient data

Enclosure rating

IP65 (IEC 60529)

Ambient light immunity

≤ 3,000 lx (IEC 61496-3)

Ambient operating temperature

–10 °C … +50 °C

Storage temperature

–25 °C … +70 °C

EMC

IEC 61496-1, IEC 61000-6-2, IEC 61000-6-4

Other information

Type of light	Pulsed laser diode
Wave length	845 nm
Detectable remission factor	1.8% to several 1000%
Laser class	1M (21 CFR 1040.10 and 1040.11, IEC 60825-1)

Classifications

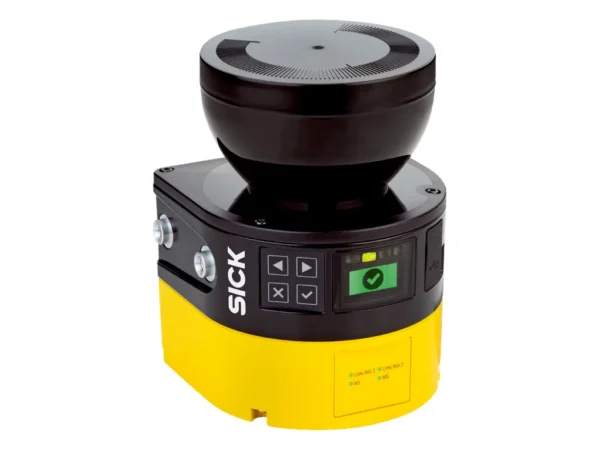

MICS3-CBAZ90IZ1P03 – 1102626
