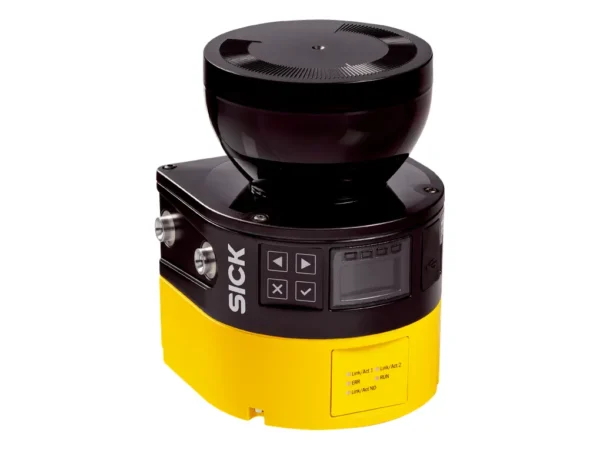

Name: SICK 1104317 | Lazer Tarayıcılar | Royal Endüstriyel
Brand: SICK
SKU: 1104317
Price: 45000.00 TRY
Availability: InStock

Tecnichal data

Features

Sub product family	microScan3 Pro – EtherCAT
Model	Sensor without system plug
Application	Indoor
Protective field range	5.5 m
Warning field range	40 m
Number of simultaneously monitored fields	≤ 8
Number of fields	128
Number of monitoring cases	128
Scanning angle	275°
Resolution (can be configured)	30 mm 40 mm 50 mm 70 mm 150 mm 200 mm
Angular resolution	0.39°
Response time	≥ 95 ms
Protective field supplement	65 mm

Safety-related parameters

Type	Type 3 (IEC 61496)
Safety integrity level	SIL 2 (IEC 61508)
Category	Category 3 (EN ISO 13849)
Performance level	PL d (EN ISO 13849)
PFH_D (mean probability of a dangerous failure per hour)	8.0 x 10^-8
T_M (mission time)	20 years (EN ISO 13849)
Safe state in the event of a fault	The safety outputs via the network are logic 0.

Functions

Restart interlock	✔
Multiple sampling	✔
Monitoring case switching	✔
Simultaneous monitoring	✔
Static protective field switching	✔
Safe contour detection	✔
Contour as a reference	✔
Integrated configuration memory	✔
Measured data output	Via Ethernet

Interfaces

Connection type
Voltage supply	1 x male connector, M12, 4-pin, A-coded
Data interface	1 x M12 female connectors, 4-pin, D-coded
Fieldbus, industrial network	2 x M12 female connectors, 4-pin, D-coded

Configuration method

PC with Safety Designer (Configuration and Diagnostic Software)

Configuration and diagnostics interface

USB 2.0, Mini-USB, Ethernet

Data interface
Type of data interface	Ethernet for data output, configuration and diagnostics (XF1, XF3)
Port properties	100Base-TX
	Auto-negotiation
	Auto-crossover (MDIX)
	Auto-polarity
Services	Configuration and diagnostics using Safety Designer
	Data output
	Time synchronization via SNTP

Fieldbus, industrial network	EtherCAT^®
Protocol	FSoE (Safety over EtherCAT®)
Cycle time	≥ 500 µs
Port properties	XF1: EtherCAT IN
	XF2: EtherCAT OUT
Diagnostics	Process data objects (PDOs)
	Service data objects (SDOs)
Additional services	Ethernet over EtherCAT (EoE) for configuration and diagnostics using Safety Designer
	CAN application protocol over EtherCAT (CoE)

Display elements

Graphic color display, LEDs

Electrical data

Mechanical data

Dimensions (W x H x D)	112 mm x 150.7 mm x 111.1 mm
Housing material	Aluminum
Housing color	RAL 1021 (yellow), RAL 9005 (black)
Optics cover material	Polycarbonate
Optics cover surface finish	Outside with scratch-resistant coating

Ambient data

Enclosure rating

IP65 (IEC 60529)

Ambient light immunity

≤ 3,000 lx (IEC 61496-3)

Ambient operating temperature

–10 °C … +50 °C

Storage temperature

–25 °C … +70 °C

EMC

IEC 61496-1, IEC 61000-6-2, IEC 61000-6-4

Other information

Type of light	Pulsed laser diode
Wave length	845 nm
Detectable remission factor	1.8% to several 1000%
Laser class	1M (21 CFR 1040.10 and 1040.11, IEC 60825-1)

Classifications

MICS3-CBAZ55EN1 – 1104317
