| Features |
| Sub product family |

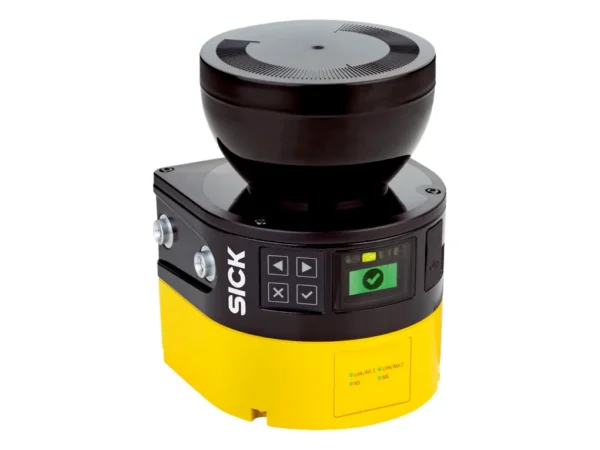

microScan3 Pro – EFI-pro |
| Model |
Sensor including system plug (pre-mounted on the underside) |
| Application |
Indoor |
| Protective field range |
4 m |
| Warning field range |
40 m |
| Number of simultaneously monitored fields |
≤ 8 |
| Number of fields |
128 |
| Number of monitoring cases |
128 |
| Scanning angle |
275° |
| Resolution (can be configured) |
30 mm
40 mm
50 mm
70 mm
150 mm
200 mm
|
| Angular resolution |
0.39° |
| Response time |
≥ 95 ms |
| Protective field supplement |
65 mm |
|
| Safety-related parameters |
| Type |
Type 3 (IEC 61496) |
| Safety integrity level |
SIL 2 (IEC 61508) |
| Category |
Category 3 (EN ISO 13849) |
| Performance level |
PL d (EN ISO 13849) |
| PFHD (mean probability of a dangerous failure per hour) |
8.0 x 10-8 |
| TM (mission time) |
20 years (EN ISO 13849) |
| Safe state in the event of a fault |
The safety outputs via the network are logic 0. |
|
| Functions |
| Restart interlock |
✔ |
| Multiple sampling |
✔ |
| Monitoring case switching |
✔ |
| Simultaneous monitoring |
✔ |
| Static protective field switching |
✔ |
| Safe contour detection |
✔ |
| Contour as a reference |
✔ |
| Integrated configuration memory |
✔ |
| Measured data output |
Via Ethernet |
| Safe SICK device communication via EFI-pro |
✔ |
|
| Interfaces |
| Connection type |
|
| Voltage supply |
1 x male connector, M12, 4-pin, A-coded |
| Fieldbus, industrial network |
2 x M12 female connectors, 4-pin, D-coded |
|
| Outputs |
|
| OSSD pairs |
0 |
| Safety outputs via network |
8 |
|
| Configuration method |
PC with Safety Designer (Configuration and Diagnostic Software) |
| Configuration and diagnostics interface |
USB 2.0, Mini-USB, Ethernet |
|
| Data interface |
|
| Services |
EtherNet/IP™ CIP Safety™ |
|
CoLa 2 (configuration and diagnostics using Safety Designer) |
|
Data output |
|
DHCP |
|
SNMP |
|
SNTP (client and server) |
|
| Fieldbus, industrial network |
EFI-pro |
| RPI (requested packet interval) |
5 ms … 1,000 ms, multiple of 5 ms |
|
| Display elements |
Graphic color display, LEDs |
|
| Electrical data |
| Protection class |
III (EN 61140) |
| Supply voltage Vs |
24 V DC (16.8 V DC … 30 V DC) |
| Power consumption typical |
7.2 W |
|
| Mechanical data |
| Dimensions (W x H x D) |
112 mm x 150.7 mm x 111.1 mm (without system plug) |
| Weight |
1.45 kg |
| Housing material |
Aluminum |
| Housing color |
RAL 1021 (yellow), RAL 9005 (black) |
| Optics cover material |
Polycarbonate |
| Optics cover surface finish |
Outside with scratch-resistant coating |
|
| Ambient data |
| Enclosure rating |
IP65 (IEC 60529) |
| Ambient light immunity |
≤ 3,000 lx (IEC 61496-3) |
|
| Ambient operating temperature |
–10 °C … +50 °C |
| Storage temperature |
–25 °C … +70 °C |
| Vibration resistance |
IEC 60068-2-6, IEC 60068-2-64, IEC 60721-3-5, IEC TR 60721-4-3, IEC 61496-1, IEC 61496-3 |
| Class |
5M1 (IEC 60721-3-5) |
|
3M4 (IEC TR 60721-4-3) |
|
| Shock resistance |
IEC 60068-2-27, IEC 60721-3-5, IEC TR 60721-4-3, IEC 61496-1, IEC 61496-3 |
| Class |
5M1 (IEC 60721-3-5) |
|
3M4 (IEC TR 60721-4-3) |
| Continuous shock |
100 m/s², 16 ms |
|
150 m/s², 6 ms |
|
| EMC |
IEC 61496-1, IEC 61000-6-2, IEC 61000-6-4 |
|
| Other information |
| Type of light |
Pulsed laser diode |
| Wave length |
845 nm |
| Detectable remission factor |
1.8% to several 1000% |
| Laser class |
1M (21 CFR 1040.10 and 1040.11, IEC 60825-1) |
|
| Classifications |
| ECLASS 5.0 |
27272705 |
| ECLASS 5.1.4 |
27272705 |
| ECLASS 6.0 |
27272705 |
| ECLASS 6.2 |
27272705 |
| ECLASS 7.0 |
27272705 |
| ECLASS 8.0 |
27272705 |
| ECLASS 8.1 |
27272705 |
| ECLASS 9.0 |
27272705 |
| ECLASS 10.0 |
27272705 |
| ECLASS 11.0 |
27272705 |
| ECLASS 12.0 |
27272705 |
| ETIM 5.0 |
EC002550 |
| ETIM 6.0 |
EC002550 |
| ETIM 7.0 |
EC002550 |
| ETIM 8.0 |
EC002550 |
| UNSPSC 16.0901 |
39121528 |
|
