| Features |
| Sub product family |

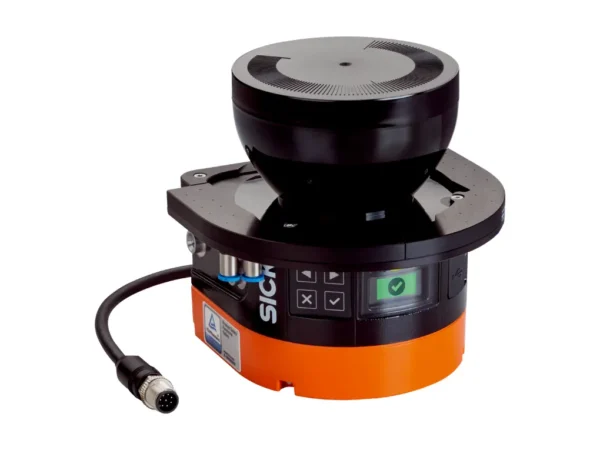

outdoorScan3 Core I/O |
| Model |
Sensor kit for compressed air cleaning, including system plug |
| Application |
Outdoor |
| Compressed air cleaning |
Possible |
| Operating medium |
Compressed air |
| Purity class |
ISO 8573-1 [7:4:4] |
| Input pressure |
Typ. 400 kPa (200 kPa … 600 kPa, 2.0 bar … 6.0 bar) |
| Temperature of compressed air |
≤ +50 °C |
|
| Protective field range |
4 m |
| Warning field range |
40 m |
| Number of simultaneously monitored fields |
≤ 4 |
| Number of fields |
8 |
| Number of monitoring cases |
2 |
| Scanning angle |
275° |
| Resolution (can be configured) |
50 mm
70 mm
|
| Angular resolution |
0.39° |
| Response time |
≥ 90 ms |
| Protective field supplement |
65 mm |
|
| Safety-related parameters |
| Type |
Type 3 (IEC 61496) |
| Safety integrity level |
SIL 2 (IEC 61508) |
| Category |
Category 3 (EN ISO 13849) |
| Performance level |
PL d (EN ISO 13849) |
| Performance class SRS/SRSS |
Performance class D (IEC/TS 62998) |
| PFHD (mean probability of a dangerous failure per hour) |
8.0 x 10-8 |
| TM (mission time) |
20 years (EN ISO 13849) |
| Safe state in the event of a fault |
In each OSSD pair, at least one OSSD is in the OFF state. |
|
| Functions |
| Restart interlock |
✔ |
| External device monitoring (EDM) |
✔ |
| Multiple sampling |
✔ |
| Monitoring case switching |
✔ |
| Simultaneous monitoring |
✔ |
| Static protective field switching |
✔ |
| Integrated configuration memory |
✔ |
| Measured data output |
None |
|
| Interfaces |
| Compressed air connections |
4 x push-pull connection for compressed air hose (Ø 4 mm), M5 male thread |
| Connection type |
Male connector, M12, 8 pin, A-coded (common male connector for power supply and inputs and outputs) |
|
| Universal I/Os |
3 |
|
|
| Configuration method |
PC with Safety Designer (Configuration and Diagnostic Software) |
| Configuration and diagnostics interface |
USB 2.0, Mini-USB |
|
| Display elements |
Graphic color display, LEDs |
|
| Electrical data |
| Protection class |
III (EN 61140) |
| Supply voltage Vs |
24 V DC (16.8 V DC … 30 V DC) |
| Power consumption typical |
7 W (without output load) |
|
| Mechanical data |
| Dimensions (W x H x D) |
140.6 mm x 135.1 mm x 127.6 mm |
| Weight |
1.3 kg |
| Housing material |
Aluminum |
| Housing color |
RAL 2004 (pure orange), RAL 9005 (black) |
| Optics cover material |
Polycarbonate |
| Optics cover surface finish |
Outside with scratch-resistant coating |
| Material of the airWiper |
Aluminum (anodised) |
|
| Ambient data |
| Enclosure rating |
IP65 (IEC 60529) |
| Ambient light immunity |
|
| Halogen light |
≤ 12,000 lx (IEC 61496-3) |
| Sunlight |
≤ 40,000 lx (IEC 61496-3) |
|
| Ambient operating temperature |
–25 °C … +50 °C |
| Storage temperature |
–25 °C … +70 °C |
| Ambient conditions |
|
| Rain |
10 mm/h |
| Snowfall |
3 mm/h SWE, Snow Water Equivalent |
| Fog |
≥ 50 m (MOR, Meteorological Optical Range) |
|
| Vibration resistance |
IEC 60068-2-6, IEC 60068-2-64, IEC 60721-3-5, IEC TR 60721-4-3, IEC 61496-1, IEC 61496-3 |
| Class |
5M1 (IEC 60721-3-5) |
|
3M4 (IEC TR 60721-4-3) |
|
| Shock resistance |
IEC 60068-2-27, IEC 60721-3-5, IEC TR 60721-4-3, IEC 61496-1, IEC 61496-3 |
| Class |
5M1 (IEC 60721-3-5) |
|
3M4 (IEC TR 60721-4-3) |
| Continuous shock |
100 m/s², 16 ms |
|
150 m/s², 6 ms |
|
| EMC |
IEC 61496-1, IEC 61000-6-2, IEC 61000-6-4 |
|
| Other information |
| Type of light |
Pulsed laser diode |
| Wave length |
845 nm |
| Detectable remission factor |
1.8% to several 1000% |
| Laser class |
1M (21 CFR 1040.10 and 1040.11, IEC 60825-1) |
|
| Classifications |
| ECLASS 5.0 |
27272705 |
| ECLASS 5.1.4 |
27272705 |
| ECLASS 6.0 |
27272705 |
| ECLASS 6.2 |
27272705 |
| ECLASS 7.0 |
27272705 |
| ECLASS 8.0 |
27272705 |
| ECLASS 8.1 |
27272705 |
| ECLASS 9.0 |
27272705 |
| ECLASS 10.0 |
27272705 |
| ECLASS 11.0 |
27272705 |
| ECLASS 12.0 |
27272705 |
| ETIM 5.0 |
EC002550 |
| ETIM 6.0 |
EC002550 |
| ETIM 7.0 |
EC002550 |
| ETIM 8.0 |
EC002550 |
| UNSPSC 16.0901 |
39121528 |
|
