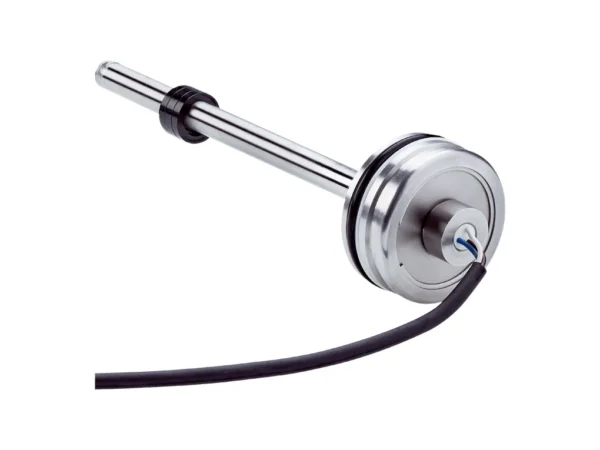

Home Fotoelektrik Sensörler MAX48A-12V20K10080 – 1115072 🔍 MAX48A-12V20K10080 – 1115072 ✉ Teklif Al Teklif Al Stok kodu: 1115072 Kategoriler: Fotoelektrik Sensörler Marka: SICK Açıklama Tecnichal data Features Items supplied Accessories not included with delivery, please order seperately. Performance Type 48 mm installation housing – IN cylinder mounting Pressure pipe/End cap 10 mm / Flat Connection type Connecting cable, 3-wire, 300 mm Direction of connection Axial Measuring range Measured values Positioning Position (F.S.) 0 mm … 80 mm Null zone 30 mm Damping zone 30 mm Operating conditions Fluid temperature –30 °C … +95 °C Air humidity 90 % (Condensation not permitted) Operating pressure PN 400 bar Supply voltage 24 V DC (8 … 32 V DC) Switch-on time < 250 ms Switch-on current Typ. 5.0 A / 50 µs Measuring frequency (internal) 2 ms Transmission rate (cycle time) Steady Accuracy Resolution Typ. 0.1 mm (noise-free) Hysteresis ± 0,1 mm Repeatability Typ. ± 0.2 mm Linearity Typ. ± 0.25 mm (measuring range 50 to 500 mm) Typ. ± 0.04% F.S. (measuring range from 500 to 2,500 mm) Temperature drift Warming up phase Typ. ≤ ± 0.25 mm (2 min) In the operational status Typ. ± 0.25 mm (measuring range 50 to 500 mm) Typ. ± 0.04% F.S. (measuring range from 500 to 2,500 mm) MTTFd 69 years (EN ISO 13849-1) Interfaces Communication interface Analog Communication Interface detail Voltage Voltage output 0.25 V DC … 4.75 V DC Electrical data Connection type Connecting cable, 3-wire, 300 mm Electrical operation Supply voltage 24 V DC (8 … 32 V DC) Residual ripple < 1% S-S Power consumption ≤ 0.75 W Current consumption ≤ 30 mA Load resistance RL ≥ 10 kΩ Overvoltage protection during power-up (60 s) ≤ 36 V at all poles during power-up (60 s) ≤ 48 V To GND during power-up (60 s) Reverse polarity protection ≤ 36 V (at all poles) (ISO 16750-2) Insulation resistance Riso ≥ 10 MΩ, 60 s (ISO 16750-2) Dielectric strength 500 V DC, 0 V DC (60 s) to housing (RISO ≥ 1 MΩ) (ISO 16750-2) Short-circuit protection VS – GND on housing Mechanical data Dimensions Housing 48 mm, 48f7 for IN cylinder mounting – cylinder bore hole 48H8 Ø pressure pipe 10 mm Ø O-ring 40.87 mm x 3.53 mm Ø support ring 42.6 mm x 48 mm x 1.4 mm Ø connecting cable Ø 5.0 mm; 3 x 0.38 mm² (AWG22), stripped Length of cable 300 mm Material Housing Stainless steel 1.4305 (AISI 303) Pressure pipe Stainless steel 1.4404, AISI 316L O-ring NBR 70 Support ring PTFE Sheath PUR Ambient data EMC EU Directive 2014/30 / EU CE marking Generic standards EN 61000-6-2/61000-6-3 Agricultural and forestry machinery EN ISO 14982 Transient pulses ISO 7637-2/ISO 16750-2 ESD (air and contact discharge) ISO 61000-4-2 ISO 10605 Vibration Sine 20 g (sine) / 55 … 2,000 Hz / 3×24 h (IEC 60068-2-6 Fc) Sine over noise 18 g (r.m.s) / 10 … 2,000 Hz / 3×36 h (IEC 60068-2-80 Fi) Broadband noise (resonance peaks removed) 20 g (r.m.s) / 10 … 2,000 Hz / 3×48 h (IEC 60068-2-64 Fh) Pressure load Operating pressure PN 400 bar Overload pressure Pmax = PN x 1.2 480 bar Test pressure Pstat = PN x 1.5 600 bar Temperature and air humidity Storage –20 °C … +65 °C Operation (electronics) –40 °C … +105 °C Maximum air humidity 90 % (Condensation not permitted) Enclosure rating Housing IP67 (EN 60529) Classifications eCl@ss 5.0 27270705 eCl@ss 5.1.4 27270705 eCl@ss 6.0 27270705 eCl@ss 6.2 27270705 eCl@ss 7.0 27270705 eCl@ss 8.0 27270705 eCl@ss 8.1 27270705 eCl@ss 9.0 27270705 eCl@ss 10.0 27270705 eCl@ss 11.0 27270705 eCl@ss 12.0 27274304 ETIM 5.0 EC002544 ETIM 6.0 EC002544 ETIM 7.0 EC002544 ETIM 8.0 EC002544 UNSPSC 16.0901 41111613 İlgili ürünler Distance Measurement Sensor – 45DMS-B8LAT1-D4ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Photoelectric Accessories, Mounting, Kit – 129-135ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Photoelectric Sensors – 42AF-E1UZB1-G4ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Endüstriyel bağlantı kablosu – 42CA-P2MPB-A2ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git
Tecnichal data Features Items supplied Accessories not included with delivery, please order seperately. Performance Type 48 mm installation housing – IN cylinder mounting Pressure pipe/End cap 10 mm / Flat Connection type Connecting cable, 3-wire, 300 mm Direction of connection Axial Measuring range Measured values Positioning Position (F.S.) 0 mm … 80 mm Null zone 30 mm Damping zone 30 mm Operating conditions Fluid temperature –30 °C … +95 °C Air humidity 90 % (Condensation not permitted) Operating pressure PN 400 bar Supply voltage 24 V DC (8 … 32 V DC) Switch-on time < 250 ms Switch-on current Typ. 5.0 A / 50 µs Measuring frequency (internal) 2 ms Transmission rate (cycle time) Steady Accuracy Resolution Typ. 0.1 mm (noise-free) Hysteresis ± 0,1 mm Repeatability Typ. ± 0.2 mm Linearity Typ. ± 0.25 mm (measuring range 50 to 500 mm) Typ. ± 0.04% F.S. (measuring range from 500 to 2,500 mm) Temperature drift Warming up phase Typ. ≤ ± 0.25 mm (2 min) In the operational status Typ. ± 0.25 mm (measuring range 50 to 500 mm) Typ. ± 0.04% F.S. (measuring range from 500 to 2,500 mm) MTTFd 69 years (EN ISO 13849-1) Interfaces Communication interface Analog Communication Interface detail Voltage Voltage output 0.25 V DC … 4.75 V DC Electrical data Connection type Connecting cable, 3-wire, 300 mm Electrical operation Supply voltage 24 V DC (8 … 32 V DC) Residual ripple < 1% S-S Power consumption ≤ 0.75 W Current consumption ≤ 30 mA Load resistance RL ≥ 10 kΩ Overvoltage protection during power-up (60 s) ≤ 36 V at all poles during power-up (60 s) ≤ 48 V To GND during power-up (60 s) Reverse polarity protection ≤ 36 V (at all poles) (ISO 16750-2) Insulation resistance Riso ≥ 10 MΩ, 60 s (ISO 16750-2) Dielectric strength 500 V DC, 0 V DC (60 s) to housing (RISO ≥ 1 MΩ) (ISO 16750-2) Short-circuit protection VS – GND on housing Mechanical data Dimensions Housing 48 mm, 48f7 for IN cylinder mounting – cylinder bore hole 48H8 Ø pressure pipe 10 mm Ø O-ring 40.87 mm x 3.53 mm Ø support ring 42.6 mm x 48 mm x 1.4 mm Ø connecting cable Ø 5.0 mm; 3 x 0.38 mm² (AWG22), stripped Length of cable 300 mm Material Housing Stainless steel 1.4305 (AISI 303) Pressure pipe Stainless steel 1.4404, AISI 316L O-ring NBR 70 Support ring PTFE Sheath PUR Ambient data EMC EU Directive 2014/30 / EU CE marking Generic standards EN 61000-6-2/61000-6-3 Agricultural and forestry machinery EN ISO 14982 Transient pulses ISO 7637-2/ISO 16750-2 ESD (air and contact discharge) ISO 61000-4-2 ISO 10605 Vibration Sine 20 g (sine) / 55 … 2,000 Hz / 3×24 h (IEC 60068-2-6 Fc) Sine over noise 18 g (r.m.s) / 10 … 2,000 Hz / 3×36 h (IEC 60068-2-80 Fi) Broadband noise (resonance peaks removed) 20 g (r.m.s) / 10 … 2,000 Hz / 3×48 h (IEC 60068-2-64 Fh) Pressure load Operating pressure PN 400 bar Overload pressure Pmax = PN x 1.2 480 bar Test pressure Pstat = PN x 1.5 600 bar Temperature and air humidity Storage –20 °C … +65 °C Operation (electronics) –40 °C … +105 °C Maximum air humidity 90 % (Condensation not permitted) Enclosure rating Housing IP67 (EN 60529) Classifications eCl@ss 5.0 27270705 eCl@ss 5.1.4 27270705 eCl@ss 6.0 27270705 eCl@ss 6.2 27270705 eCl@ss 7.0 27270705 eCl@ss 8.0 27270705 eCl@ss 8.1 27270705 eCl@ss 9.0 27270705 eCl@ss 10.0 27270705 eCl@ss 11.0 27270705 eCl@ss 12.0 27274304 ETIM 5.0 EC002544 ETIM 6.0 EC002544 ETIM 7.0 EC002544 ETIM 8.0 EC002544 UNSPSC 16.0901 41111613
