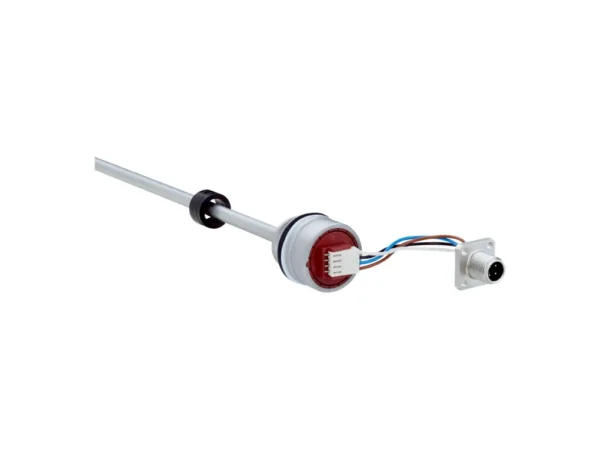

Name: SICK 1115613 | Fotoelektrik Sensör | Royal Endüstriyel
Brand: SICK
SKU: 1115613
Price: 3200.00 TRY
Availability: InStock

Tecnichal data

Features

Items supplied

Accessories not included with delivery, please order seperately.

Performance

Type

30 mm installation housing – IN cylinder mounting

Pressure pipe/End cap

7 mm / Flat

Connection type

Male connector, M12 type S (20×20 mm), 5-pin

Direction of connection

Radial

Measuring range
Measured values	Positioning, speed
Position (F.S.)	0 mm … 200 mm
Speed	0 … 1,000 mm/s
Null zone	21.5 mm
Damping zone	30 mm

Operating conditions
Fluid temperature	–30 °C … +95 °C
Air humidity	90 % (Condensation not permitted)
Operating pressure P_N	320 bar
Supply voltage	24 V DC (8 … 32 V DC)
Switch-on time	< 250 ms
Switch-on current	5,0 A/ 50 µs
Measuring frequency (internal)	1 ms
Transmission rate (cycle time)	CANopen (0 … 65,535 ms), factory setting: 0 ms (transmission stopped)

Accuracy
Setpoint tolerance	≤ ± 1 mm
Resolution	Typ. 0.1 mm (noise-free)
Hysteresis	± 0,1 mm
Repeatability	Typ. ± 0.2 mm
Linearity	Typ. ± 0.25 mm (measuring range 50 to 500 mm)
	Typ. ± 0.04% F.S. (Measuring range from 500 to 1,500 mm)

Temperature drift
Warming up phase	Typ. ≤ ± 0.25 mm (2 min)
In the operational status	Typ. ± 0.25 mm (measuring range 50 to 500 mm)
	Typ. ± 0.04% F.S. (Measuring range from 500 to 1,500 mm)

MTTFd

69 years (EN ISO 13849-1)

Interfaces

Communication interface

CANopen

Bus protocol

CANopen CiA DS-301

Device profile

CANopen CiA DS-406

Address setting
Baud rate	250 kbit/s
Node ID	7F

Electrical data

Connection type

Male connector, M12 type S (20×20 mm), 5-pin

PIN assignment

1=n.c.; 2=V DC; 3=GND; 4=CAN_H; 5=CAN_L

Electrical operation
Supply voltage	24 V DC (8 … 32 V DC)
Residual ripple	< 1% S-S
Power consumption	≤ 0.75 W
Current consumption	≤ 30 mA
Bus termination (external)	120 Ω

Overvoltage protection during power-up (60 s)

≤ 36 V at all poles during power-up (60 s)

≤ 48 V To GND during power-up (60 s)

Reverse polarity protection

≤ 36 V (at all poles) (ISO 16750-2)

Insulation resistance

Riso ≥ 10 MΩ, 60 s (ISO 16750-2)

Dielectric strength

500 V DC, 0 V DC (60 s) to housing (R_ISO ≥ 1 MΩ) (ISO 16750-2)

Short-circuit protection

V_S – GND on housing

Mechanical data

Dimensions
Housing	30 mm, 31f7 for IN cylinder mounting – cylinder bore hole 31H8
Ø pressure pipe	7 mm
Ø O-ring	24.99 mm x 3.53 mm
Ø support ring	31 mm x 25.8 mm x 1.4 mm
M12 flange	M12 flange type S: DM 20×20 mm – hole pattern 14 mm (EN 61076-2-101)
Wire length	60 mm

Material
Housing	Stainless steel 1.4305 (AISI 303)
Pressure pipe	Stainless steel 1.4404, AISI 316L
O-ring	NBR 70
Support ring	PTFE
M12 male connector	Glass fiber reinforced polyamide, nickel-/gold-plated brass contacts
M12 flange	Nickel-plated brass with O-ring (NBR)
Strands	PVC

Ambient data

EMC	EU Directive 2014/30 / EU CE marking
Generic standards	EN 61000-6-2/61000-6-3
Agricultural and forestry machinery	EN ISO 14982
Transient pulses	ISO 7637-2/ISO 16750-2
ESD (air and contact discharge)	ISO 61000-4-2
	ISO 10605

Vibration
Sine	15 g, 24 h / axis, 55 … 2.000 Hz (IEC 60068-2-6)
Sine over noise	13 g (r.m.s), 36 h / axis, 10 … 2.000 Hz (IEC 60068-2-80)
Broadband noise (resonance peaks removed)	15 g (r.m.s), 48 h / axis, 10 … 2.000 Hz (IEC 60068-2-64)

Pressure load
Operating pressure P_N	320 bar
Overload pressure P_max = P_N x 1.2	380 bar
Test pressure P_stat = P_N x 1.5	480 bar

Temperature and air humidity
Storage	–20 °C … +65 °C
Operation (electronics)	–40 °C … +105 °C
Maximum air humidity	90 % (Condensation not permitted)

Enclosure rating
Housing	IP67 (EN 60529)
M12 male connector	IP69k (ISO 20653)

Classifications

eCl@ss 5.0	27270705
eCl@ss 5.1.4	27270705
eCl@ss 6.0	27270705
eCl@ss 6.2	27270705
eCl@ss 7.0	27270705
eCl@ss 8.0	27270705
eCl@ss 8.1	27270705
eCl@ss 9.0	27270705
eCl@ss 10.0	27270705
eCl@ss 11.0	27270705
eCl@ss 12.0	27274304
ETIM 5.0	EC002544
ETIM 6.0	EC002544
ETIM 7.0	EC002544
ETIM 8.0	EC002544
UNSPSC 16.0901	41111613
