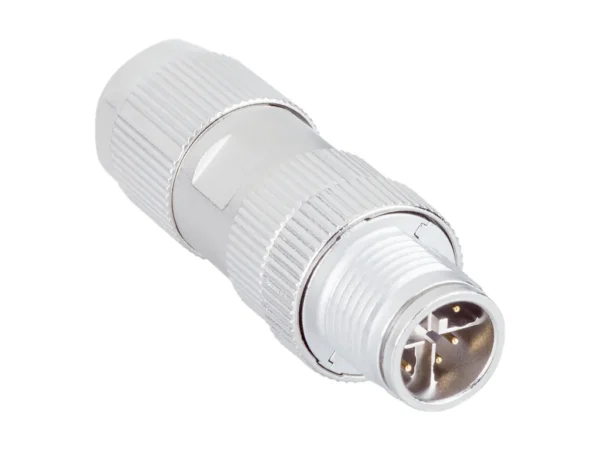

Home Diğer (Montaj / Aksesuar) MAL.CON.ST.CAB.ID – 6054376 🔍 MAL.CON.ST.CAB.ID – 6054376 ✉ Teklif Al Teklif Al Stok kodu: 6054376 Kategoriler: Diğer (Montaj / Aksesuar) Marka: SICK Açıklama Tecnichal data Technical specifications Accessory group Plug connectors and cables Accessory family Field-attachable connectors Connection type head A Male connector, M12, 8-pin, straight, X-coded Connection type Piercecon fast connection Locking plug connector Screw connection Connector material Zinc die-cast, nickel-plated Connector color Silver Locking nut material Zinc die-cast, nickel-plated Seal material NBR Tightening torque 0.4 Nm Conductor cross section 0.14 mm² Current loading ≤ 0.5 A Signal type Ethernet Authorizations CE Enclosure rating IP65 / IP67 Ambient operating temperature Head –40 °C … +85 °C Contamination rating 2 Insulation resistance ≥ 100 MΩ Overvoltage category III Specific insulation resistance ≤ 10 mΩ Classifications ECLASS 5.0 27279290 ECLASS 5.1.4 27279290 ECLASS 6.0 27279221 ECLASS 6.2 27279221 ECLASS 7.0 27440104 ECLASS 8.0 27440104 ECLASS 8.1 27440104 ECLASS 9.0 27440102 ECLASS 10.0 27440102 ECLASS 11.0 27440102 ECLASS 12.0 27440116 ETIM 5.0 EC002635 ETIM 6.0 EC002635 ETIM 7.0 EC002635 ETIM 8.0 EC002635 UNSPSC 16.0901 39121421 İlgili ürünler SFP+-10G-ZR, 1550nm, SM, 80km – 40 85? – SFP-XSM-LCI-80KAdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git SFP MODULE 1000BASE-SX, MM 550M – SFP-1000SX-M-550M-TAdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git SFP MODULE 100BASE-FX, MM 2KM – SFP-100FX-M-2KM-TAdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git 100Base-T RJ45 SFP Module w/Wide Temp – SFP-FTX-RJ45I-AEAdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git
Tecnichal data Technical specifications Accessory group Plug connectors and cables Accessory family Field-attachable connectors Connection type head A Male connector, M12, 8-pin, straight, X-coded Connection type Piercecon fast connection Locking plug connector Screw connection Connector material Zinc die-cast, nickel-plated Connector color Silver Locking nut material Zinc die-cast, nickel-plated Seal material NBR Tightening torque 0.4 Nm Conductor cross section 0.14 mm² Current loading ≤ 0.5 A Signal type Ethernet Authorizations CE Enclosure rating IP65 / IP67 Ambient operating temperature Head –40 °C … +85 °C Contamination rating 2 Insulation resistance ≥ 100 MΩ Overvoltage category III Specific insulation resistance ≤ 10 mΩ Classifications ECLASS 5.0 27279290 ECLASS 5.1.4 27279290 ECLASS 6.0 27279221 ECLASS 6.2 27279221 ECLASS 7.0 27440104 ECLASS 8.0 27440104 ECLASS 8.1 27440104 ECLASS 9.0 27440102 ECLASS 10.0 27440102 ECLASS 11.0 27440102 ECLASS 12.0 27440116 ETIM 5.0 EC002635 ETIM 6.0 EC002635 ETIM 7.0 EC002635 ETIM 8.0 EC002635 UNSPSC 16.0901 39121421
