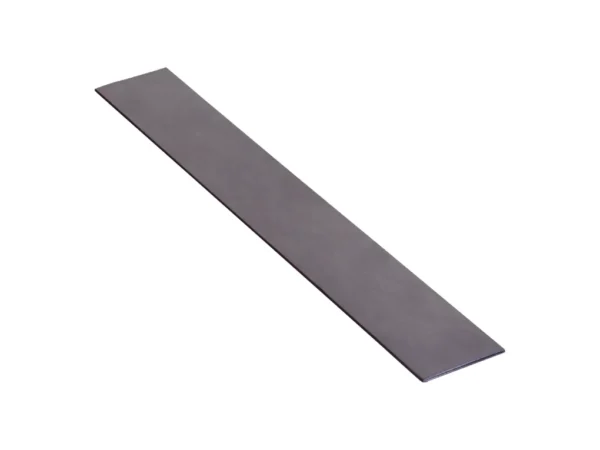

Home Diğer (Montaj / Aksesuar) MAGNETIC TAPE S-POLE – 5337614 🔍 MAGNETIC TAPE S-POLE – 5337614 ✉ Teklif Al Teklif Al Stok kodu: 5337614 Kategoriler: Diğer (Montaj / Aksesuar) Marka: SICK Açıklama Tecnichal data Technical specifications Accessory group Magnets Description Magnetic tape, South is top side, adhesive, width 25 mm, length 50 m Dimensions (W x H x L) 25 mm x 1.3 mm x 50 m Maximum energy product ≥ 9 kJ/m³ Remanence < 220 mT Coercivity of the mag. flow density ≥ 170 kA/m Coercivity of the mag. polarization ≥ 280 kA/m Field line thickness via LS 150 g Fire protection class B2 nach DIN 4102 Density 3.7 g/cm³ Magnetization Axial Minimum bend radius 2 mm Ambient operating temperature max. ≤ +70 °C Classifications eCl@ss 5.0 27279209 eCl@ss 5.1.4 27279209 eCl@ss 6.0 27279209 eCl@ss 6.2 27279209 eCl@ss 7.0 27279209 eCl@ss 8.0 27279209 eCl@ss 8.1 27279209 eCl@ss 9.0 27272492 eCl@ss 10.0 27272492 eCl@ss 11.0 27272492 eCl@ss 12.0 27274392 ETIM 5.0 EC002594 ETIM 6.0 EC002594 ETIM 7.0 EC002594 ETIM 8.0 EC002594 UNSPSC 16.0901 39122245 İlgili ürünler IE-SFP/1250-ED MM850-LC – SFP-GMM-550AdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git IE-SFP/1250-ED SSBX-SM1310-LC – 808-38727AdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git IE-SFP/1250-ED SSLX-SM1550/PLUS-SC – 808-38224AdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git SFP MODULE 100BASE-FX, SM 30KM – SFP-100FX-S-30KM-TAdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git
Tecnichal data Technical specifications Accessory group Magnets Description Magnetic tape, South is top side, adhesive, width 25 mm, length 50 m Dimensions (W x H x L) 25 mm x 1.3 mm x 50 m Maximum energy product ≥ 9 kJ/m³ Remanence < 220 mT Coercivity of the mag. flow density ≥ 170 kA/m Coercivity of the mag. polarization ≥ 280 kA/m Field line thickness via LS 150 g Fire protection class B2 nach DIN 4102 Density 3.7 g/cm³ Magnetization Axial Minimum bend radius 2 mm Ambient operating temperature max. ≤ +70 °C Classifications eCl@ss 5.0 27279209 eCl@ss 5.1.4 27279209 eCl@ss 6.0 27279209 eCl@ss 6.2 27279209 eCl@ss 7.0 27279209 eCl@ss 8.0 27279209 eCl@ss 8.1 27279209 eCl@ss 9.0 27272492 eCl@ss 10.0 27272492 eCl@ss 11.0 27272492 eCl@ss 12.0 27274392 ETIM 5.0 EC002594 ETIM 6.0 EC002594 ETIM 7.0 EC002594 ETIM 8.0 EC002594 UNSPSC 16.0901 39122245
