Name: SICK 1102633 | Işık Perdesi | Royal Endüstriyel
Brand: SICK
SKU: 1102633
Price: 18000.00 TRY
Availability: InStock

Tecnichal data

Features

Application

Normal industrial environment

Functional principle

Active/passive

System part

Active unit

Scanning range

8 m

Dimension of the light path
Typical	0.5 m … 8 m

Number of beams

Beam separation

500 mm

Response time

20 ms

Items supplied

Active unit

Safety instruction

Mounting instructions

Operating instructions for download

Safety-related parameters

Type	Type 4 (IEC 61496-1)
Safety integrity level	SIL 3 (IEC 61508)
Category	Category 4 (ISO 13849-1)
Performance level	PL e (ISO 13849-1)
PFH_D (mean probability of a dangerous failure per hour)	6.6 x 10^-9
T_M (mission time)	20 years (ISO 13849-1)
Safe state in the event of a fault	At least one OSSD is in the OFF state.

Functions

Protective operation

✔

Beam coding

✔

Restart interlock

✔

External device monitoring (EDM)

✔

Differentiation between man and material (muting)	✔
Type of human-material differentiation	Flexible 2-signal muting
Concurrence monitoring	✔
Monitoring of total muting time	✔
Sensor gap monitoring	✔
Muting with override	✔
Exit monitoring	✔
Entry and exit monitoring	✔
End of muting by ESPE	✔

Interfaces

System connection	Depending on system plug (M12 male connector, 5-pin or 8-pin)
Extension connection	Depending on system plug (without extension connection or with M12 female connector, 5-pin)
Configuration method	DIP switch on system plug
Display elements	LEDs
Alignment aid	Alignment quality via diagnostic LEDs
Application diagnostic output (ADO)	✔
IO-Link	✔
Near Field Communication (NFC)	✔

Electrical data

Protection class

III (IEC 61140)

Supply voltage V_S

24 V DC (19.2 V DC … 28.8 V DC)

Residual ripple

≤ 10 %

Power consumption typical

4 W (DC)

Output signal switching devices (OSSDs)	2 PNP semiconductors, short-circuit protected, cross-circuit monitored
ON state, switching voltage HIGH	24 V DC (V_S – 2.25 V DC … V_S)
OFF state, switching voltage LOW	≤ 2 V DC
Current-carrying capacity per OSSD	≤ 500 mA

Application diagnostic output (ADO)	PNP semiconductor, short-circuit protected
Output voltage HIGH (active)	≥ V_s – 3 V
Output voltage LOW (deactivated)	High resistance
Current loading	≤ 100 mA

Mechanical data

Dimensions

See dimensional drawing

Housing cross-section

30.7 mm x 34 mm

Material
Housing	Aluminum extruded profile
Front screen	Polycarbonate, scratch-resistant coating

Weight

550 g (± 50 g)

Ambient data

Enclosure rating	IP65 (IEC 60529) IP67 (IEC 60529)
Ambient operating temperature	–30 °C … +55 °C
Storage temperature	–30 °C … +70 °C
Air humidity	15 % … 95 %, Non-condensing
Vibration resistance	5 g, 10 Hz … 55 Hz (IEC 60068-2-6)
Shock resistance	10 g, 16 ms (IEC 60068-2-27)

Other information

Type of light

Near-infrared (NIR), invisible

Classifications

eCl@ss 5.0	27272703
eCl@ss 5.1.4	27272703
eCl@ss 6.0	27272703
eCl@ss 6.2	27272703
eCl@ss 7.0	27272703
eCl@ss 8.0	27272703
eCl@ss 8.1	27272703
eCl@ss 9.0	27272703
eCl@ss 10.0	27272703
eCl@ss 11.0	27272703
eCl@ss 12.0	27272703
ETIM 5.0	EC001832
ETIM 6.0	EC001832
ETIM 7.0	EC001832
ETIM 8.0	EC001832
UNSPSC 16.0901	46171620

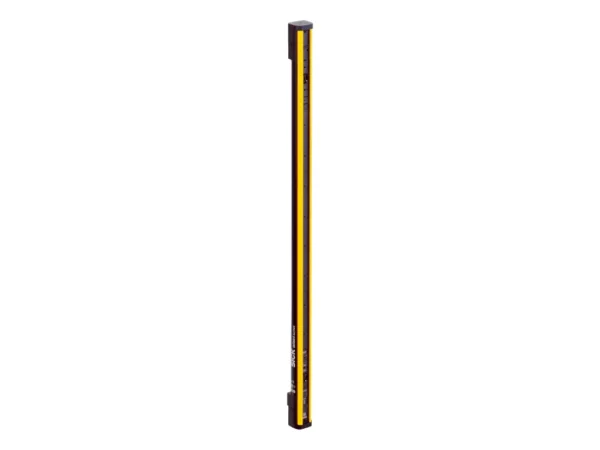

M4P-ZA02500C00 – 1102633
