Name: SICK 1096014 | Işık Perdesi | Royal Endüstriyel
Brand: SICK
SKU: 1096014
Price: 18000.00 TRY
Availability: InStock

Tecnichal data

Features

Application

Normal industrial environment

Functional principle

Active/passive

System part

Active unit

Scanning range

3.2 m

Dimension of the light path
Typical	0.5 m … 3.2 m

Number of beams

Beam separation

300 mm

Response time

20 ms

End cap with integrated LED

✔

Items supplied

Active unit

Safety instruction

Mounting instructions

Operating instructions for download

Safety-related parameters

Type	Type 4 (IEC 61496-1)
Safety integrity level	SIL 3 (IEC 61508)
Category	Category 4 (ISO 13849-1)
Performance level	PL e (ISO 13849-1)
PFH_D (mean probability of a dangerous failure per hour)	6.8 × 10^-9
T_M (mission time)	20 years (ISO 13849-1)
Safe state in the event of a fault	At least one OSSD is in the OFF state.

Functions

Protective operation

✔

Beam coding

✔

Restart interlock

✔

Differentiation between man and material (muting)	✔
C1 muting release	✔
Concurrence monitoring	✔
Monitoring of total muting time	✔
Sensor gap monitoring	✔
Muting with override	✔
Exit monitoring	✔
End of muting by ESPE	✔

Interfaces

System connection	Male connector M12, 8-pin
Connection for reset/override pushbutton	Female connector M12, 5-pin
Connection for muting sensor	2 × female connector, M12, 5-pin
Configuration method	Hard wired
Display elements	LEDs
Alignment aid	Alignment quality via diagnostic LEDs
End cap with integrated LED	✔
Application diagnostic output (ADO)	✔
Near Field Communication (NFC)	✔

Electrical data

Protection class

III (IEC 61140)

Supply voltage V_S

24 V DC (19.2 V DC … 28.8 V DC)

Residual ripple

≤ 10 %

Power consumption typical

7 W (DC)

Output signal switching devices (OSSDs)	2 PNP semiconductors, short-circuit protected, cross-circuit monitored
ON state, switching voltage HIGH	24 V DC (V_S – 2.25 V DC … V_S)
OFF state, switching voltage LOW	≤ 2 V DC
Current-carrying capacity per OSSD	≤ 500 mA

Application diagnostic output (ADO)	PNP semiconductor, short-circuit protected
Output voltage HIGH (active)	≥ V_s – 3 V
Output voltage LOW (deactivated)	High resistance
Current loading	≤ 100 mA

Mechanical data

Dimensions

See dimensional drawing

Material
Housing	Aluminum extruded profile
Front screen	Polycarbonate, scratch-resistant coating

Weight

925 g (± 50 g)

Ambient data

Enclosure rating	IP65 (IEC 60529) IP67 (IEC 60529)
Ambient operating temperature	–30 °C … +55 °C
Storage temperature	–30 °C … +70 °C
Air humidity	15 % … 95 %, Non-condensing
Vibration resistance	5 g, 10 Hz … 55 Hz (IEC 60068-2-6)
Shock resistance	10 g, 16 ms (IEC 60068-2-27)

Other information

Type of light

Near-infrared (NIR), invisible

Classifications

eCl@ss 5.0	27272703
eCl@ss 5.1.4	27272703
eCl@ss 6.0	27272703
eCl@ss 6.2	27272703
eCl@ss 7.0	27272703
eCl@ss 8.0	27272703
eCl@ss 8.1	27272703
eCl@ss 9.0	27272703
eCl@ss 10.0	27272703
eCl@ss 11.0	27272703
eCl@ss 12.0	27272703
ETIM 5.0	EC001832
ETIM 6.0	EC001832
ETIM 7.0	EC001832
ETIM 8.0	EC001832
UNSPSC 16.0901	46171620

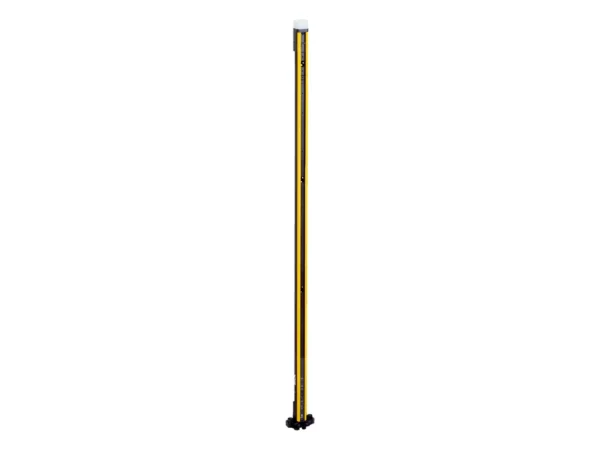

M4M-ZA04300D20 – 1096014
