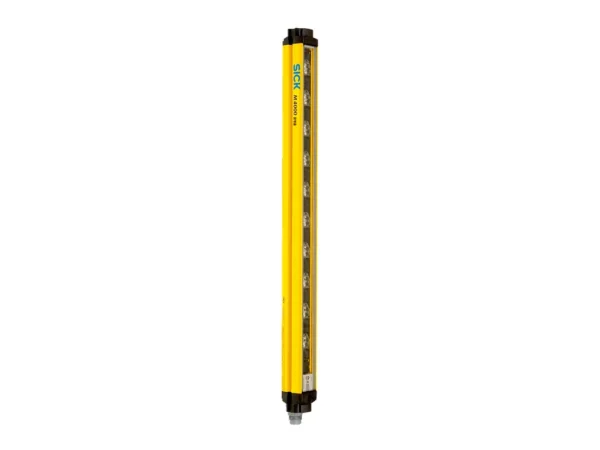

Name: SICK 1200589 | Işık Perdesi | Royal Endüstriyel
Brand: SICK
SKU: 1200589
Price: 18000.00 TRY
Availability: InStock

Tecnichal data

Features

Safety-related parameters

Type	Type 4 (IEC 61496-1)
Safety integrity level	SIL 3 (IEC 61508)
Category	Category 4 (EN ISO 13849)
Performance level	PL e (EN ISO 13849)
T_M (mission time)	20 years (EN ISO 13849)
Safe state in the event of a fault	At least one OSSD is in the OFF state.

Functions

	Functions	Delivery status
Restart interlock	✔	Internal
External device monitoring (EDM)	✔	Activated
Beam coding	✔	Uncoded
Configurable status output (ADO)	✔	Contamination (OWS)
Sender test	✔	Deactivated
Configurable scanning range	✔	Low scanning range
Safe SICK device communication via EFI	✔

Interfaces

System connection
Connection type	Hirschmann male connector M26, 12-pin

Configuration method

PC with CDS (Configuration and Diagnostic Software)

Configuration connection

Female connector M8, 4-pin

Display elements

7-segment display, LEDs

Status display

LEDs

Electrical data

Protection class

III (IEC 61140)

Supply voltage V_S

24 V DC (19.2 V DC … 28.8 V DC)

Residual ripple

≤ 10 %

Power consumption

≤ 0.6 A

Output signal switching devices (OSSDs)
Type of output	2 PNP semiconductors, short-circuit protected, cross-circuit monitored
ON state, switching voltage HIGH	24 V DC (V_S – 2.25 V DC … V_S)
OFF state, switching voltage LOW	≤ 2 V DC
Current-carrying capacity per OSSD	≤ 500 mA

Mechanical data

Housing cross-section	52 mm x 55.5 mm
Housing material	Aluminum alloy ALMGSI 0.5
Surface treatment	Powder coated
Front screen material	Polycarbonate, scratch-resistant coating

Ambient data

Enclosure rating	IP65 (EN 60529)
Ambient operating temperature	–30 °C … +55 °C
Storage temperature	–30 °C … +70 °C
Air humidity	15 % … 95 %, Non-condensing
Vibration resistance	5 g, 10 Hz … 55 Hz (IEC 60068-2-6)
Shock resistance	10 g, 16 ms (EN 60068-2-29)

Other information

Wave length

850 nm

Classifications

M40E-68A105RA0 – 1200589
