Name: SICK 1202705 | Işık Perdesi | Royal Endüstriyel
Brand: SICK
SKU: 1202705
Price: 18000.00 TRY
Availability: InStock

Tecnichal data

Features

Safety-related parameters

Type	Type 4 (IEC 61496-1)
Safety integrity level	SIL 3 (IEC 61508)
Category	Category 4 (EN ISO 13849)
Performance level	PL e (EN ISO 13849)
PFH_D (mean probability of a dangerous failure per hour)	6.6 x 10^-9 (EN ISO 13849)
T_M (mission time)	20 years (EN ISO 13849)
Safe state in the event of a fault	At least one OSSD is in the OFF state.

Functions

	Functions	Delivery status
Beam coding	✔	Code 1
Restart interlock	✔	Internal
External device monitoring (EDM)	✔	Activated
Configurable scanning range	✔	0.5 m … 20 m
Configurable application diagnostic output	✔	Contamination (OWS)

Interfaces

Configuration method

Configuration buttons

Display elements

LEDs

7-segment display

Electrical data

Protection class

III (IEC 61140)

Supply voltage V_S

24 V DC (19.2 V DC … 28.8 V DC)

Residual ripple

≤ 10 %

Power consumption

≤ 0.6 A

Output signal switching devices (OSSDs)	2 PNP semiconductors, short-circuit protected, cross-circuit monitored
ON state, switching voltage HIGH	24 V DC (V_S – 2.25 V DC … V_S)
OFF state, switching voltage LOW	≤ 2 V DC
Current-carrying capacity per OSSD	≤ 500 mA

Mechanical data

Dimensions

See dimensional drawing

Housing cross-section

52 mm x 55.5 mm

Material
Housing	Aluminum alloy ALMGSI 0.5, powder coated
Front screen	Polycarbonate, scratch-resistant coating

Ambient data

Enclosure rating	IP65 (EN 60529)
Ambient operating temperature	–30 °C … +55 °C
Storage temperature	–30 °C … +70 °C
Air humidity	15 % … 95 %, Non-condensing
Shock resistance	10 g, 16 ms (IEC 60068-2-29)

Other information

Wave length

850 nm

Classifications

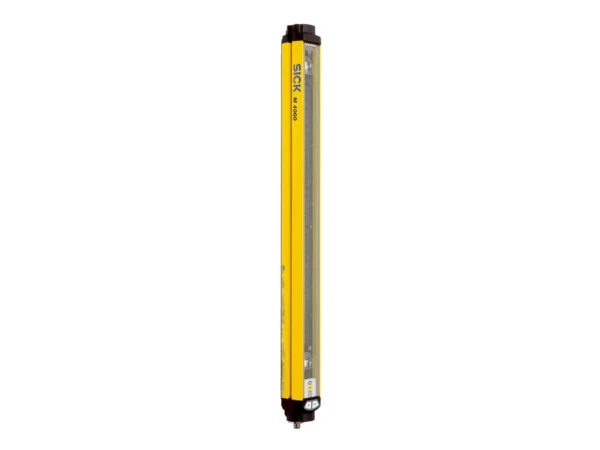

M40E-025000WR0 – 1202705
