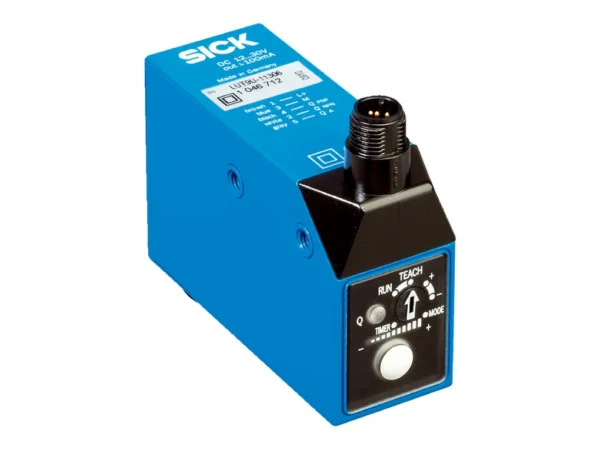

Home Diğer (Montaj / Aksesuar) LUT9U-P124L – 1079119 🔍 LUT9U-P124L – 1079119 ✉ Teklif Al Teklif Al Stok kodu: 1079119 Kategoriler: Diğer (Montaj / Aksesuar) Marka: SICK Açıklama Tecnichal data Features Dimensions (W x H x D) 30.4 mm x 53 mm x 80 mm Sensing distance 20 mm Housing design Large Working range 10 mm … 40 mm Light source LED, UV Wave length 375 nm Light emission Long side Light spot size 3 mm x 9 mm Light spot direction Vertical Receiving filters BP 420 Receiving range 415 nm … 425 nm Adjustment Teach-in button, IO-Link (optional) Output function Light switching Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple < 5 Vpp Current consumption < 100 mA Switching frequency 0.5 kHz 2.5 kHz 6.5 kHz Adjustable Response time 1 ms, 200 µs, 75 µs Switching output PNP Switching output (voltage) PNP: HIGH = UV ≤ 2 V / LOW approx. 0 V Switching mode Light switching Analog output 0 mA … 13 mA Output current Imax. 100 mA Time delay Switch-off delay, 0 ms / 10 ms / 20 ms, adjustable (0 ms = default) Connection type Male connector M12, 4-pin Protection class II Circuit protection UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression Enclosure rating IP67 Weight 400 g Housing material Metal, zinc diecast Communication interface IO-Link ✔ , IO-Link V1.0 VendorID 26 DeviceID HEX 80000F DeviceID DEC 8388623 Cycle time 2.3 ms Process data structure Bit 0 = switching signal QL1 Bit 1 … 5 = empty Bit 6 … 15 = Analog Measurment Value Ambient data Ambient operating temperature –10 °C … +55 °C Ambient temperature, storage –25 °C … +75 °C Shock load According to IEC 60068 Classifications ECLASS 5.0 27270908 ECLASS 5.1.4 27270908 ECLASS 6.0 27270908 ECLASS 6.2 27270908 ECLASS 7.0 27270908 ECLASS 8.0 27270908 ECLASS 8.1 27270908 ECLASS 9.0 27270908 ECLASS 10.0 27270908 ECLASS 11.0 27270908 ECLASS 12.0 27270908 ETIM 5.0 EC001822 ETIM 6.0 EC001822 ETIM 7.0 EC001822 ETIM 8.0 EC001822 UNSPSC 16.0901 39121528 İlgili ürünler SFP MODULE 100BASE-FX, MM 2KM – SFP-100FX-M-2KM-TAdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git 1000Base-EZX Singlemode SFP (110km) – 20 – SFP-GZX/LCI-110EAdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git IE-SFP/1250-ED SSLX-SM1310/PLUS-SC – SFP-GSS-40KTXAdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git IE-SFP/1250-ED SSBX-SM1490-LC – 808-38728AdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git
Tecnichal data Features Dimensions (W x H x D) 30.4 mm x 53 mm x 80 mm Sensing distance 20 mm Housing design Large Working range 10 mm … 40 mm Light source LED, UV Wave length 375 nm Light emission Long side Light spot size 3 mm x 9 mm Light spot direction Vertical Receiving filters BP 420 Receiving range 415 nm … 425 nm Adjustment Teach-in button, IO-Link (optional) Output function Light switching Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple < 5 Vpp Current consumption < 100 mA Switching frequency 0.5 kHz 2.5 kHz 6.5 kHz Adjustable Response time 1 ms, 200 µs, 75 µs Switching output PNP Switching output (voltage) PNP: HIGH = UV ≤ 2 V / LOW approx. 0 V Switching mode Light switching Analog output 0 mA … 13 mA Output current Imax. 100 mA Time delay Switch-off delay, 0 ms / 10 ms / 20 ms, adjustable (0 ms = default) Connection type Male connector M12, 4-pin Protection class II Circuit protection UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression Enclosure rating IP67 Weight 400 g Housing material Metal, zinc diecast Communication interface IO-Link ✔ , IO-Link V1.0 VendorID 26 DeviceID HEX 80000F DeviceID DEC 8388623 Cycle time 2.3 ms Process data structure Bit 0 = switching signal QL1 Bit 1 … 5 = empty Bit 6 … 15 = Analog Measurment Value Ambient data Ambient operating temperature –10 °C … +55 °C Ambient temperature, storage –25 °C … +75 °C Shock load According to IEC 60068 Classifications ECLASS 5.0 27270908 ECLASS 5.1.4 27270908 ECLASS 6.0 27270908 ECLASS 6.2 27270908 ECLASS 7.0 27270908 ECLASS 8.0 27270908 ECLASS 8.1 27270908 ECLASS 9.0 27270908 ECLASS 10.0 27270908 ECLASS 11.0 27270908 ECLASS 12.0 27270908 ETIM 5.0 EC001822 ETIM 6.0 EC001822 ETIM 7.0 EC001822 ETIM 8.0 EC001822 UNSPSC 16.0901 39121528
