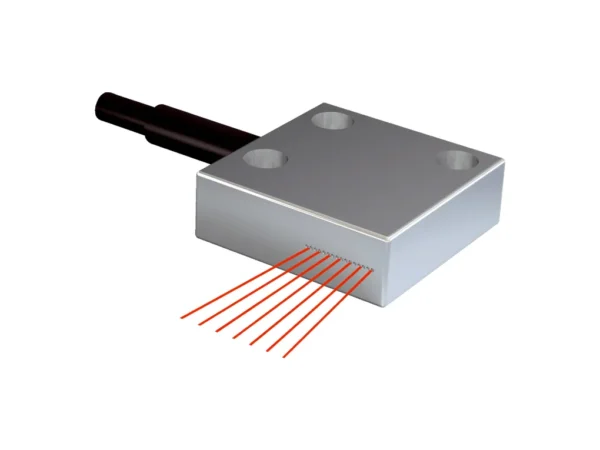

Home Fiber Optik Sensörler LL3-TZ06 LIGHT GUIDE ARRAY – 5325938 🔍 LL3-TZ06 LIGHT GUIDE ARRAY – 5325938 ✉ Teklif Al Teklif Al Stok kodu: 5325938 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Copper-zinc alloy (CuZn) Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Fiber-optic head design Flat type, 90° deflection, Array Array width 5 mm Fiber arrangement Multi-fiber – linear arrangement Core structure 16 x Ø 0,265 mm Multi-fiber – linear arrangement Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Application Area detection Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimal object diameter 0.45 mm Included with delivery FC fiber cutter (5304141) Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 25 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 320 mm Operating mode 70 µs 960 mm Operating mode 250 µs 1,505 mm Operating mode 500 µs 1,835 mm Operating mode 1 ms 2,050 mm Operating mode 2 ms 2,880 mm Operating mode 8 ms 3,600 mm Sensing ranges with WLL180T Operating mode 16 µs 150 mm Operating mode 70 µs 480 mm Operating mode 250 µs 790 mm Operating mode 2 ms 1,500 mm Operating mode 8 ms 1,600 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 550 mm Sensing ranges with GLL170T Operating mode 50 µs 480 mm Operating mode 250 µs 670 mm İlgili ürünler LL3-LM31150 OPTICAL FIBER L=150MM – 2073483SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM36750 OPTICAL FIBER L=750MM – 2073493SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM36150 OPTICAL FIBER L=150MM – 2073491SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM31750 OPTICAL FIBER L=750MM – 2073485SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Copper-zinc alloy (CuZn) Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Fiber-optic head design Flat type, 90° deflection, Array Array width 5 mm Fiber arrangement Multi-fiber – linear arrangement Core structure 16 x Ø 0,265 mm Multi-fiber – linear arrangement Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Application Area detection Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimal object diameter 0.45 mm Included with delivery FC fiber cutter (5304141) Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 25 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 320 mm Operating mode 70 µs 960 mm Operating mode 250 µs 1,505 mm Operating mode 500 µs 1,835 mm Operating mode 1 ms 2,050 mm Operating mode 2 ms 2,880 mm Operating mode 8 ms 3,600 mm Sensing ranges with WLL180T Operating mode 16 µs 150 mm Operating mode 70 µs 480 mm Operating mode 250 µs 790 mm Operating mode 2 ms 1,500 mm Operating mode 8 ms 1,600 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 550 mm Sensing ranges with GLL170T Operating mode 50 µs 480 mm Operating mode 250 µs 670 mm
