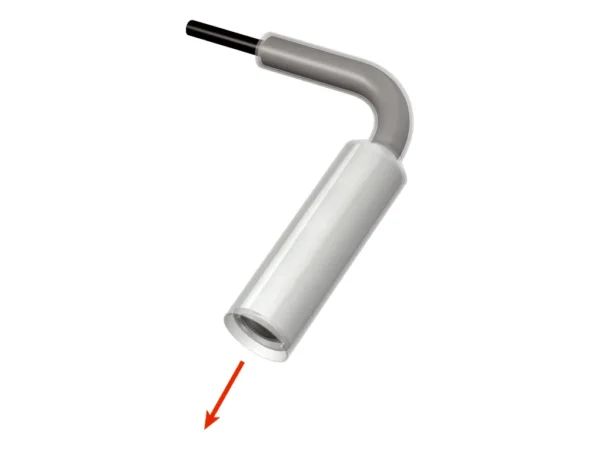

Home Fiber Optik Sensörler LL3-TY036000 LIGHT GUIDE CHEM.RESIST. – 5336504 🔍 LL3-TY036000 LIGHT GUIDE CHEM.RESIST. – 5336504 ✉ Teklif Al Teklif Al Stok kodu: 5336504 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180 Fiber length 6,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polytetrafluorethylen (PTFE) Fiber head material Perfluoralkoxy-Polymere (PFA) Outer diameter, fiber-optic cable connection 1.3 mm Fiber-optic cable cuttable ✔ Smooth sleeve diameter (greatest diameter) 5 mm Fiber-optic head design Smooth sleeve, 90° deflection Fiber arrangement Monofiber Core structure Ø 1,0 mm Monofiber Angle of dispersion < 60° Yes Compatibility with infrared light (1,450 nm) No Application Resistant to oil/chemicals Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required Yes Angle of dispersion 28.07° Integrated lens Yes Minimal object diameter 0.3 mm Included with delivery Adapter sleeves, BF-WLL160-13 (1.3 mm) adapter sleeves, FC fiber cutter (5304141) Compatibility tip adapters No Special features Teflon sheathing: chemically resistant Mechanics/electronics Bend radius, fibre-optic cable 3 mm Ambient operating temperature –55 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL180T Operating mode 16 µs 460 mm Operating mode 70 µs 1,400 mm Operating mode 250 µs 2,500 mm Operating mode 2 ms 4,000 mm Operating mode 8 ms 4,000 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 1,290 mm Sensing ranges with GLL170T Operating mode 50 µs 1,210 mm Operating mode 250 µs 2,120 mm İlgili ürünler LL3-LM361250 OPTICAL FIBER L=1250MM – 2073495SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM35450 OPTICAL FIBER L=450MM – 2073489SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM32750 OPTICAL FIBER L=750MM – 2073500SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM31750 OPTICAL FIBER L=750MM – 2073485SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180 Fiber length 6,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polytetrafluorethylen (PTFE) Fiber head material Perfluoralkoxy-Polymere (PFA) Outer diameter, fiber-optic cable connection 1.3 mm Fiber-optic cable cuttable ✔ Smooth sleeve diameter (greatest diameter) 5 mm Fiber-optic head design Smooth sleeve, 90° deflection Fiber arrangement Monofiber Core structure Ø 1,0 mm Monofiber Angle of dispersion < 60° Yes Compatibility with infrared light (1,450 nm) No Application Resistant to oil/chemicals Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required Yes Angle of dispersion 28.07° Integrated lens Yes Minimal object diameter 0.3 mm Included with delivery Adapter sleeves, BF-WLL160-13 (1.3 mm) adapter sleeves, FC fiber cutter (5304141) Compatibility tip adapters No Special features Teflon sheathing: chemically resistant Mechanics/electronics Bend radius, fibre-optic cable 3 mm Ambient operating temperature –55 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL180T Operating mode 16 µs 460 mm Operating mode 70 µs 1,400 mm Operating mode 250 µs 2,500 mm Operating mode 2 ms 4,000 mm Operating mode 8 ms 4,000 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 1,290 mm Sensing ranges with GLL170T Operating mode 50 µs 1,210 mm Operating mode 250 µs 2,120 mm
