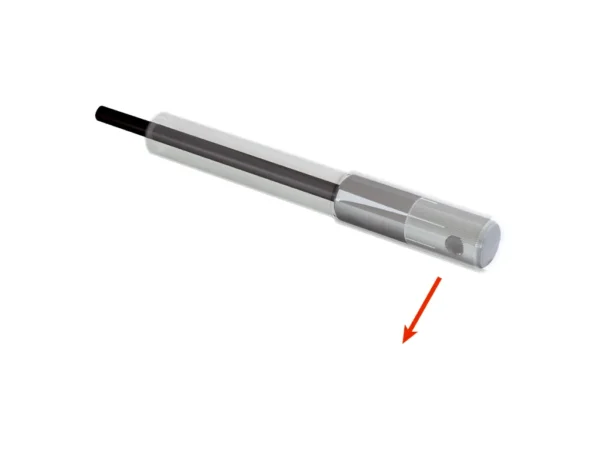

Home Fiber Optik Sensörler LL3-TY02 LIGHT GUIDE – 5308067 🔍 LL3-TY02 LIGHT GUIDE – 5308067 ✉ Teklif Al Teklif Al Stok kodu: 5308067 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polytetrafluorethylen (PTFE) Fiber head material Polytetrafluorethylen (PTFE) Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Smooth sleeve diameter (greatest diameter) 6 mm Fiber-optic head design 90° deflection Fiber arrangement Monofiber Core structure Ø 1,0 mm Monofiber Angle of dispersion < 60° Yes Compatibility with infrared light (1,450 nm) No Application Resistant to oil/chemicals Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 57.62° Integrated lens Yes Minimal object diameter 0.3 mm Included with delivery FC fiber cutter (5304141) Compatibility tip adapters No Special features Teflon sheathing: chemically resistant, 90° deflection Mechanics/electronics Bend radius, fibre-optic cable 60 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 530 mm Operating mode 70 µs 1,555 mm Operating mode 250 µs 2,490 mm Operating mode 500 µs 3,000 mm Operating mode 1 ms 3,375 mm Operating mode 2 ms 3,600 mm Operating mode 8 ms 3,600 mm Sensing ranges with WLL180T Operating mode 16 µs 300 mm Operating mode 70 µs 1,000 mm Operating mode 250 µs 1,300 mm Operating mode 2 ms 3,000 mm Operating mode 8 ms 4,000 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 730 mm Sensing ranges with GLL170T Operating mode 50 µs 800 mm Operating mode 250 µs 940 mm İlgili ürünler LL3-LM32750 OPTICAL FIBER L=750MM – 2073500SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM31750 OPTICAL FIBER L=750MM – 2073485SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM35150 OPTICAL FIBER L=150MM – 2073488SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM36450 OPTICAL FIBER L=450MM – 2073492SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polytetrafluorethylen (PTFE) Fiber head material Polytetrafluorethylen (PTFE) Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Smooth sleeve diameter (greatest diameter) 6 mm Fiber-optic head design 90° deflection Fiber arrangement Monofiber Core structure Ø 1,0 mm Monofiber Angle of dispersion < 60° Yes Compatibility with infrared light (1,450 nm) No Application Resistant to oil/chemicals Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 57.62° Integrated lens Yes Minimal object diameter 0.3 mm Included with delivery FC fiber cutter (5304141) Compatibility tip adapters No Special features Teflon sheathing: chemically resistant, 90° deflection Mechanics/electronics Bend radius, fibre-optic cable 60 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 530 mm Operating mode 70 µs 1,555 mm Operating mode 250 µs 2,490 mm Operating mode 500 µs 3,000 mm Operating mode 1 ms 3,375 mm Operating mode 2 ms 3,600 mm Operating mode 8 ms 3,600 mm Sensing ranges with WLL180T Operating mode 16 µs 300 mm Operating mode 70 µs 1,000 mm Operating mode 250 µs 1,300 mm Operating mode 2 ms 3,000 mm Operating mode 8 ms 4,000 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 730 mm Sensing ranges with GLL170T Operating mode 50 µs 800 mm Operating mode 250 µs 940 mm
