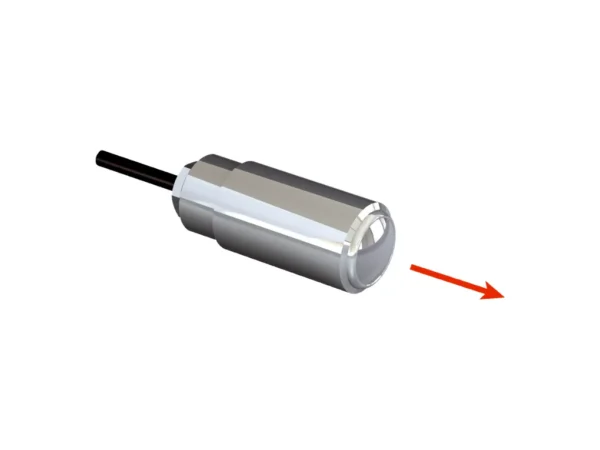

Home Fiber Optik Sensörler LL3-TX03-01 LIGHT GUIDE – 5328257 🔍 LL3-TX03-01 LIGHT GUIDE – 5328257 ✉ Teklif Al Teklif Al Stok kodu: 5328257 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180 Fiber length 1,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Stainless steel Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 2.2 mm Thread diameter (housing) M12 Fiber-optic head design Threaded sleeve Fiber arrangement Monofiber Core structure Ø 1.5 mm Monofiber Angle of dispersion < 60° Yes Compatibility with infrared light (1,450 nm) No Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 11.42° Integrated lens Yes Minimal object diameter 0.5 mm Included with delivery Mounting, 4 x M12 hexagon nut, FC fiber cutter (5304141), protective cladding for fiber head Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 30 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL180T Operating mode 16 µs 2,000 mm Operating mode 70 µs 2,000 mm Operating mode 250 µs 2,000 mm Operating mode 2 ms 2,000 mm Operating mode 8 ms 2,000 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light İlgili ürünler LL3-LM31450 OPTICAL FIBER L=450MM – 2073484SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git ControlNet Fiber Ring Ex Long Repeater – 1786-RPFRXLALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM35150 OPTICAL FIBER L=150MM – 2073488SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-DL07 – 1094996SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180 Fiber length 1,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Stainless steel Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 2.2 mm Thread diameter (housing) M12 Fiber-optic head design Threaded sleeve Fiber arrangement Monofiber Core structure Ø 1.5 mm Monofiber Angle of dispersion < 60° Yes Compatibility with infrared light (1,450 nm) No Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 11.42° Integrated lens Yes Minimal object diameter 0.5 mm Included with delivery Mounting, 4 x M12 hexagon nut, FC fiber cutter (5304141), protective cladding for fiber head Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 30 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL180T Operating mode 16 µs 2,000 mm Operating mode 70 µs 2,000 mm Operating mode 250 µs 2,000 mm Operating mode 2 ms 2,000 mm Operating mode 8 ms 2,000 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light
