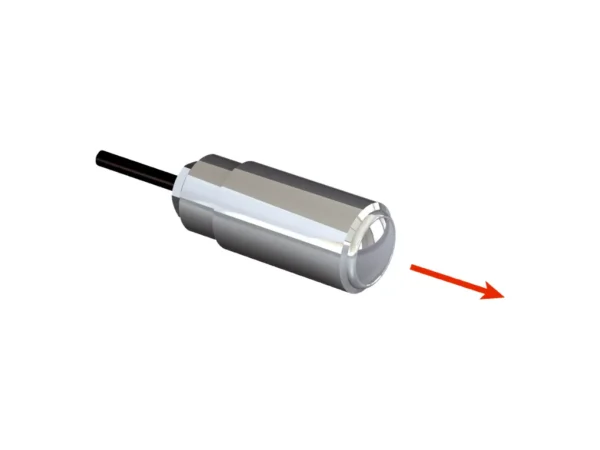

Home Fiber Optik Sensörler LL3-TX02 LIGHT GUIDE – 5325046 🔍 LL3-TX02 LIGHT GUIDE – 5325046 ✉ Teklif Al Teklif Al Stok kodu: 5325046 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex, WLL80 Fiber length 20,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) / Polyvinylchlorid (PVC) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Thread diameter (housing) M12 Fiber-optic head design Threaded sleeve Fiber arrangement Monofiber Core structure Ø 1.5 mm Monofiber Angle of dispersion < 60° Yes Compatibility with infrared light (1,450 nm) No Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 11.42° Integrated lens Yes Minimal object diameter 0.5 mm Included with delivery Mounting, 4 x M12 hexagon nut, FC fiber cutter (5304141), protective cladding for fiber head Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 25 mm Ambient operating temperature –40 °C … +60 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 6,900 mm Operating mode 70 µs 23,000 mm Operating mode 250 µs 32,630 mm Operating mode 500 µs 38,000 mm Operating mode 1 ms 38,000 mm Operating mode 2 ms 38,000 mm Operating mode 8 ms 38,000 mm Sensing ranges with WLL180T Operating mode 16 µs 1,800 mm Operating mode 70 µs 7,000 mm Operating mode 250 µs 12,000 mm Operating mode 2 ms 25,000 mm Operating mode 8 ms 38,000 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 2,700 mm Sensing ranges with GLL170T Operating mode 50 µs 6,890 mm Operating mode 250 µs 10,810 mm İlgili ürünler LL3-LM32450 OPTICAL FIBER L=450MM – 2073499SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM36750 OPTICAL FIBER L=750MM – 2073493SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM35750 OPTICAL FIBER L=750MM – 2073490SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM361000 OPTICAL FIBER L=1000MM – 2073494SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex, WLL80 Fiber length 20,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) / Polyvinylchlorid (PVC) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Thread diameter (housing) M12 Fiber-optic head design Threaded sleeve Fiber arrangement Monofiber Core structure Ø 1.5 mm Monofiber Angle of dispersion < 60° Yes Compatibility with infrared light (1,450 nm) No Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 11.42° Integrated lens Yes Minimal object diameter 0.5 mm Included with delivery Mounting, 4 x M12 hexagon nut, FC fiber cutter (5304141), protective cladding for fiber head Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 25 mm Ambient operating temperature –40 °C … +60 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 6,900 mm Operating mode 70 µs 23,000 mm Operating mode 250 µs 32,630 mm Operating mode 500 µs 38,000 mm Operating mode 1 ms 38,000 mm Operating mode 2 ms 38,000 mm Operating mode 8 ms 38,000 mm Sensing ranges with WLL180T Operating mode 16 µs 1,800 mm Operating mode 70 µs 7,000 mm Operating mode 250 µs 12,000 mm Operating mode 2 ms 25,000 mm Operating mode 8 ms 38,000 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 2,700 mm Sensing ranges with GLL170T Operating mode 50 µs 6,890 mm Operating mode 250 µs 10,810 mm
