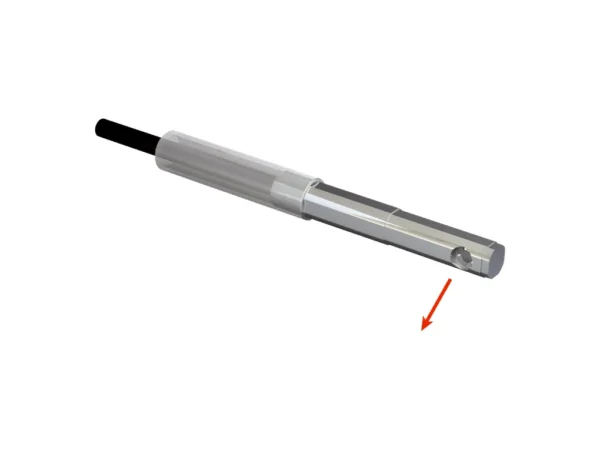

Home Fiber Optik Sensörler LL3-TV08 LIGHT GUIDE CYLINDR. TYPE – 5325922 🔍 LL3-TV08 LIGHT GUIDE CYLINDR. TYPE – 5325922 ✉ Teklif Al Teklif Al Stok kodu: 5325922 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Smooth sleeve diameter (greatest diameter) 2 mm Fiber-optic head design Smooth sleeve, Long end sleeve, 90° deflection Fiber arrangement Monofiber Core structure Ø 1,0 mm Monofiber Angle of dispersion < 60° Yes Compatibility with infrared light (1,450 nm) No Diameter/thread size from 2 mm taper ≥ 1 mm Length of taper ≥ 15 mm Diameter of taper ≥ 1 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 6.87° Integrated lens Yes Minimal object diameter 0.05 mm Included with delivery FC fiber cutter (5304141) Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 25 mm Ambient operating temperature –40 °C … +60 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 1,280 mm Operating mode 70 µs 3,600 mm Operating mode 250 µs 3,600 mm Operating mode 500 µs 3,600 mm Operating mode 1 ms 3,600 mm Operating mode 2 ms 3,600 mm Operating mode 8 ms 3,600 mm Sensing ranges with WLL180T Operating mode 16 µs 590 mm Operating mode 70 µs 1,790 mm Operating mode 250 µs 2,400 mm Operating mode 2 ms 4,000 mm Operating mode 8 ms 4,000 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 1,690 mm Sensing ranges with GLL170T Operating mode 50 µs 1,760 mm Operating mode 250 µs 2,060 mm İlgili ürünler LL3-LM35450 OPTICAL FIBER L=450MM – 2073489SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM36750 OPTICAL FIBER L=750MM – 2073493SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM36150 OPTICAL FIBER L=150MM – 2073491SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM35750 OPTICAL FIBER L=750MM – 2073490SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Smooth sleeve diameter (greatest diameter) 2 mm Fiber-optic head design Smooth sleeve, Long end sleeve, 90° deflection Fiber arrangement Monofiber Core structure Ø 1,0 mm Monofiber Angle of dispersion < 60° Yes Compatibility with infrared light (1,450 nm) No Diameter/thread size from 2 mm taper ≥ 1 mm Length of taper ≥ 15 mm Diameter of taper ≥ 1 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 6.87° Integrated lens Yes Minimal object diameter 0.05 mm Included with delivery FC fiber cutter (5304141) Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 25 mm Ambient operating temperature –40 °C … +60 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 1,280 mm Operating mode 70 µs 3,600 mm Operating mode 250 µs 3,600 mm Operating mode 500 µs 3,600 mm Operating mode 1 ms 3,600 mm Operating mode 2 ms 3,600 mm Operating mode 8 ms 3,600 mm Sensing ranges with WLL180T Operating mode 16 µs 590 mm Operating mode 70 µs 1,790 mm Operating mode 250 µs 2,400 mm Operating mode 2 ms 4,000 mm Operating mode 8 ms 4,000 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 1,690 mm Sensing ranges with GLL170T Operating mode 50 µs 1,760 mm Operating mode 250 µs 2,060 mm
