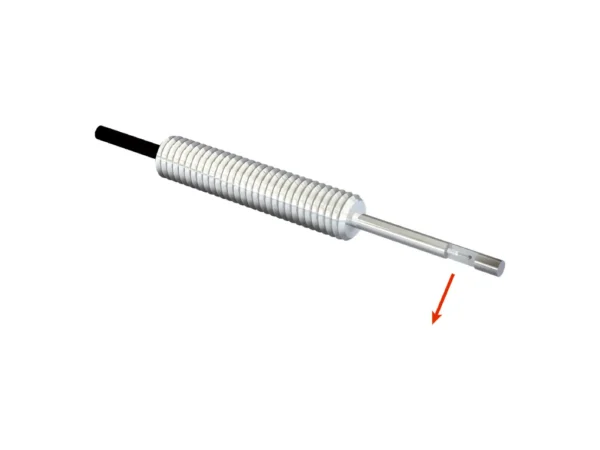

Home Fiber Optik Sensörler LL3-TV04 LIGHT GUIDE – 5308060 🔍 LL3-TV04 LIGHT GUIDE – 5308060 ✉ Teklif Al Teklif Al Stok kodu: 5308060 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 1 mm Fiber-optic cable cuttable ✔ Thread diameter (housing) M3 Fiber-optic head design Threaded sleeve, Long end sleeve, 90° deflection Fiber arrangement Monofiber Core structure Ø 0,5 mm Monofiber Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Diameter/thread size from 2 mm taper ≥ 1 mm Length of taper ≥ 10 mm Diameter of taper ≥ 1 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required Yes Angle of dispersion 60° Integrated lens No Minimal object diameter 0.1 mm Included with delivery Mounting, 4 x M3 hexagon nut, 4 x washer, adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter (5304141) Compatibility tip adapters No Special features 90° deflection, compact, M3 Mechanics/electronics Bend radius, fibre-optic cable 15 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 75 mm Operating mode 70 µs 240 mm Operating mode 250 µs 375 mm Operating mode 500 µs 480 mm Operating mode 1 ms 540 mm Operating mode 2 ms 725 mm Operating mode 8 ms 1,070 mm Sensing ranges with WLL180T Operating mode 16 µs 30 mm Operating mode 70 µs 130 mm Operating mode 250 µs 250 mm Operating mode 2 ms 550 mm Operating mode 8 ms 800 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 80 mm Sensing ranges with GLL170T Operating mode 50 µs 110 mm Operating mode 250 µs 170 mm İlgili ürünler LL3-LT312200 OPTICAL FIBER L=2200MM – 2073487SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM36450 OPTICAL FIBER L=450MM – 2073492SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM361000 OPTICAL FIBER L=1000MM – 2073494SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git Networks and Communication Products, ControlNet Medium-distance Fiber Module – 1786-RPFMALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 1 mm Fiber-optic cable cuttable ✔ Thread diameter (housing) M3 Fiber-optic head design Threaded sleeve, Long end sleeve, 90° deflection Fiber arrangement Monofiber Core structure Ø 0,5 mm Monofiber Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Diameter/thread size from 2 mm taper ≥ 1 mm Length of taper ≥ 10 mm Diameter of taper ≥ 1 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required Yes Angle of dispersion 60° Integrated lens No Minimal object diameter 0.1 mm Included with delivery Mounting, 4 x M3 hexagon nut, 4 x washer, adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter (5304141) Compatibility tip adapters No Special features 90° deflection, compact, M3 Mechanics/electronics Bend radius, fibre-optic cable 15 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 75 mm Operating mode 70 µs 240 mm Operating mode 250 µs 375 mm Operating mode 500 µs 480 mm Operating mode 1 ms 540 mm Operating mode 2 ms 725 mm Operating mode 8 ms 1,070 mm Sensing ranges with WLL180T Operating mode 16 µs 30 mm Operating mode 70 µs 130 mm Operating mode 250 µs 250 mm Operating mode 2 ms 550 mm Operating mode 8 ms 800 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 80 mm Sensing ranges with GLL170T Operating mode 50 µs 110 mm Operating mode 250 µs 170 mm
