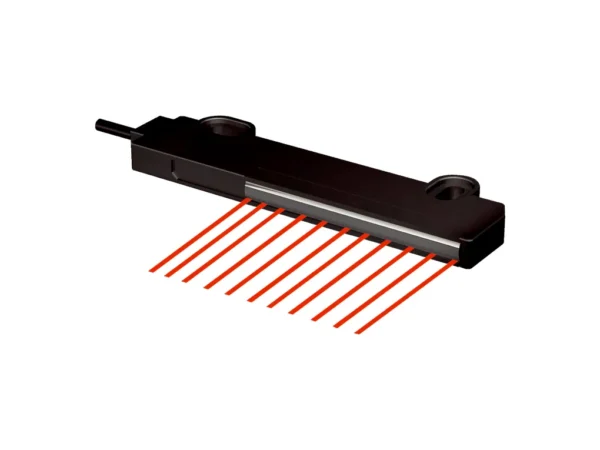

| Features |
| Device type |
Fibers |
| Functional principle |
Through-beam system |
| Functional principle detail |
Consisting of a sender and a receiver |
| For fiber-optic sensor |
GLL170(T), WLL180, WLL24 Ex, WLL80 |
| Fiber length |
2,000 mm |
| Fiber material |
Polymethylmethacrylat (PMMA) |
| Jacket material |
Polyethylen (PE) |
| Fiber head material |
Polyamid (PA) |
| Outer diameter, fiber-optic cable connection |
2.2 mm |
| Fiber-optic cable cuttable |
✔ |
| Fiber-optic head design |
Flat type, 90° deflection, Array |
| Array width |
40 mm |
| Fiber arrangement |
Multi-fiber – linear arrangement |
| Core structure |
Ø 1,0 mm Multi-fiber – linear arrangement |
| Angle of dispersion < 60° |
Yes |
| Compatibility with infrared light (1,450 nm) |
No |
| Application |
High flexible (static), Area detection |
| Highly flexible/elastic fibers (bend radius 1–4 mm) |
No |
| Adapter end sleeves required |
No |
| Angle of dispersion |
24.27° |
| Integrated lens |
Yes |
| Minimal object diameter |
0.4 mm |
| Included with delivery |
Mounting, 4 x M3 Phillips-head screw, FC fiber cutter (5304141), protective cladding for fiber head |
| Compatibility tip adapters |
No |
| Special features |
Long fiber optic cable cell |
|
| Mechanics/electronics |
| Bend radius, fibre-optic cable |
2 mm |
| Ambient operating temperature |
–40 °C … +60 °C |
|
| Classifications |
| ECLASS 5.0 |
27270905 |
| ECLASS 5.1.4 |
27270905 |
| ECLASS 6.0 |
27270905 |
| ECLASS 6.2 |
27270905 |
| ECLASS 7.0 |
27270905 |
| ECLASS 8.0 |
27270905 |
| ECLASS 8.1 |
27270905 |
| ECLASS 9.0 |
27270905 |
| ECLASS 10.0 |
27270905 |
| ECLASS 11.0 |
27270905 |
| ECLASS 12.0 |
27270905 |
| ETIM 5.0 |
EC002651 |
| ETIM 6.0 |
EC002651 |
| ETIM 7.0 |
EC002651 |
| ETIM 8.0 |
EC002651 |
| UNSPSC 16.0901 |
39121528 |
|
| Sensing ranges with WLL80 |
| Operating mode 16 µs |
3,600 mm |
| Operating mode 70 µs |
3,600 mm |
| Operating mode 250 µs |
3,600 mm |
| Operating mode 500 µs |
3,600 mm |
| Operating mode 1 ms |
3,600 mm |
| Operating mode 2 ms |
3,600 mm |
| Operating mode 8 ms |
3,600 mm |
|
| Sensing ranges with WLL180T |
| Operating mode 16 µs |
3,000 mm |
| Operating mode 70 µs |
4,000 mm |
| Operating mode 250 µs |
4,000 mm |
| Operating mode 2 ms |
4,000 mm |
| Operating mode 8 ms |
4,000 mm |
| Note |
Sensing ranges related to fiber-optic sensors with type of light: visible red light |
|
| Sensing ranges with GLL170 |
| Operating mode 250 µs |
3,500 mm |
|
| Sensing ranges with GLL170T |
| Operating mode 50 µs |
3,500 mm |
| Operating mode 250 µs |
3,500 mm |
|
