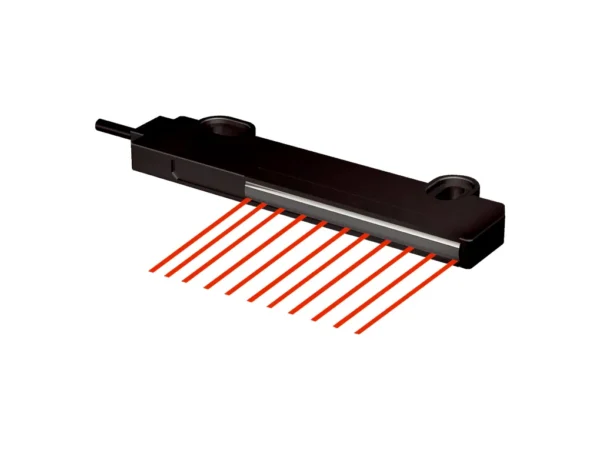

Home Fiber Optik Sensörler LL3-TS40-5 LIGHT GUIDE ARRAY – 5328527 🔍 LL3-TS40-5 LIGHT GUIDE ARRAY – 5328527 ✉ Teklif Al Teklif Al Stok kodu: 5328527 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex Fiber length 5,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Polyamid (PA) Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Fiber-optic head design Flat type, 90° deflection, Array Array width 40 mm Fiber arrangement Multi-fiber – linear arrangement Core structure Ø 1,0 mm Multi-fiber – linear arrangement Angle of dispersion < 60° Yes Compatibility with infrared light (1,450 nm) No Application High flexible (static), Area detection Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 24.27° Integrated lens Yes Minimal object diameter 0.4 mm Included with delivery Mounting, 4 x M4 Phillips-head screw, FC fiber cutter (5304141), protective cladding for fiber head Compatibility tip adapters No Special features Long fiber optic cable cell Mechanics/electronics Bend radius, fibre-optic cable 2 mm Ambient operating temperature –40 °C … +60 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL180T Operating mode 16 µs 3,000 mm Operating mode 70 µs 4,000 mm Operating mode 250 µs 4,000 mm Operating mode 2 ms 4,000 mm Operating mode 8 ms 4,000 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light İlgili ürünler LL3-LM31750 OPTICAL FIBER L=750MM – 2073485SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM37750 OPTICAL FIBER L=750MM – 2073498SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM31150 OPTICAL FIBER L=150MM – 2073483SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM32450 OPTICAL FIBER L=450MM – 2073499SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex Fiber length 5,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Polyamid (PA) Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Fiber-optic head design Flat type, 90° deflection, Array Array width 40 mm Fiber arrangement Multi-fiber – linear arrangement Core structure Ø 1,0 mm Multi-fiber – linear arrangement Angle of dispersion < 60° Yes Compatibility with infrared light (1,450 nm) No Application High flexible (static), Area detection Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 24.27° Integrated lens Yes Minimal object diameter 0.4 mm Included with delivery Mounting, 4 x M4 Phillips-head screw, FC fiber cutter (5304141), protective cladding for fiber head Compatibility tip adapters No Special features Long fiber optic cable cell Mechanics/electronics Bend radius, fibre-optic cable 2 mm Ambient operating temperature –40 °C … +60 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL180T Operating mode 16 µs 3,000 mm Operating mode 70 µs 4,000 mm Operating mode 250 µs 4,000 mm Operating mode 2 ms 4,000 mm Operating mode 8 ms 4,000 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light
