Name: SICK 5308062 | Fiber Optik Sensör | Royal Endüstriyel
Brand: SICK
SKU: 5308062
Price: 4500.00 TRY
Availability: InStock

Tecnichal data

Features

Device type	Fibers
Functional principle	Through-beam system
Functional principle detail	Consisting of a sender and a receiver
For fiber-optic sensor	GLL170(T), WLL180, WLL24 Ex, WLL80
Fiber length	2,000 mm
Fiber material	Polymethylmethacrylat (PMMA)
Jacket material	Polyethylen (PE)
Fiber head material	Stainless steel
Outer diameter, fiber-optic cable connection	2.2 mm
Fiber-optic cable cuttable	✔
Fiber-optic head design	90° deflection
Fiber arrangement	Monofiber
Core structure	Ø 0,75 mm Monofiber
Angle of dispersion < 60°	Yes
Compatibility with infrared light (1,450 nm)	No
Highly flexible/elastic fibers (bend radius 1–4 mm)	No
Adapter end sleeves required	No
Angle of dispersion	8.58°
Integrated lens	Yes
Minimal object diameter	0.5 mm
Included with delivery	Mounting, 2 x terminal, FC fiber cutter (5304141), protective cladding for fiber head
Compatibility tip adapters	No
Special features	90° deflection integrated, large sensing range

Mechanics/electronics

Bend radius, fibre-optic cable	25 mm
Ambient operating temperature	–40 °C … +70 °C

Classifications

Sensing ranges with WLL80

Sensing ranges with WLL180T

Operating mode 16 µs	170 mm
Operating mode 70 µs	550 mm
Operating mode 250 µs	1,000 mm
Operating mode 2 ms	2,300 mm
Operating mode 8 ms	3,000 mm
Note	Sensing ranges related to fiber-optic sensors with type of light: visible red light

Sensing ranges with GLL170

Operating mode 250 µs

3,500 mm

Sensing ranges with GLL170T

Operating mode 50 µs	3,500 mm
Operating mode 250 µs	3,500 mm

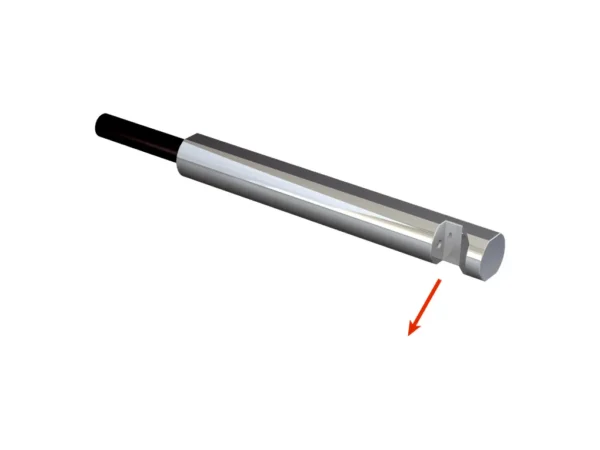

LL3-TS12 LIGHT GUIDE – 5308062
