Name: SICK 5338673 | Fiber Optik Sensör | Royal Endüstriyel
Brand: SICK
SKU: 5338673
Price: 4500.00 TRY
Availability: InStock

Tecnichal data

Features

Device type	Fibers
Functional principle	Through-beam system
Functional principle detail	Consisting of a sender and a receiver
For fiber-optic sensor	GLL170(T), WLL180, WLL24 Ex
Fiber length	2,000 mm
Fiber material	Polymethylmethacrylat (PMMA)
Jacket material	Polyethylen (PE)
Fiber head material	Zinc alloy
Outer diameter, fiber-optic cable connection	2.2 mm
Fiber-optic cable cuttable	✔
Fiber-optic head design	Flat type, 90° deflection, Array
Array width	100 mm
Fiber arrangement	Multi-fiber – linear arrangement
Core structure	125 x Ø 0,25 mm Multi-fiber – linear arrangement
Angle of dispersion < 60°	No
Compatibility with infrared light (1,450 nm)	No
Application	Area detection
Highly flexible/elastic fibers (bend radius 1–4 mm)	No
Adapter end sleeves required	No
Angle of dispersion	60°
Integrated lens	No
Minimal object diameter	0.45 mm
Included with delivery	FC fiber cutter (5304141)
Compatibility tip adapters	No

Mechanics/electronics

Bend radius, fibre-optic cable	40 mm
Ambient operating temperature	–55 °C … +70 °C

Classifications

Sensing ranges with WLL180T

Operating mode 16 µs	200 mm
Operating mode 70 µs	550 mm
Operating mode 250 µs	1,000 mm
Operating mode 2 ms	2,400 mm
Operating mode 8 ms	3,200 mm
Note	Sensing ranges related to fiber-optic sensors with type of light: visible red light

Sensing ranges with GLL170

Operating mode 250 µs

400 mm

Sensing ranges with GLL170T

Operating mode 50 µs	250 mm
Operating mode 250 µs	420 mm

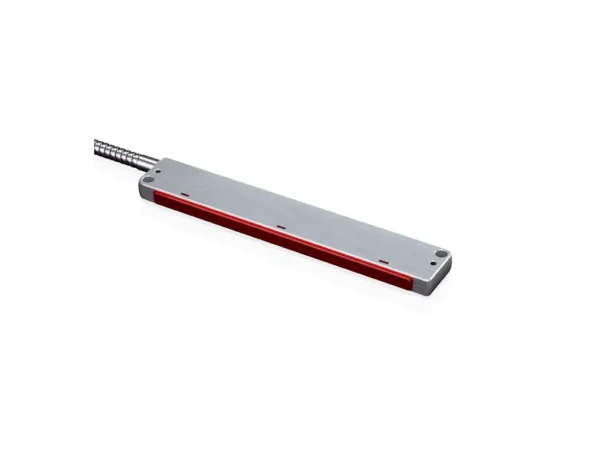

LL3-TS11 LIGHT GUIDE – 5338673
