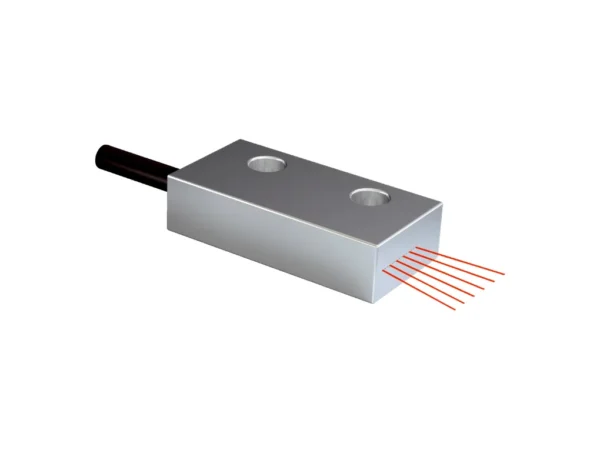

Home Fiber Optik Sensörler LL3-TS10 LIGHT GUIDE – 5308063 🔍 LL3-TS10 LIGHT GUIDE – 5308063 ✉ Teklif Al Teklif Al Stok kodu: 5308063 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Copper-zinc alloy (CuZn) Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Fiber-optic head design Flat type, 90° deflection, Array Array width 5 mm Fiber arrangement Multi-fiber – linear arrangement Core structure 16 x Ø 0,25 mm Multi-fiber – linear arrangement Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Application Area detection Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimal object diameter 1 mm Included with delivery FC fiber cutter (5304141) Compatibility tip adapters No Special features Small fiber optic cable cell Mechanics/electronics Bend radius, fibre-optic cable 25 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 165 mm Operating mode 70 µs 490 mm Operating mode 250 µs 775 mm Operating mode 500 µs 955 mm Operating mode 1 ms 1,080 mm Operating mode 2 ms 1,600 mm Operating mode 8 ms 2,530 mm Sensing ranges with WLL180T Operating mode 16 µs 130 mm Operating mode 70 µs 400 mm Operating mode 250 µs 800 mm Operating mode 2 ms 2,000 mm Operating mode 8 ms 3,500 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 220 mm Sensing ranges with GLL170T Operating mode 50 µs 230 mm Operating mode 250 µs 370 mm İlgili ürünler Networks and Communication Products, ControlNet Medium-distance Fiber Module – 1786-RPFMALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LT312200 OPTICAL FIBER L=2200MM – 2073487SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git SynchLink Fiber 4 Port Splitter Block – 1751-SL4SPALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM36150 OPTICAL FIBER L=150MM – 2073491SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Copper-zinc alloy (CuZn) Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Fiber-optic head design Flat type, 90° deflection, Array Array width 5 mm Fiber arrangement Multi-fiber – linear arrangement Core structure 16 x Ø 0,25 mm Multi-fiber – linear arrangement Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Application Area detection Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimal object diameter 1 mm Included with delivery FC fiber cutter (5304141) Compatibility tip adapters No Special features Small fiber optic cable cell Mechanics/electronics Bend radius, fibre-optic cable 25 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 165 mm Operating mode 70 µs 490 mm Operating mode 250 µs 775 mm Operating mode 500 µs 955 mm Operating mode 1 ms 1,080 mm Operating mode 2 ms 1,600 mm Operating mode 8 ms 2,530 mm Sensing ranges with WLL180T Operating mode 16 µs 130 mm Operating mode 70 µs 400 mm Operating mode 250 µs 800 mm Operating mode 2 ms 2,000 mm Operating mode 8 ms 3,500 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 220 mm Sensing ranges with GLL170T Operating mode 50 µs 230 mm Operating mode 250 µs 370 mm
