Name: SICK 5334043 | Fiber Optik Sensör | Royal Endüstriyel
Brand: SICK
SKU: 5334043
Price: 4500.00 TRY
Availability: InStock

Tecnichal data

Features

Device type	Fibers
Functional principle	Through-beam system
Functional principle detail	Consisting of a sender and a receiver
For fiber-optic sensor	GLL170(T), WLL180, WLL24 Ex
Fiber length	2,000 mm
Fiber material	Polymethylmethacrylat (PMMA)
Jacket material	Polyethylen (PE)
Fiber head material	Stainless steel
Outer diameter, fiber-optic cable connection	2.2 mm
Fiber-optic cable cuttable	✔
Fiber-optic head design	Flat type, 90° deflection, Array
Array width	4 mm
Fiber arrangement	Multi-fiber – linear arrangement
Core structure	16 x Ø 0,265 mm Multi-fiber – linear arrangement
Compatibility with infrared light (1,450 nm)	No
Application	High flexible (static), Area detection
Highly flexible/elastic fibers (bend radius 1–4 mm)	No
Adapter end sleeves required	No
Minimal object diameter	0.2 mm
Compatibility tip adapters	No
Special features	Small fiber optic cable cell

Mechanics/electronics

Bend radius, fibre-optic cable	5 mm
Ambient operating temperature	–55 °C … +70 °C

Classifications

Sensing ranges with WLL180T

Operating mode 16 µs	210 mm
Operating mode 70 µs	560 mm
Operating mode 250 µs	1,020 mm
Operating mode 2 ms	1,780 mm
Operating mode 8 ms	2,650 mm
Note	Sensing ranges related to fiber-optic sensors with type of light: visible red light

Sensing ranges with GLL170

Operating mode 250 µs

86 mm

Sensing ranges with GLL170T

Operating mode 50 µs	480 mm
Operating mode 250 µs	804 mm

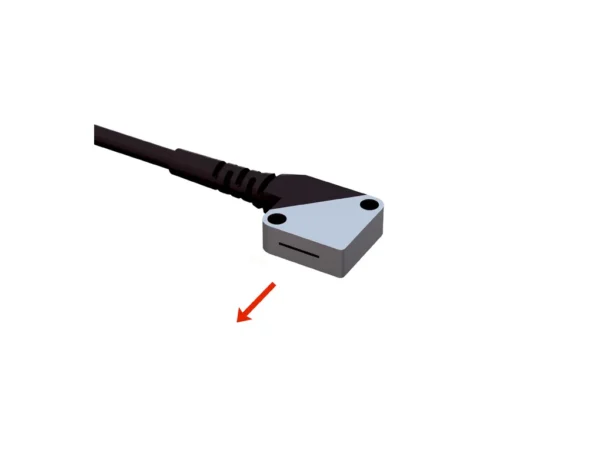

LL3-TS05 LIGHT GUIDE – 5334043
