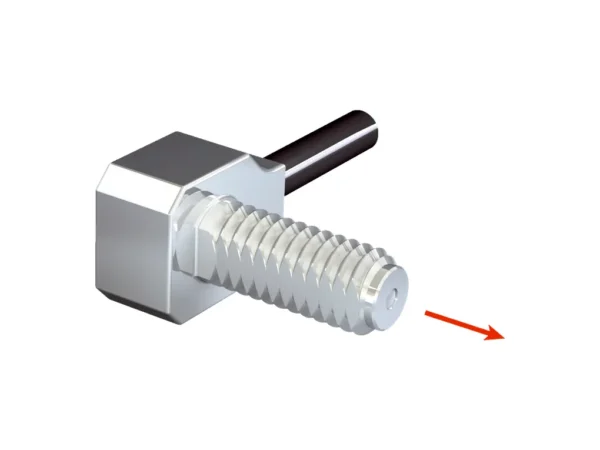

Home Fiber Optik Sensörler LL3-TR08 LIGHT GUIDE – 5325984 🔍 LL3-TR08 LIGHT GUIDE – 5325984 ✉ Teklif Al Teklif Al Stok kodu: 5325984 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Zinc with nickel coating Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Thread diameter (housing) M4 Fiber-optic head design Threaded sleeve, 90° deflection Fiber arrangement Multi-fiber – fiber bundle Core structure 151 x Ø 0,075 mm Multi-fiber – fiber bundle Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Application Lcd / clear material / semiconductor, high flexible (static) Highly flexible/elastic fibers (bend radius 1–4 mm) Yes Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimal object diameter 0.06 mm Included with delivery Mounting, 2 x M4 hexagon nut, 2 x washer, FC fiber cutter (5304141) Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 1 mm Ambient operating temperature –40 °C … +60 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 320 mm Operating mode 70 µs 925 mm Operating mode 250 µs 1,465 mm Operating mode 500 µs 1,800 mm Operating mode 1 ms 1,980 mm Operating mode 2 ms 2,800 mm Operating mode 8 ms 3,600 mm Sensing ranges with WLL180T Operating mode 16 µs 160 mm Operating mode 70 µs 480 mm Operating mode 250 µs 800 mm Operating mode 2 ms 1,600 mm Operating mode 8 ms 1,700 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 560 mm Sensing ranges with GLL170T Operating mode 50 µs 470 mm Operating mode 250 µs 690 mm İlgili ürünler LL3-LM32750 OPTICAL FIBER L=750MM – 2073500SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM36750 OPTICAL FIBER L=750MM – 2073493SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM35750 OPTICAL FIBER L=750MM – 2073490SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM36450 OPTICAL FIBER L=450MM – 2073492SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Zinc with nickel coating Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Thread diameter (housing) M4 Fiber-optic head design Threaded sleeve, 90° deflection Fiber arrangement Multi-fiber – fiber bundle Core structure 151 x Ø 0,075 mm Multi-fiber – fiber bundle Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Application Lcd / clear material / semiconductor, high flexible (static) Highly flexible/elastic fibers (bend radius 1–4 mm) Yes Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimal object diameter 0.06 mm Included with delivery Mounting, 2 x M4 hexagon nut, 2 x washer, FC fiber cutter (5304141) Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 1 mm Ambient operating temperature –40 °C … +60 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 320 mm Operating mode 70 µs 925 mm Operating mode 250 µs 1,465 mm Operating mode 500 µs 1,800 mm Operating mode 1 ms 1,980 mm Operating mode 2 ms 2,800 mm Operating mode 8 ms 3,600 mm Sensing ranges with WLL180T Operating mode 16 µs 160 mm Operating mode 70 µs 480 mm Operating mode 250 µs 800 mm Operating mode 2 ms 1,600 mm Operating mode 8 ms 1,700 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 560 mm Sensing ranges with GLL170T Operating mode 50 µs 470 mm Operating mode 250 µs 690 mm
