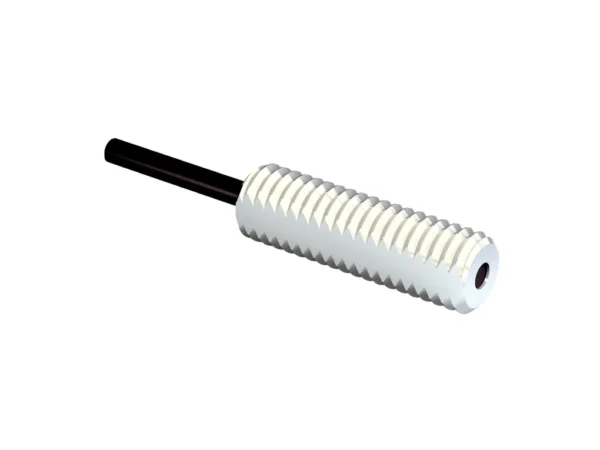

Home Fiber Optik Sensörler LL3-TR02 LIGHT GUIDE 2M0 ONE WAY – 5308053 🔍 LL3-TR02 LIGHT GUIDE 2M0 ONE WAY – 5308053 ✉ Teklif Al Teklif Al Stok kodu: 5308053 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 1 mm Fiber-optic cable cuttable ✔ Thread diameter (housing) M3 Fiber-optic head design Threaded sleeve Fiber arrangement Multi-fiber – fiber bundle Core structure 4 x Ø 0.25 mm Multi-fiber – fiber bundle Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Application High flexible (static), Robotics (dynamic flexible) Highly flexible/elastic fibers (bend radius 1–4 mm) Yes Adapter end sleeves required Yes Angle of dispersion 60° Integrated lens No Minimal object diameter 0.1 mm Included with delivery Mounting, 4 x M3 hexagon nut, 4 x washer, adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter (5304141) Compatibility tip adapters No Special features Flexible fiber-optic cable, extra-small end sleeve Mechanics/electronics Bend radius, fibre-optic cable 4 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 85 mm Operating mode 70 µs 265 mm Operating mode 250 µs 420 mm Operating mode 500 µs 525 mm Operating mode 1 ms 595 mm Operating mode 2 ms 865 mm Operating mode 8 ms 1,310 mm Sensing ranges with WLL180T Operating mode 16 µs 60 mm Operating mode 70 µs 175 mm Operating mode 250 µs 330 mm Operating mode 2 ms 750 mm Operating mode 8 ms 1,100 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 130 mm Sensing ranges with GLL170T Operating mode 50 µs 100 mm Operating mode 250 µs 180 mm İlgili ürünler SynchLink Fiber 4 Port Splitter Block – 1751-SL4SPALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LT312200 OPTICAL FIBER L=2200MM – 2073487SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM36450 OPTICAL FIBER L=450MM – 2073492SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git Photo Sensor, Background Suppression, Infrared LED, Complementary Light or Dark Operate, Auto PNP or NPN Output with IO-Link, No Physical Adjustment, 400 mm Sensing Range, 4-pin DC Micro(M12) on a 150 mm (6 in.) Pigtail – 42AF-B1MAB1-F4ALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 1 mm Fiber-optic cable cuttable ✔ Thread diameter (housing) M3 Fiber-optic head design Threaded sleeve Fiber arrangement Multi-fiber – fiber bundle Core structure 4 x Ø 0.25 mm Multi-fiber – fiber bundle Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Application High flexible (static), Robotics (dynamic flexible) Highly flexible/elastic fibers (bend radius 1–4 mm) Yes Adapter end sleeves required Yes Angle of dispersion 60° Integrated lens No Minimal object diameter 0.1 mm Included with delivery Mounting, 4 x M3 hexagon nut, 4 x washer, adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter (5304141) Compatibility tip adapters No Special features Flexible fiber-optic cable, extra-small end sleeve Mechanics/electronics Bend radius, fibre-optic cable 4 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 85 mm Operating mode 70 µs 265 mm Operating mode 250 µs 420 mm Operating mode 500 µs 525 mm Operating mode 1 ms 595 mm Operating mode 2 ms 865 mm Operating mode 8 ms 1,310 mm Sensing ranges with WLL180T Operating mode 16 µs 60 mm Operating mode 70 µs 175 mm Operating mode 250 µs 330 mm Operating mode 2 ms 750 mm Operating mode 8 ms 1,100 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 130 mm Sensing ranges with GLL170T Operating mode 50 µs 100 mm Operating mode 250 µs 180 mm
