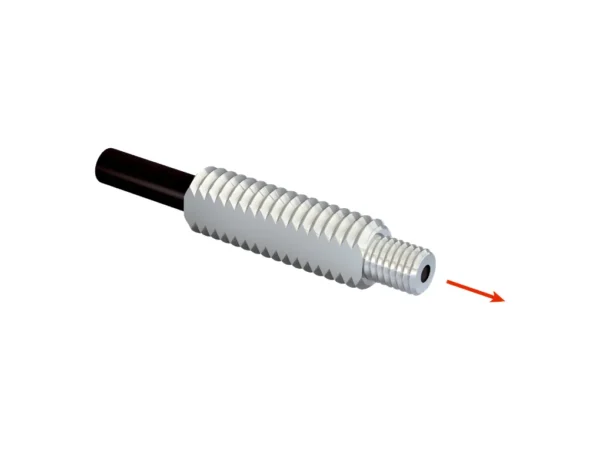

Home Fiber Optik Sensörler LL3-TR01 LIGHT GUIDE – 5308052 🔍 LL3-TR01 LIGHT GUIDE – 5308052 ✉ Teklif Al Teklif Al Stok kodu: 5308052 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Copper-zinc alloy (CuZn) Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Thread diameter (housing) M4 Fiber-optic head design Threaded sleeve Fiber arrangement Multi-fiber – fiber bundle Core structure 16 x Ø 0,265 mm Multi-fiber – fiber bundle Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Application High flexible (static), Robotics (dynamic flexible) Diameter/thread size from 2 mm taper ≥ 2.6 mm Length of taper ≥ 3 mm Highly flexible/elastic fibers (bend radius 1–4 mm) Yes Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimal object diameter 0.3 mm Included with delivery Mounting, 4 x M3 hexagon nut, 4 x washer, FC fiber cutter (5304141) Compatibility tip adapters Yes Special features Flexible fiber-optic cable, standard, large sensing range Mechanics/electronics Bend radius, fibre-optic cable 4 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 320 mm Operating mode 70 µs 955 mm Operating mode 250 µs 1,505 mm Operating mode 500 µs 1,835 mm Operating mode 1 ms 2,055 mm Operating mode 2 ms 2,880 mm Operating mode 8 ms 3,600 mm Sensing ranges with WLL180T Operating mode 16 µs 200 mm Operating mode 70 µs 600 mm Operating mode 250 µs 1,000 mm Operating mode 2 ms 2,400 mm Operating mode 8 ms 4,000 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 470 mm Sensing ranges with GLL170T Operating mode 50 µs 380 mm Operating mode 250 µs 680 mm İlgili ürünler LL3-LM361250 OPTICAL FIBER L=1250MM – 2073495SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git ControlNet Fiber Ring Ex Long Repeater – 1786-RPFRXLALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git Networks and Communication Products, ControlNet Medium-distance Fiber Module – 1786-RPFMALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM31450 OPTICAL FIBER L=450MM – 2073484SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Copper-zinc alloy (CuZn) Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Thread diameter (housing) M4 Fiber-optic head design Threaded sleeve Fiber arrangement Multi-fiber – fiber bundle Core structure 16 x Ø 0,265 mm Multi-fiber – fiber bundle Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Application High flexible (static), Robotics (dynamic flexible) Diameter/thread size from 2 mm taper ≥ 2.6 mm Length of taper ≥ 3 mm Highly flexible/elastic fibers (bend radius 1–4 mm) Yes Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimal object diameter 0.3 mm Included with delivery Mounting, 4 x M3 hexagon nut, 4 x washer, FC fiber cutter (5304141) Compatibility tip adapters Yes Special features Flexible fiber-optic cable, standard, large sensing range Mechanics/electronics Bend radius, fibre-optic cable 4 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 320 mm Operating mode 70 µs 955 mm Operating mode 250 µs 1,505 mm Operating mode 500 µs 1,835 mm Operating mode 1 ms 2,055 mm Operating mode 2 ms 2,880 mm Operating mode 8 ms 3,600 mm Sensing ranges with WLL180T Operating mode 16 µs 200 mm Operating mode 70 µs 600 mm Operating mode 250 µs 1,000 mm Operating mode 2 ms 2,400 mm Operating mode 8 ms 4,000 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 470 mm Sensing ranges with GLL170T Operating mode 50 µs 380 mm Operating mode 250 µs 680 mm
