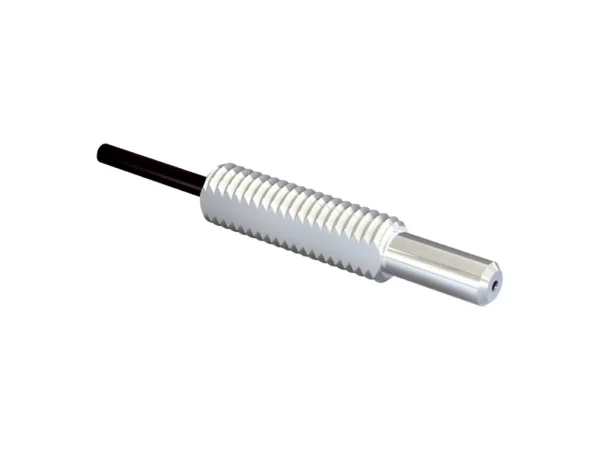

Home Fiber Optik Sensörler LL3-TM02 LIGHT GUIDE – 5308069 🔍 LL3-TM02 LIGHT GUIDE – 5308069 ✉ Teklif Al Teklif Al Stok kodu: 5308069 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 1 mm Fiber-optic cable cuttable ✔ Thread diameter (housing) M3 Fiber-optic head design Threaded sleeve Fiber arrangement Monofiber Core structure Ø 0,5 mm Monofiber Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Diameter/thread size from 2 mm taper ≥ 2 mm Length of taper ≥ 5 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required Yes Angle of dispersion 60° Integrated lens No Minimal object diameter 0.1 mm Included with delivery Mounting, 4 x M3 hexagon nut, 4 x washer, adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter (5304141) Compatibility tip adapters No Special features Compact end sleeve Mechanics/electronics Bend radius, fibre-optic cable 15 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 100 mm Operating mode 70 µs 290 mm Operating mode 250 µs 465 mm Operating mode 500 µs 600 mm Operating mode 1 ms 680 mm Operating mode 2 ms 965 mm Operating mode 8 ms 1,540 mm Sensing ranges with WLL180T Operating mode 16 µs 55 mm Operating mode 70 µs 175 mm Operating mode 250 µs 300 mm Operating mode 2 ms 700 mm Operating mode 8 ms 1,100 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 150 mm Sensing ranges with GLL170T Operating mode 50 µs 140 mm Operating mode 250 µs 230 mm İlgili ürünler LL3-LM32450 OPTICAL FIBER L=450MM – 2073499SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LT312200 OPTICAL FIBER L=2200MM – 2073487SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM31150 OPTICAL FIBER L=150MM – 2073483SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM32750 OPTICAL FIBER L=750MM – 2073500SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 1 mm Fiber-optic cable cuttable ✔ Thread diameter (housing) M3 Fiber-optic head design Threaded sleeve Fiber arrangement Monofiber Core structure Ø 0,5 mm Monofiber Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Diameter/thread size from 2 mm taper ≥ 2 mm Length of taper ≥ 5 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required Yes Angle of dispersion 60° Integrated lens No Minimal object diameter 0.1 mm Included with delivery Mounting, 4 x M3 hexagon nut, 4 x washer, adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter (5304141) Compatibility tip adapters No Special features Compact end sleeve Mechanics/electronics Bend radius, fibre-optic cable 15 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 100 mm Operating mode 70 µs 290 mm Operating mode 250 µs 465 mm Operating mode 500 µs 600 mm Operating mode 1 ms 680 mm Operating mode 2 ms 965 mm Operating mode 8 ms 1,540 mm Sensing ranges with WLL180T Operating mode 16 µs 55 mm Operating mode 70 µs 175 mm Operating mode 250 µs 300 mm Operating mode 2 ms 700 mm Operating mode 8 ms 1,100 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 150 mm Sensing ranges with GLL170T Operating mode 50 µs 140 mm Operating mode 250 µs 230 mm
