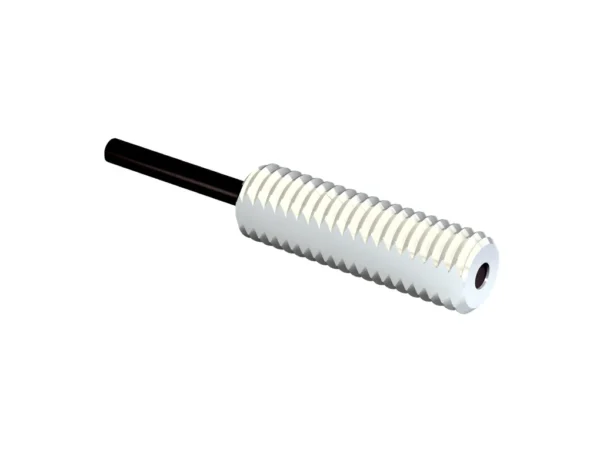

Home Fiber Optik Sensörler LL3-TM01 LIGHT GUIDE – 5308068 🔍 LL3-TM01 LIGHT GUIDE – 5308068 ✉ Teklif Al Teklif Al Stok kodu: 5308068 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 1.3 mm Fiber-optic cable cuttable ✔ Thread diameter (housing) M3 Fiber-optic head design Threaded sleeve Fiber arrangement Monofiber Core structure Ø 1,0 mm Monofiber Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required Yes Angle of dispersion 60° Integrated lens No Minimal object diameter 0.2 mm Included with delivery Mounting, 4 x M3 hexagon nut, 4 x washer, adapter sleeves, BF-WLL160-13 (1.3 mm) adapter sleeves, FC fiber cutter (5304141) Compatibility tip adapters No Special features Large sensing range Mechanics/electronics Bend radius, fibre-optic cable 25 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 325 mm Operating mode 70 µs 975 mm Operating mode 250 µs 1,455 mm Operating mode 500 µs 1,960 mm Operating mode 1 ms 2,215 mm Operating mode 2 ms 2,780 mm Operating mode 8 ms 3,600 mm Sensing ranges with WLL180T Operating mode 16 µs 220 mm Operating mode 70 µs 680 mm Operating mode 250 µs 1,200 mm Operating mode 2 ms 2,500 mm Operating mode 8 ms 4,000 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 550 mm Sensing ranges with GLL170T Operating mode 50 µs 550 mm Operating mode 250 µs 890 mm İlgili ürünler LL3-LM37450 OPTICAL FIBER L=450MM – 2073497SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM31450 OPTICAL FIBER L=450MM – 2073484SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM32750 OPTICAL FIBER L=750MM – 2073500SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM36450 OPTICAL FIBER L=450MM – 2073492SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 1.3 mm Fiber-optic cable cuttable ✔ Thread diameter (housing) M3 Fiber-optic head design Threaded sleeve Fiber arrangement Monofiber Core structure Ø 1,0 mm Monofiber Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required Yes Angle of dispersion 60° Integrated lens No Minimal object diameter 0.2 mm Included with delivery Mounting, 4 x M3 hexagon nut, 4 x washer, adapter sleeves, BF-WLL160-13 (1.3 mm) adapter sleeves, FC fiber cutter (5304141) Compatibility tip adapters No Special features Large sensing range Mechanics/electronics Bend radius, fibre-optic cable 25 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 325 mm Operating mode 70 µs 975 mm Operating mode 250 µs 1,455 mm Operating mode 500 µs 1,960 mm Operating mode 1 ms 2,215 mm Operating mode 2 ms 2,780 mm Operating mode 8 ms 3,600 mm Sensing ranges with WLL180T Operating mode 16 µs 220 mm Operating mode 70 µs 680 mm Operating mode 250 µs 1,200 mm Operating mode 2 ms 2,500 mm Operating mode 8 ms 4,000 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 550 mm Sensing ranges with GLL170T Operating mode 50 µs 550 mm Operating mode 250 µs 890 mm
