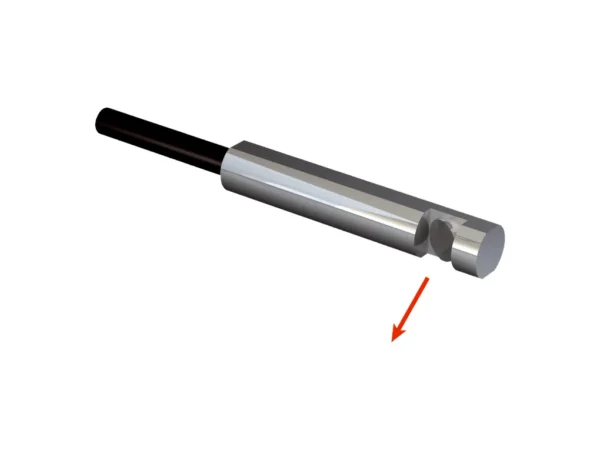

Home Fiber Optik Sensörler LL3-TK16 LIGHT GUIDE – 5313038 🔍 LL3-TK16 LIGHT GUIDE – 5313038 ✉ Teklif Al Teklif Al Stok kodu: 5313038 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Fiber-optic head design 90° deflection Fiber arrangement Monofiber Core structure Ø 1,0 mm Monofiber Angle of dispersion < 60° Yes Compatibility with infrared light (1,450 nm) No Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 10.85° Integrated lens Yes Minimal object diameter 0.2 mm Included with delivery Mounting, 2 x terminal, FC fiber cutter (5304141), protective cladding for fiber head Compatibility tip adapters No Special features 90° deflection integrated, maximum sensing range Mechanics/electronics Bend radius, fibre-optic cable 25 mm Ambient operating temperature –40 °C … +100 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 320 mm Operating mode 70 µs 1,005 mm Operating mode 250 µs 1,595 mm Operating mode 500 µs 2,090 mm Operating mode 1 ms 2,350 mm Operating mode 2 ms 3,055 mm Operating mode 8 ms 3,600 mm Sensing ranges with WLL180T Operating mode 16 µs 180 mm Operating mode 70 µs 600 mm Operating mode 250 µs 1,100 mm Operating mode 2 ms 2,500 mm Operating mode 8 ms 3,300 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 590 mm Sensing ranges with GLL170T Operating mode 50 µs 530 mm Operating mode 250 µs 790 mm İlgili ürünler LL3-LM36150 OPTICAL FIBER L=150MM – 2073491SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM32450 OPTICAL FIBER L=450MM – 2073499SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git SynchLink Fiber 4 Port Splitter Block – 1751-SL4SPALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM32750 OPTICAL FIBER L=750MM – 2073500SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Fiber-optic head design 90° deflection Fiber arrangement Monofiber Core structure Ø 1,0 mm Monofiber Angle of dispersion < 60° Yes Compatibility with infrared light (1,450 nm) No Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 10.85° Integrated lens Yes Minimal object diameter 0.2 mm Included with delivery Mounting, 2 x terminal, FC fiber cutter (5304141), protective cladding for fiber head Compatibility tip adapters No Special features 90° deflection integrated, maximum sensing range Mechanics/electronics Bend radius, fibre-optic cable 25 mm Ambient operating temperature –40 °C … +100 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 320 mm Operating mode 70 µs 1,005 mm Operating mode 250 µs 1,595 mm Operating mode 500 µs 2,090 mm Operating mode 1 ms 2,350 mm Operating mode 2 ms 3,055 mm Operating mode 8 ms 3,600 mm Sensing ranges with WLL180T Operating mode 16 µs 180 mm Operating mode 70 µs 600 mm Operating mode 250 µs 1,100 mm Operating mode 2 ms 2,500 mm Operating mode 8 ms 3,300 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 590 mm Sensing ranges with GLL170T Operating mode 50 µs 530 mm Operating mode 250 µs 790 mm
