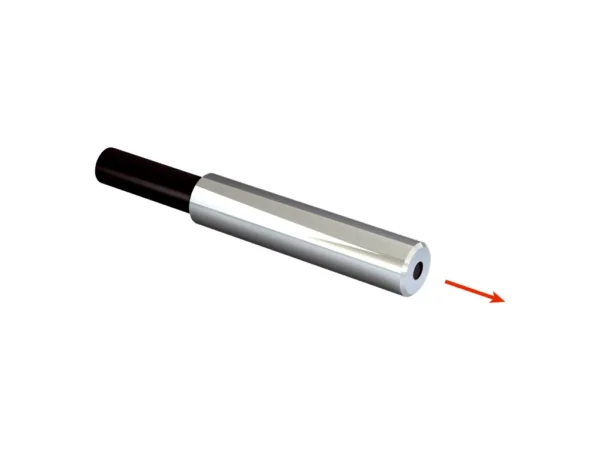

Home Fiber Optik Sensörler LL3-TK05 LIGHT GUIDE – 5313034 🔍 LL3-TK05 LIGHT GUIDE – 5313034 ✉ Teklif Al Teklif Al Stok kodu: 5313034 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Smooth sleeve diameter (greatest diameter) 3 mm Fiber-optic head design Smooth sleeve Fiber arrangement Monofiber Core structure Ø 1,0 mm Monofiber Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Application High flexible (static) Highly flexible/elastic fibers (bend radius 1–4 mm) Yes Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimal object diameter 0.2 mm Included with delivery FC fiber cutter (5304141) Compatibility tip adapters No Special features Highly flexible, smooth sleeve, for moving mechanical components Mechanics/electronics Bend radius, fibre-optic cable 2 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 310 mm Operating mode 70 µs 915 mm Operating mode 250 µs 1,415 mm Operating mode 500 µs 1,770 mm Operating mode 1 ms 2,010 mm Operating mode 2 ms 2,710 mm Operating mode 8 ms 3,600 mm Sensing ranges with WLL180T Operating mode 16 µs 220 mm Operating mode 70 µs 650 mm Operating mode 250 µs 1,200 mm Operating mode 2 ms 2,750 mm Operating mode 8 ms 4,000 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 540 mm Sensing ranges with GLL170T Operating mode 50 µs 450 mm Operating mode 250 µs 760 mm İlgili ürünler LL3-LM37150 OPTICAL FIBER L=150MM – 2073496SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM31150 OPTICAL FIBER L=150MM – 2073483SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM31750 OPTICAL FIBER L=750MM – 2073485SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM32750 OPTICAL FIBER L=750MM – 2073500SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Smooth sleeve diameter (greatest diameter) 3 mm Fiber-optic head design Smooth sleeve Fiber arrangement Monofiber Core structure Ø 1,0 mm Monofiber Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Application High flexible (static) Highly flexible/elastic fibers (bend radius 1–4 mm) Yes Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimal object diameter 0.2 mm Included with delivery FC fiber cutter (5304141) Compatibility tip adapters No Special features Highly flexible, smooth sleeve, for moving mechanical components Mechanics/electronics Bend radius, fibre-optic cable 2 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 310 mm Operating mode 70 µs 915 mm Operating mode 250 µs 1,415 mm Operating mode 500 µs 1,770 mm Operating mode 1 ms 2,010 mm Operating mode 2 ms 2,710 mm Operating mode 8 ms 3,600 mm Sensing ranges with WLL180T Operating mode 16 µs 220 mm Operating mode 70 µs 650 mm Operating mode 250 µs 1,200 mm Operating mode 2 ms 2,750 mm Operating mode 8 ms 4,000 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 540 mm Sensing ranges with GLL170T Operating mode 50 µs 450 mm Operating mode 250 µs 760 mm
