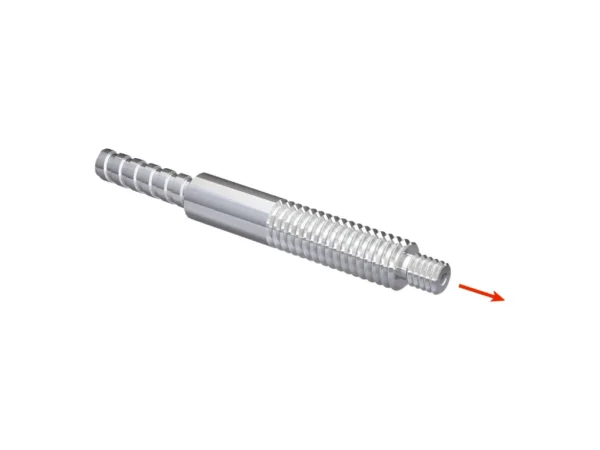

Home Fiber Optik Sensörler LL3-TH13 LIGHT GUIDE HEAT RESIST. – 5325973 🔍 LL3-TH13 LIGHT GUIDE HEAT RESIST. – 5325973 ✉ Teklif Al Teklif Al Stok kodu: 5325973 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 2,000 mm Fiber material Glass Jacket material Stainless steel Fiber head material Copper-zinc alloy (CuZn) Outer diameter, fiber-optic cable connection 2.2 mm Thread diameter (housing) M4 Fiber-optic head design Threaded sleeve Fiber arrangement Monofiber Core structure Ø 0,8 mm Monofiber Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) Yes Application Heat-resistant (≥100°C) Diameter/thread size from 2 mm taper ≥ 2.6 mm Length of taper ≥ 3 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimal object diameter 0.12 mm Included with delivery Mounting, 6 x M4 hexagon nut, 2 x M4 hexagon nut (plastic), 4 x washer, FC fiber cutter (5304141), LL3-TB09 Compatibility tip adapters Yes Mechanics/electronics Bend radius, fibre-optic cable 25 mm Ambient operating temperature –60 °C … +200 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 230 mm Operating mode 70 µs 680 mm Operating mode 250 µs 1,080 mm Operating mode 500 µs 1,330 mm Operating mode 1 ms 1,570 mm Operating mode 2 ms 2,065 mm Operating mode 8 ms 2,990 mm Sensing ranges with WLL180T Operating mode 16 µs 100 mm Operating mode 70 µs 330 mm Operating mode 250 µs 570 mm Operating mode 2 ms 1,100 mm Operating mode 8 ms 1,200 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 270 mm Sensing ranges with GLL170T Operating mode 50 µs 330 mm Operating mode 250 µs 490 mm İlgili ürünler LL3-LM361000 OPTICAL FIBER L=1000MM – 2073494SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM36150 OPTICAL FIBER L=150MM – 2073491SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM31150 OPTICAL FIBER L=150MM – 2073483SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM37150 OPTICAL FIBER L=150MM – 2073496SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 2,000 mm Fiber material Glass Jacket material Stainless steel Fiber head material Copper-zinc alloy (CuZn) Outer diameter, fiber-optic cable connection 2.2 mm Thread diameter (housing) M4 Fiber-optic head design Threaded sleeve Fiber arrangement Monofiber Core structure Ø 0,8 mm Monofiber Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) Yes Application Heat-resistant (≥100°C) Diameter/thread size from 2 mm taper ≥ 2.6 mm Length of taper ≥ 3 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimal object diameter 0.12 mm Included with delivery Mounting, 6 x M4 hexagon nut, 2 x M4 hexagon nut (plastic), 4 x washer, FC fiber cutter (5304141), LL3-TB09 Compatibility tip adapters Yes Mechanics/electronics Bend radius, fibre-optic cable 25 mm Ambient operating temperature –60 °C … +200 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 230 mm Operating mode 70 µs 680 mm Operating mode 250 µs 1,080 mm Operating mode 500 µs 1,330 mm Operating mode 1 ms 1,570 mm Operating mode 2 ms 2,065 mm Operating mode 8 ms 2,990 mm Sensing ranges with WLL180T Operating mode 16 µs 100 mm Operating mode 70 µs 330 mm Operating mode 250 µs 570 mm Operating mode 2 ms 1,100 mm Operating mode 8 ms 1,200 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 270 mm Sensing ranges with GLL170T Operating mode 50 µs 330 mm Operating mode 250 µs 490 mm
