Name: SICK 5325972 | Fiber Optik Sensör | Royal Endüstriyel
Brand: SICK
SKU: 5325972
Price: 4500.00 TRY
Availability: InStock

Tecnichal data

Features

Device type	Fibers
Functional principle	Through-beam system
Functional principle detail	Consisting of a sender and a receiver
For fiber-optic sensor	GLL170(T), WLL180, WLL80
Fiber length	2,000 mm
Fiber material	Glass
Jacket material	Stainless steel
Fiber head material	Copper-zinc alloy (CuZn)
Outer diameter, fiber-optic cable connection	2.2 mm
Thread diameter (housing)	M4
Fiber-optic head design	Threaded sleeve
Fiber arrangement	Monofiber
Core structure	Ø 0,8 mm Monofiber
Angle of dispersion < 60°	No
Compatibility with infrared light (1,450 nm)	Yes
Application	Heat-resistant (≥100°C)
Diameter/thread size from 2 mm taper	≥ 2.6 mm
Length of taper	≥ 3 mm
Highly flexible/elastic fibers (bend radius 1–4 mm)	No
Adapter end sleeves required	No
Angle of dispersion	60°
Integrated lens	No
Minimal object diameter	0.12 mm
Included with delivery	Mounting, 6 x M4 hexagon nut, 2 x M4 hexagon nut (plastic), 4 x washer, FC fiber cutter (5304141), LL3-TB09
Compatibility tip adapters	Yes

Mechanics/electronics

Bend radius, fibre-optic cable	25 mm
Ambient operating temperature	–60 °C … +200 °C

Classifications

Sensing ranges with WLL80

Sensing ranges with WLL180T

Operating mode 16 µs	100 mm
Operating mode 70 µs	330 mm
Operating mode 250 µs	570 mm
Operating mode 2 ms	1,100 mm
Operating mode 8 ms	1,200 mm
Note	Sensing ranges related to fiber-optic sensors with type of light: visible red light

Sensing ranges with GLL170

Operating mode 250 µs

410 mm

Sensing ranges with GLL170T

Operating mode 50 µs	330 mm
Operating mode 250 µs	490 mm

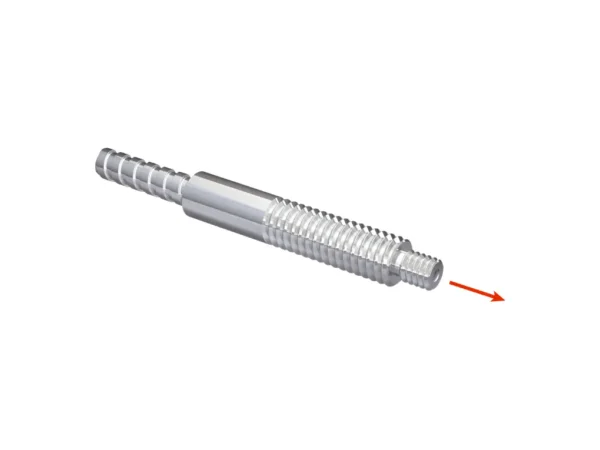

LL3-TH12 LIGHT GUIDE HEAT RESIST. – 5325972
