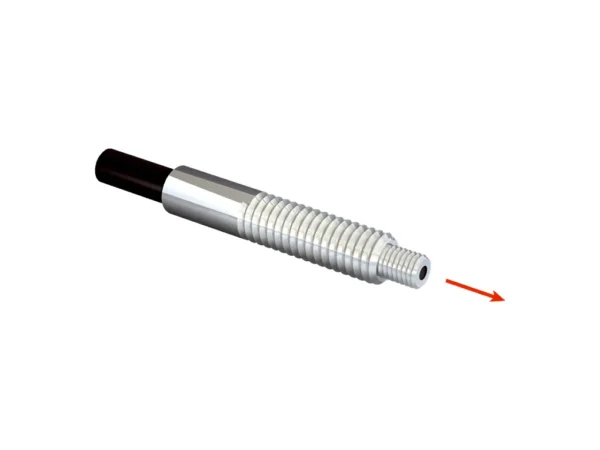

Home Fiber Optik Sensörler LL3-TH11 LIGHT GUIDE HEAT RESIST. – 5325971 🔍 LL3-TH11 LIGHT GUIDE HEAT RESIST. – 5325971 ✉ Teklif Al Teklif Al Stok kodu: 5325971 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 1,000 mm Fiber material Glass Jacket material Silicium (Si) Fiber head material Copper-zinc alloy (CuZn) Outer diameter, fiber-optic cable connection 2.2 mm Thread diameter (housing) M4 Fiber-optic head design Threaded sleeve Fiber arrangement Monofiber Core structure Ø 1,1 mm Monofiber Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) Yes Application Heat-resistant (≥100°C) Diameter/thread size from 2 mm taper ≥ 2.6 mm Length of taper ≥ 3 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimal object diameter 0.04 mm Included with delivery Mounting, 4 x M4 hexagon nut, 2 x washer Compatibility tip adapters Yes Mechanics/electronics Bend radius, fibre-optic cable 25 mm Ambient operating temperature –60 °C … +200 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 275 mm Operating mode 70 µs 825 mm Operating mode 250 µs 1,310 mm Operating mode 500 µs 1,600 mm Operating mode 1 ms 1,600 mm Operating mode 2 ms 1,600 mm Operating mode 8 ms 1,600 mm Sensing ranges with WLL180T Operating mode 16 µs 130 mm Operating mode 70 µs 400 mm Operating mode 250 µs 700 mm Operating mode 2 ms 1,400 mm Operating mode 8 ms 1,500 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 410 mm Sensing ranges with GLL170T Operating mode 50 µs 400 mm Operating mode 250 µs 620 mm İlgili ürünler LL3-LM36450 OPTICAL FIBER L=450MM – 2073492SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM32450 OPTICAL FIBER L=450MM – 2073499SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM31150 OPTICAL FIBER L=150MM – 2073483SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM32750 OPTICAL FIBER L=750MM – 2073500SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 1,000 mm Fiber material Glass Jacket material Silicium (Si) Fiber head material Copper-zinc alloy (CuZn) Outer diameter, fiber-optic cable connection 2.2 mm Thread diameter (housing) M4 Fiber-optic head design Threaded sleeve Fiber arrangement Monofiber Core structure Ø 1,1 mm Monofiber Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) Yes Application Heat-resistant (≥100°C) Diameter/thread size from 2 mm taper ≥ 2.6 mm Length of taper ≥ 3 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimal object diameter 0.04 mm Included with delivery Mounting, 4 x M4 hexagon nut, 2 x washer Compatibility tip adapters Yes Mechanics/electronics Bend radius, fibre-optic cable 25 mm Ambient operating temperature –60 °C … +200 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 275 mm Operating mode 70 µs 825 mm Operating mode 250 µs 1,310 mm Operating mode 500 µs 1,600 mm Operating mode 1 ms 1,600 mm Operating mode 2 ms 1,600 mm Operating mode 8 ms 1,600 mm Sensing ranges with WLL180T Operating mode 16 µs 130 mm Operating mode 70 µs 400 mm Operating mode 250 µs 700 mm Operating mode 2 ms 1,400 mm Operating mode 8 ms 1,500 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 410 mm Sensing ranges with GLL170T Operating mode 50 µs 400 mm Operating mode 250 µs 620 mm
