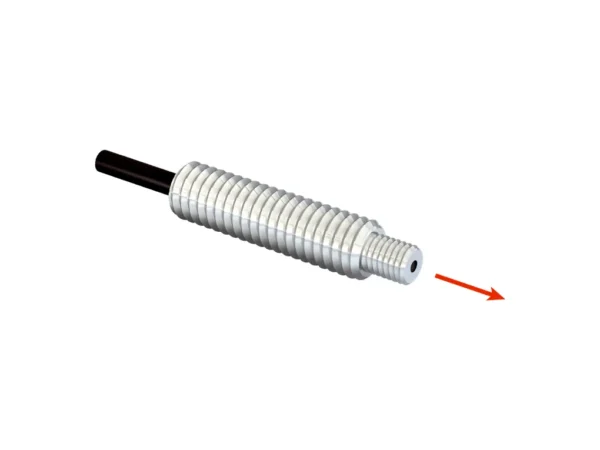

Home Fiber Optik Sensörler LL3-TH10 LIGHT GUIDE HEAT RESIST. – 5325970 🔍 LL3-TH10 LIGHT GUIDE HEAT RESIST. – 5325970 ✉ Teklif Al Teklif Al Stok kodu: 5325970 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 1,000 mm Fiber material Glass Jacket material Polytetrafluorethylen (PTFE) Fiber head material Copper-zinc alloy (CuZn) Outer diameter, fiber-optic cable connection 2.2 mm Thread diameter (housing) M4 Fiber-optic head design Threaded sleeve Fiber arrangement Monofiber Core structure Ø 0,8 mm Monofiber Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) Yes Application Heat-resistant (≥100°C) Diameter/thread size from 2 mm taper ≥ 2.6 mm Length of taper ≥ 3 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimal object diameter 0.02 mm Included with delivery Mounting, 4 x M4 hexagon nut, 2 x washer Compatibility tip adapters Yes Mechanics/electronics Bend radius, fibre-optic cable 10 mm Ambient operating temperature –60 °C … +200 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 115 mm Operating mode 70 µs 345 mm Operating mode 250 µs 550 mm Operating mode 500 µs 680 mm Operating mode 1 ms 800 mm Operating mode 2 ms 1,055 mm Operating mode 8 ms 1,600 mm Sensing ranges with WLL180T Operating mode 16 µs 50 mm Operating mode 70 µs 180 mm Operating mode 250 µs 300 mm Operating mode 2 ms 600 mm Operating mode 8 ms 640 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 190 mm Sensing ranges with GLL170T Operating mode 50 µs 170 mm Operating mode 250 µs 250 mm İlgili ürünler LL3-DL07 – 1094996SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LT312200 OPTICAL FIBER L=2200MM – 2073487SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git SynchLink Fiber 4 Port Splitter Block – 1751-SL4SPALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM35150 OPTICAL FIBER L=150MM – 2073488SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 1,000 mm Fiber material Glass Jacket material Polytetrafluorethylen (PTFE) Fiber head material Copper-zinc alloy (CuZn) Outer diameter, fiber-optic cable connection 2.2 mm Thread diameter (housing) M4 Fiber-optic head design Threaded sleeve Fiber arrangement Monofiber Core structure Ø 0,8 mm Monofiber Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) Yes Application Heat-resistant (≥100°C) Diameter/thread size from 2 mm taper ≥ 2.6 mm Length of taper ≥ 3 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimal object diameter 0.02 mm Included with delivery Mounting, 4 x M4 hexagon nut, 2 x washer Compatibility tip adapters Yes Mechanics/electronics Bend radius, fibre-optic cable 10 mm Ambient operating temperature –60 °C … +200 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 115 mm Operating mode 70 µs 345 mm Operating mode 250 µs 550 mm Operating mode 500 µs 680 mm Operating mode 1 ms 800 mm Operating mode 2 ms 1,055 mm Operating mode 8 ms 1,600 mm Sensing ranges with WLL180T Operating mode 16 µs 50 mm Operating mode 70 µs 180 mm Operating mode 250 µs 300 mm Operating mode 2 ms 600 mm Operating mode 8 ms 640 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 190 mm Sensing ranges with GLL170T Operating mode 50 µs 170 mm Operating mode 250 µs 250 mm
