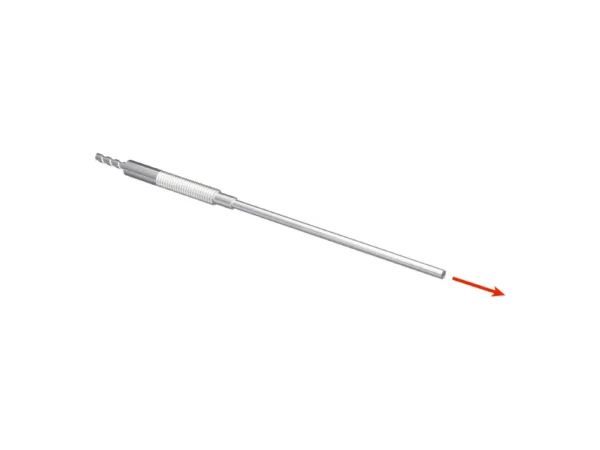

Home Fiber Optik Sensörler LL3-TH09 LIGHT GUIDE HEAT RESIST. – 5325979 🔍 LL3-TH09 LIGHT GUIDE HEAT RESIST. – 5325979 ✉ Teklif Al Teklif Al Stok kodu: 5325979 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 2,000 mm Fiber material Glass Jacket material Stainless steel Fiber head material Copper-zinc alloy (CuZn) Outer diameter, fiber-optic cable connection 2.2 mm Thread diameter (housing) M4 Fiber-optic head design Threaded sleeve Fiber arrangement Monofiber Core structure Ø 1,2 mm Monofiber Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) Yes Application Heat-resistant (≥100°C) Diameter/thread size from 2 mm taper ≥ 2.1 mm Length of taper ≥ 55 mm Diameter of taper ≥ 2.1 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimum bend radius of end sleeve 10 mm Minimal object diameter 0.04 mm Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 25 mm Bend radius, end sleeve 10 mm Ambient operating temperature –30 °C … +350 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 235 mm Operating mode 70 µs 685 mm Operating mode 250 µs 1,070 mm Operating mode 500 µs 1,320 mm Operating mode 1 ms 1,500 mm Operating mode 2 ms 2,045 mm Operating mode 8 ms 2,960 mm Sensing ranges with WLL180T Operating mode 16 µs 140 mm Operating mode 70 µs 460 mm Operating mode 250 µs 700 mm Operating mode 2 ms 1,400 mm Operating mode 8 ms 1,500 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 550 mm Sensing ranges with GLL170T Operating mode 50 µs 450 mm Operating mode 250 µs 610 mm İlgili ürünler Networks and Communication Products, ControlNet Medium-distance Fiber Module – 1786-RPFMALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM31450 OPTICAL FIBER L=450MM – 2073484SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM35450 OPTICAL FIBER L=450MM – 2073489SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git SynchLink Fiber 4 Port Splitter Block – 1751-SL4SPALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 2,000 mm Fiber material Glass Jacket material Stainless steel Fiber head material Copper-zinc alloy (CuZn) Outer diameter, fiber-optic cable connection 2.2 mm Thread diameter (housing) M4 Fiber-optic head design Threaded sleeve Fiber arrangement Monofiber Core structure Ø 1,2 mm Monofiber Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) Yes Application Heat-resistant (≥100°C) Diameter/thread size from 2 mm taper ≥ 2.1 mm Length of taper ≥ 55 mm Diameter of taper ≥ 2.1 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimum bend radius of end sleeve 10 mm Minimal object diameter 0.04 mm Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 25 mm Bend radius, end sleeve 10 mm Ambient operating temperature –30 °C … +350 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 235 mm Operating mode 70 µs 685 mm Operating mode 250 µs 1,070 mm Operating mode 500 µs 1,320 mm Operating mode 1 ms 1,500 mm Operating mode 2 ms 2,045 mm Operating mode 8 ms 2,960 mm Sensing ranges with WLL180T Operating mode 16 µs 140 mm Operating mode 70 µs 460 mm Operating mode 250 µs 700 mm Operating mode 2 ms 1,400 mm Operating mode 8 ms 1,500 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 550 mm Sensing ranges with GLL170T Operating mode 50 µs 450 mm Operating mode 250 µs 610 mm
