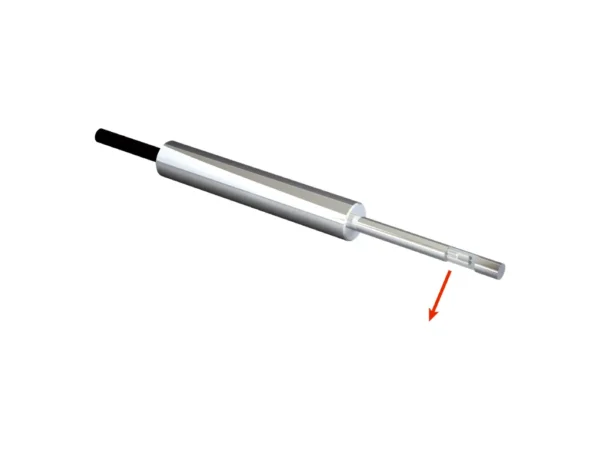

Home Fiber Optik Sensörler LL3-TH06 LIGHT GUIDE HEAT RESIST. – 5325926 🔍 LL3-TH06 LIGHT GUIDE HEAT RESIST. – 5325926 ✉ Teklif Al Teklif Al Stok kodu: 5325926 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 1,000 mm Jacket material Polycarbonat (PC) Outer diameter, fiber-optic cable connection 1 mm Fiber-optic cable cuttable ✔ Smooth sleeve diameter (greatest diameter) 2.5 mm Fiber-optic head design Smooth sleeve, Long end sleeve, 90° deflection Diameter/thread size from 2 mm taper ≥ 1 mm Length of taper ≥ 25 mm Diameter of taper ≥ 1 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required Yes Minimal object diameter 1 mm Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 10 mm Ambient operating temperature –40 °C … +105 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 10 mm Operating mode 70 µs 40 mm Operating mode 250 µs 60 mm Operating mode 500 µs 75 mm Operating mode 1 ms 85 mm Operating mode 2 ms 120 mm Operating mode 8 ms 180 mm Sensing ranges with WLL180T Operating mode 16 µs 6 mm Operating mode 70 µs 19 mm Operating mode 250 µs 38 mm Operating mode 2 ms 74 mm Operating mode 8 ms 130 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 20 mm Sensing ranges with GLL170T Operating mode 50 µs 10 mm Operating mode 250 µs 20 mm İlgili ürünler LL3-LM36450 OPTICAL FIBER L=450MM – 2073492SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM32750 OPTICAL FIBER L=750MM – 2073500SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LT312200 OPTICAL FIBER L=2200MM – 2073487SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git SynchLink Fiber 4 Port Splitter Block – 1751-SL4SPALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 1,000 mm Jacket material Polycarbonat (PC) Outer diameter, fiber-optic cable connection 1 mm Fiber-optic cable cuttable ✔ Smooth sleeve diameter (greatest diameter) 2.5 mm Fiber-optic head design Smooth sleeve, Long end sleeve, 90° deflection Diameter/thread size from 2 mm taper ≥ 1 mm Length of taper ≥ 25 mm Diameter of taper ≥ 1 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required Yes Minimal object diameter 1 mm Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 10 mm Ambient operating temperature –40 °C … +105 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 10 mm Operating mode 70 µs 40 mm Operating mode 250 µs 60 mm Operating mode 500 µs 75 mm Operating mode 1 ms 85 mm Operating mode 2 ms 120 mm Operating mode 8 ms 180 mm Sensing ranges with WLL180T Operating mode 16 µs 6 mm Operating mode 70 µs 19 mm Operating mode 250 µs 38 mm Operating mode 2 ms 74 mm Operating mode 8 ms 130 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 20 mm Sensing ranges with GLL170T Operating mode 50 µs 10 mm Operating mode 250 µs 20 mm
