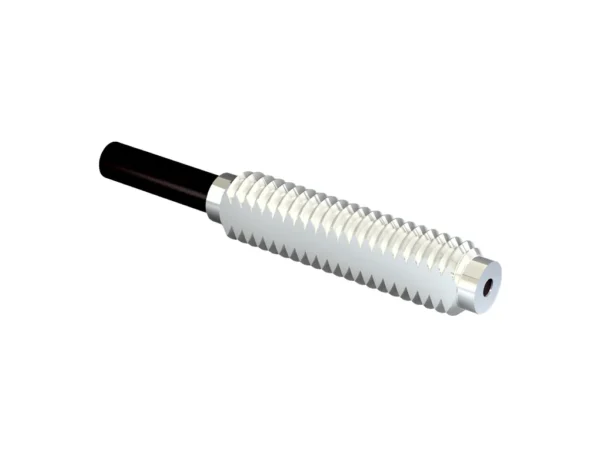

Home Fiber Optik Sensörler LL3-TH02-05 LIGHT GUIDE – 5329394 🔍 LL3-TH02-05 LIGHT GUIDE – 5329394 ✉ Teklif Al Teklif Al Stok kodu: 5329394 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex Fiber length 5,000 mm Jacket material Fluorethylenpropylen (FEP) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Thread diameter (housing) M4 Fiber-optic head design Threaded sleeve Fiber arrangement Monofiber Core structure Ø 1.5 mm Monofiber Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Application Heat-resistant (≥100°C) Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimal object diameter 0.5 mm Included with delivery Mounting, 4 x M4 hexagon nut, 4 x washer, FC fiber cutter (5304141) Compatibility tip adapters No Special features Temperature-resistant up to 180 °C, large sensing range Mechanics/electronics Bend radius, fibre-optic cable 35 mm Ambient operating temperature –40 °C … +180 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL180T Operating mode 16 µs 230 mm Operating mode 70 µs 700 mm Operating mode 250 µs 1,300 mm Operating mode 2 ms 2,700 mm Operating mode 8 ms 4,000 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 368 mm Sensing ranges with GLL170T Operating mode 50 µs 540 mm Operating mode 250 µs 850 mm İlgili ürünler LL3-LM32450 OPTICAL FIBER L=450MM – 2073499SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git Photo Sensor, Background Suppression, Infrared LED, Complementary Light or Dark Operate, Auto PNP or NPN Output with IO-Link, No Physical Adjustment, 400 mm Sensing Range, 4-pin DC Micro(M12) on a 150 mm (6 in.) Pigtail – 42AF-B1MAB1-F4ALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git Networks and Communication Products, ControlNet Medium-distance Fiber Module – 1786-RPFMALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LT312200 OPTICAL FIBER L=2200MM – 2073487SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex Fiber length 5,000 mm Jacket material Fluorethylenpropylen (FEP) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Thread diameter (housing) M4 Fiber-optic head design Threaded sleeve Fiber arrangement Monofiber Core structure Ø 1.5 mm Monofiber Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Application Heat-resistant (≥100°C) Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimal object diameter 0.5 mm Included with delivery Mounting, 4 x M4 hexagon nut, 4 x washer, FC fiber cutter (5304141) Compatibility tip adapters No Special features Temperature-resistant up to 180 °C, large sensing range Mechanics/electronics Bend radius, fibre-optic cable 35 mm Ambient operating temperature –40 °C … +180 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL180T Operating mode 16 µs 230 mm Operating mode 70 µs 700 mm Operating mode 250 µs 1,300 mm Operating mode 2 ms 2,700 mm Operating mode 8 ms 4,000 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 368 mm Sensing ranges with GLL170T Operating mode 50 µs 540 mm Operating mode 250 µs 850 mm
