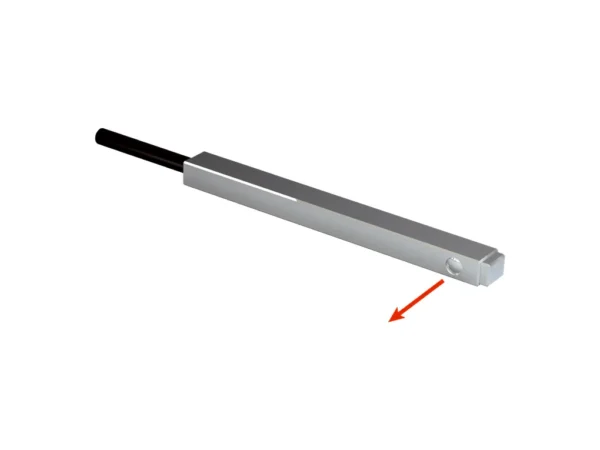

Home Fiber Optik Sensörler LL3-TG04 LIGHT GUIDE – 5324499 🔍 LL3-TG04 LIGHT GUIDE – 5324499 ✉ Teklif Al Teklif Al Stok kodu: 5324499 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Outer diameter, fiber-optic cable connection 1 mm Fiber-optic cable cuttable ✔ Fiber-optic head design 90° deflection Fiber arrangement Monofiber Core structure Ø 0,5 mm Monofiber Angle of dispersion < 60° Yes Compatibility with infrared light (1,450 nm) No Application Lcd / clear material / semiconductor, high flexible (static) Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required Yes Angle of dispersion 2.29° Integrated lens Yes Minimal object diameter 0.02 mm Included with delivery Adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter (5304141) Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 1 mm Ambient operating temperature –40 °C … +60 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 155 mm Operating mode 70 µs 475 mm Operating mode 250 µs 745 mm Operating mode 500 µs 895 mm Operating mode 1 ms 1,000 mm Operating mode 2 ms 1,420 mm Operating mode 8 ms 2,060 mm Sensing ranges with WLL180T Operating mode 16 µs 100 mm Operating mode 70 µs 290 mm Operating mode 250 µs 500 mm Operating mode 2 ms 1,000 mm Operating mode 8 ms 1,100 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 400 mm Sensing ranges with GLL170T Operating mode 50 µs 280 mm Operating mode 250 µs 430 mm İlgili ürünler ControlNet Fiber Ring Ex Long Repeater – 1786-RPFRXLALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM35750 OPTICAL FIBER L=750MM – 2073490SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-DL07 – 1094996SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM361250 OPTICAL FIBER L=1250MM – 2073495SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Outer diameter, fiber-optic cable connection 1 mm Fiber-optic cable cuttable ✔ Fiber-optic head design 90° deflection Fiber arrangement Monofiber Core structure Ø 0,5 mm Monofiber Angle of dispersion < 60° Yes Compatibility with infrared light (1,450 nm) No Application Lcd / clear material / semiconductor, high flexible (static) Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required Yes Angle of dispersion 2.29° Integrated lens Yes Minimal object diameter 0.02 mm Included with delivery Adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter (5304141) Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 1 mm Ambient operating temperature –40 °C … +60 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 155 mm Operating mode 70 µs 475 mm Operating mode 250 µs 745 mm Operating mode 500 µs 895 mm Operating mode 1 ms 1,000 mm Operating mode 2 ms 1,420 mm Operating mode 8 ms 2,060 mm Sensing ranges with WLL180T Operating mode 16 µs 100 mm Operating mode 70 µs 290 mm Operating mode 250 µs 500 mm Operating mode 2 ms 1,000 mm Operating mode 8 ms 1,100 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 400 mm Sensing ranges with GLL170T Operating mode 50 µs 280 mm Operating mode 250 µs 430 mm
