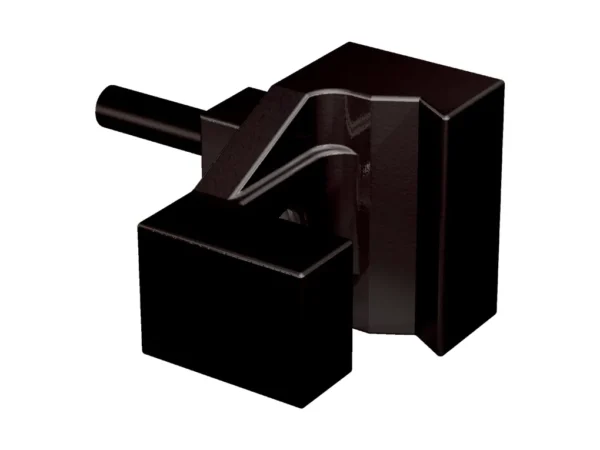

Home Fiber Optik Sensörler LL3-TF01 LIGHT GUIDE LEVEL DETECT. – 5324242 🔍 LL3-TF01 LIGHT GUIDE LEVEL DETECT. – 5324242 ✉ Teklif Al Teklif Al Stok kodu: 5324242 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Polyamid (PA) Outer diameter, fiber-optic cable connection 1 mm Fiber-optic cable cuttable ✔ Fiber-optic head design Special design Fiber arrangement Multi-fiber, unsorted Core structure Multi-fiber, unsorted Compatibility with infrared light (1,450 nm) No Application Liquid Level (Pipe-mounting) Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required Yes Integrated lens Yes Included with delivery Mounting, 2 x cable tie, 2 x hose (8 mm), adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter (5304141) Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 20 mm Ambient operating temperature –20 °C … +60 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 İlgili ürünler LL3-LM36750 OPTICAL FIBER L=750MM – 2073493SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM37450 OPTICAL FIBER L=450MM – 2073497SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git SynchLink Fiber 4 Port Splitter Block – 1751-SL4SPALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LT312200 OPTICAL FIBER L=2200MM – 2073487SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Polyamid (PA) Outer diameter, fiber-optic cable connection 1 mm Fiber-optic cable cuttable ✔ Fiber-optic head design Special design Fiber arrangement Multi-fiber, unsorted Core structure Multi-fiber, unsorted Compatibility with infrared light (1,450 nm) No Application Liquid Level (Pipe-mounting) Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required Yes Integrated lens Yes Included with delivery Mounting, 2 x cable tie, 2 x hose (8 mm), adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter (5304141) Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 20 mm Ambient operating temperature –20 °C … +60 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528
