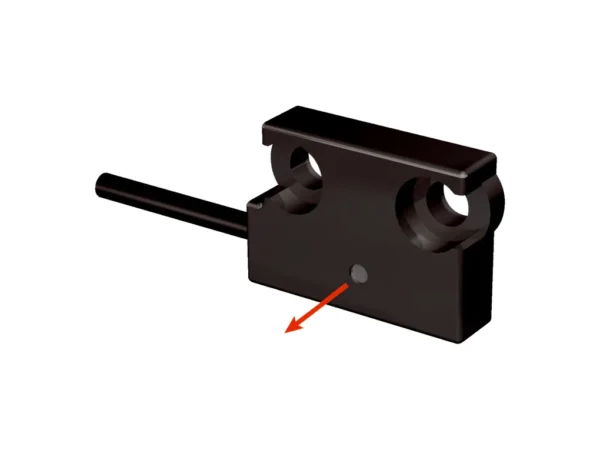

Home Fiber Optik Sensörler LL3-TE05 LIGHT GUIDE FLAT SHAPE – 5325914 🔍 LL3-TE05 LIGHT GUIDE FLAT SHAPE – 5325914 ✉ Teklif Al Teklif Al Stok kodu: 5325914 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Polycarbonat (PC) Outer diameter, fiber-optic cable connection 1.3 mm Fiber-optic cable cuttable ✔ Fiber-optic head design Flat type, 90° deflection Fiber arrangement Multi-fiber – fiber bundle Core structure 7 x Ø 0,25 mm Multi-fiber – fiber bundle Angle of dispersion < 60° Yes Compatibility with infrared light (1,450 nm) No Application High flexible (static) Highly flexible/elastic fibers (bend radius 1–4 mm) Yes Adapter end sleeves required Yes Angle of dispersion 42.61° Integrated lens Yes Minimal object diameter 0.03 mm Included with delivery Mounting, 2 x M2 hexagon nut, 8 x washer, 4 x M2 Phillips-head screw, adapter sleeves, BF-WLL160-13 (1.3 mm) adapter sleeves, FC fiber cutter (5304141) Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 4 mm Ambient operating temperature –40 °C … +60 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 360 mm Operating mode 70 µs 1,080 mm Operating mode 250 µs 1,675 mm Operating mode 500 µs 2,050 mm Operating mode 1 ms 2,310 mm Operating mode 2 ms 3,205 mm Operating mode 8 ms 3,600 mm Sensing ranges with WLL180T Operating mode 16 µs 150 mm Operating mode 70 µs 460 mm Operating mode 250 µs 840 mm Operating mode 2 ms 1,680 mm Operating mode 8 ms 1,780 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 570 mm Sensing ranges with GLL170T Operating mode 50 µs 450 mm Operating mode 250 µs 720 mm İlgili ürünler LL3-LM361000 OPTICAL FIBER L=1000MM – 2073494SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM37750 OPTICAL FIBER L=750MM – 2073498SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LT312200 OPTICAL FIBER L=2200MM – 2073487SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM37150 OPTICAL FIBER L=150MM – 2073496SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Polycarbonat (PC) Outer diameter, fiber-optic cable connection 1.3 mm Fiber-optic cable cuttable ✔ Fiber-optic head design Flat type, 90° deflection Fiber arrangement Multi-fiber – fiber bundle Core structure 7 x Ø 0,25 mm Multi-fiber – fiber bundle Angle of dispersion < 60° Yes Compatibility with infrared light (1,450 nm) No Application High flexible (static) Highly flexible/elastic fibers (bend radius 1–4 mm) Yes Adapter end sleeves required Yes Angle of dispersion 42.61° Integrated lens Yes Minimal object diameter 0.03 mm Included with delivery Mounting, 2 x M2 hexagon nut, 8 x washer, 4 x M2 Phillips-head screw, adapter sleeves, BF-WLL160-13 (1.3 mm) adapter sleeves, FC fiber cutter (5304141) Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 4 mm Ambient operating temperature –40 °C … +60 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 360 mm Operating mode 70 µs 1,080 mm Operating mode 250 µs 1,675 mm Operating mode 500 µs 2,050 mm Operating mode 1 ms 2,310 mm Operating mode 2 ms 3,205 mm Operating mode 8 ms 3,600 mm Sensing ranges with WLL180T Operating mode 16 µs 150 mm Operating mode 70 µs 460 mm Operating mode 250 µs 840 mm Operating mode 2 ms 1,680 mm Operating mode 8 ms 1,780 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 570 mm Sensing ranges with GLL170T Operating mode 50 µs 450 mm Operating mode 250 µs 720 mm
