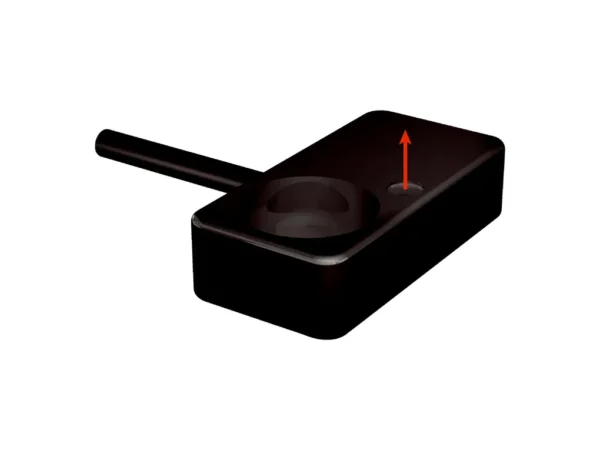

Home Fiber Optik Sensörler LL3-TE03 LIGHT GUIDE FLAT SHAPE – 5325908 🔍 LL3-TE03 LIGHT GUIDE FLAT SHAPE – 5325908 ✉ Teklif Al Teklif Al Stok kodu: 5325908 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Polycarbonat (PC) Outer diameter, fiber-optic cable connection 1.3 mm Fiber-optic cable cuttable ✔ Fiber-optic head design Flat type, 90° deflection Fiber arrangement Monofiber Core structure 151 x Ø 0,075 mm Monofiber Angle of dispersion < 60° Yes Compatibility with infrared light (1,450 nm) No Application High flexible (static) Highly flexible/elastic fibers (bend radius 1–4 mm) Yes Adapter end sleeves required Yes Angle of dispersion 42.61° Integrated lens Yes Minimal object diameter 0.08 mm Included with delivery Adapter sleeves, BF-WLL160-13 (1.3 mm) adapter sleeves, FC fiber cutter (5304141) Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 1 mm Ambient operating temperature –40 °C … +60 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 495 mm Operating mode 70 µs 1,480 mm Operating mode 250 µs 2,260 mm Operating mode 500 µs 2,720 mm Operating mode 1 ms 3,055 mm Operating mode 2 ms 3,600 mm Operating mode 8 ms 3,600 mm Sensing ranges with WLL180T Operating mode 16 µs 190 mm Operating mode 70 µs 580 mm Operating mode 250 µs 980 mm Operating mode 2 ms 1,970 mm Operating mode 8 ms 2,100 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 760 mm Sensing ranges with GLL170T Operating mode 50 µs 600 mm Operating mode 250 µs 1,010 mm İlgili ürünler LL3-LM32750 OPTICAL FIBER L=750MM – 2073500SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git Networks and Communication Products, ControlNet Medium-distance Fiber Module – 1786-RPFMALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM37750 OPTICAL FIBER L=750MM – 2073498SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM32450 OPTICAL FIBER L=450MM – 2073499SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Polycarbonat (PC) Outer diameter, fiber-optic cable connection 1.3 mm Fiber-optic cable cuttable ✔ Fiber-optic head design Flat type, 90° deflection Fiber arrangement Monofiber Core structure 151 x Ø 0,075 mm Monofiber Angle of dispersion < 60° Yes Compatibility with infrared light (1,450 nm) No Application High flexible (static) Highly flexible/elastic fibers (bend radius 1–4 mm) Yes Adapter end sleeves required Yes Angle of dispersion 42.61° Integrated lens Yes Minimal object diameter 0.08 mm Included with delivery Adapter sleeves, BF-WLL160-13 (1.3 mm) adapter sleeves, FC fiber cutter (5304141) Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 1 mm Ambient operating temperature –40 °C … +60 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 495 mm Operating mode 70 µs 1,480 mm Operating mode 250 µs 2,260 mm Operating mode 500 µs 2,720 mm Operating mode 1 ms 3,055 mm Operating mode 2 ms 3,600 mm Operating mode 8 ms 3,600 mm Sensing ranges with WLL180T Operating mode 16 µs 190 mm Operating mode 70 µs 580 mm Operating mode 250 µs 980 mm Operating mode 2 ms 1,970 mm Operating mode 8 ms 2,100 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 760 mm Sensing ranges with GLL170T Operating mode 50 µs 600 mm Operating mode 250 µs 1,010 mm
